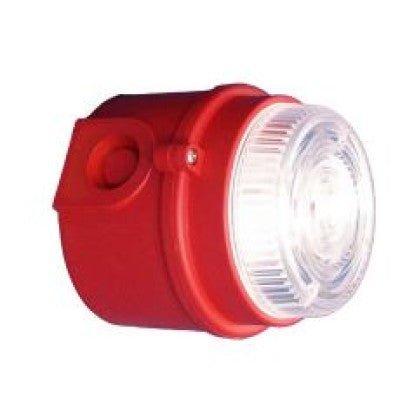

E2S by The Signal Source IS-MB1-R/C ISmB1 Intrinsically Safe LED Beacon RedClear
The E2S IS-mB1 (IS-minialite) is a compact intrinsically safe LED beacon with an array of six high output LEDs, for fire, security and process control signaling in hazardous areas. It carries ATEX, IECEx and FM approvals for Zone 0 and Class I Division 1 applications and must be powered through a certified Zener barrier or galvanic isolator. This version has a red enclosure and a clear lens with white LEDs.
Key Features
- Array of 6 high intensity LEDs with prismatic lens
- Flash modes: double flash at 2 Hz and 1 Hz
- Input overload and reverse current protection
- End of line resistor certified
- FM approved IS Class I Division 1 Groups A, B, C, D; Class I Zone 0 AEx ia IIC T4
Specifications
| Effective intensity |
23 cd (measured ref. I.E.S.) |
| Voltage |
16-28 Vdc via Zener barrier or galvanic isolator |
| Current |
25 mA typical from 24 V supply via 28 V 300 Ohm Zener barrier |
| Barrier limits |
Uo 28 Vdc, Io 660 mA, Po 1.2 W |
| Ingress protection |
IP65 |
| Enclosure |
UL94 V0 & 5VA flame retardant ABS & PC, RAL3000 red |
| Cable entries |
2 x M20 clearance gland knockouts |
| Terminals |
0.5 to 2.5 mm² |
| Operating temperature |
-40 to +60 °C (-40 to +140 °F) |
| Weight |
0.32 kg / 0.71 lb |
