E2S by The Signal Source D2XL1FV725CN1A1R D2xL1F PA Loudspeaker 15W 2570V transformer 111dB 3dB 15w 10

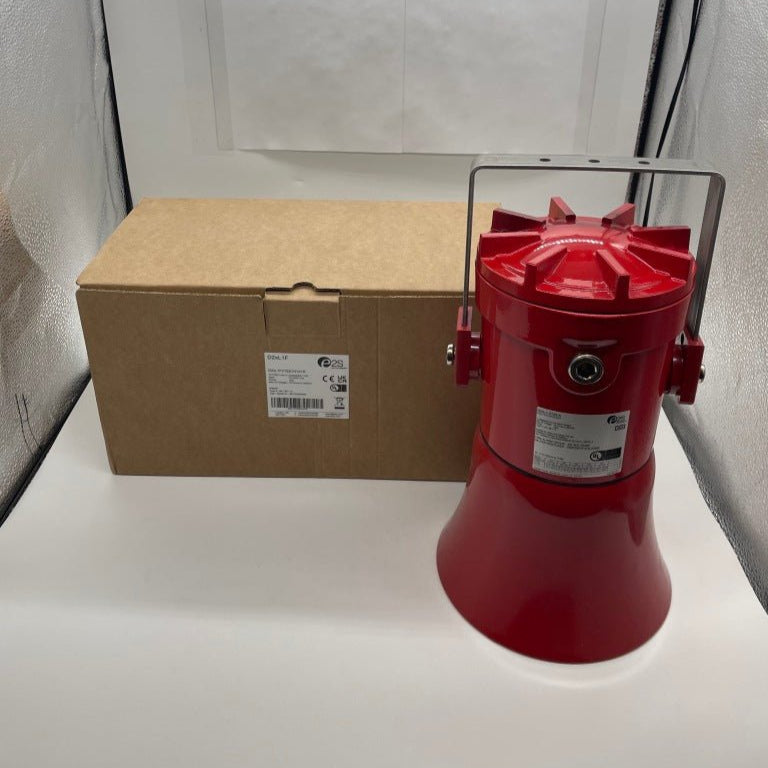

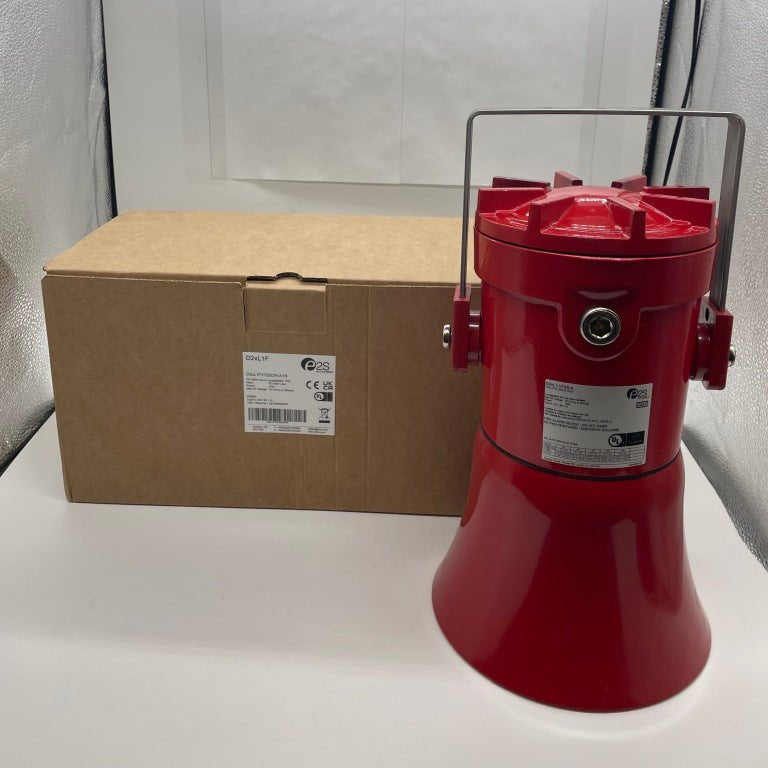

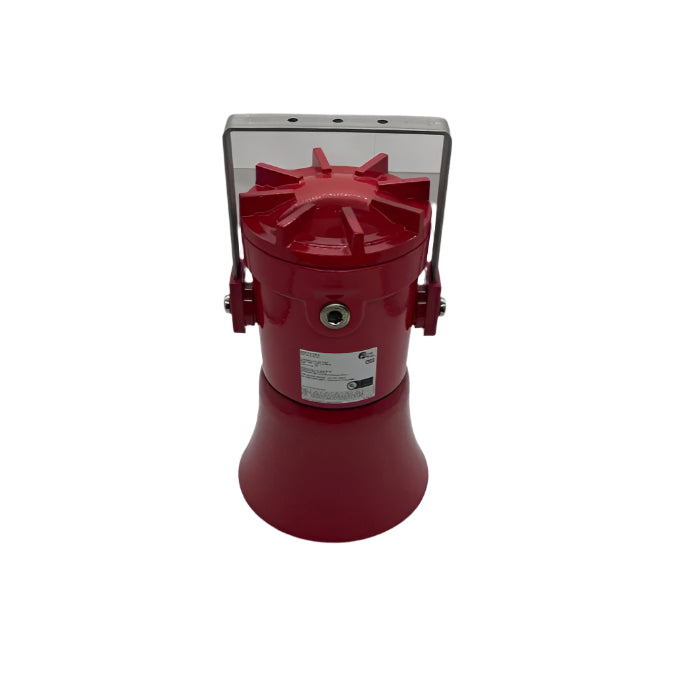

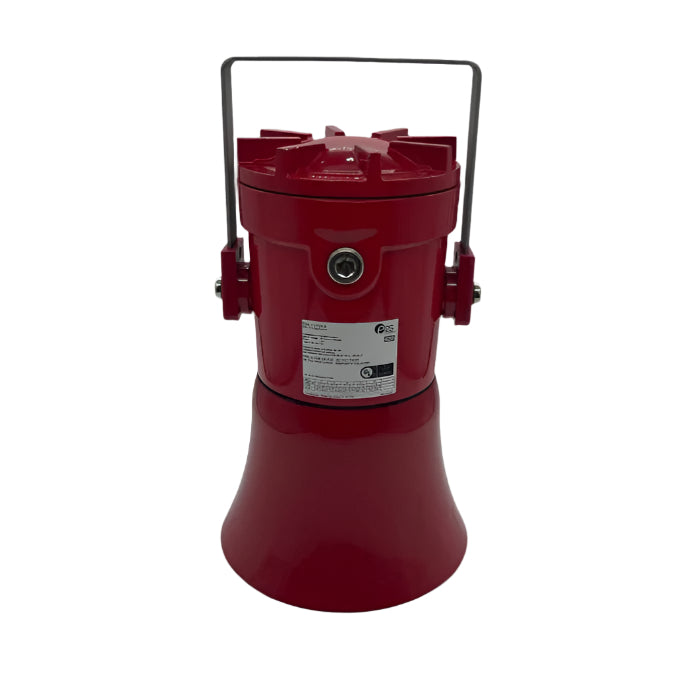

The E2S D2xL1F is a 15 W PA loudspeaker with a re-entrant flare horn in a marine grade aluminium enclosure for Class I/II Division 2 and Zone 2 and 22 hazardous locations. This configuration has the dual 25 V/70 V line transformer, a red enclosure and a 316 stainless steel bracket. It is listed to UL 1480 and CAN/ULC-S541 for fire alarm and signaling systems.
Key Features
- 15 W RMS loudspeaker, sound output up to 120 dB(A)
- 25 V/70 V line transformer with multiple tappings
- Ratchet adjustable 316 stainless steel bracket
- Triple cable entries and duplicated terminals
- UL 1480A, CSA C22.2 No. 205, UL 1480 and CAN/ULC-S541
Specifications
| Rated power |
15 W RMS |
| Sound pressure level |
101 dB ±3 dB @ 1 W/1 m (pink); 113 dB ±3 dB @ 15 W/1 m (rated); 120 dB(A) @ 1 m at 1.3 kHz (max) |
| Line transformer |
25 V/70 V (V725) |
| 25/70 V tappings |
15/7.5/5/4/2 W |
| Frequency range |
400 Hz to 8000 Hz |
| Cable entries (this configuration) |
2 x 3/4" NPT via adaptors, nickel plated brass |
| Terminals |
0.5-2.5 mm² (20-14 AWG), duplicated |
| Enclosure |
Marine grade LM6 aluminium alloy, chromate and powder coated |
| Ingress protection |
IP66/67; Type 4/4X/3R/13 |
| Enclosure colour |
Red |
| Hazardous location rating |
Class I Div 2 Groups A, B, C, D; Class II Div 2 Groups F, G; Zone 2 and 22 |
| Installation temperature |
NEC/CEC: -55 to +80 °C (-67 to +176 °F) |
| Weight |
4.3 kg / 9.5 lb (transformer versions) |
