E2S by The Signal Source D1XL2FV725CN1A1R D1xL2F PA Loudspeaker 25W 2570V transformer 114dB 3dB 25w 10

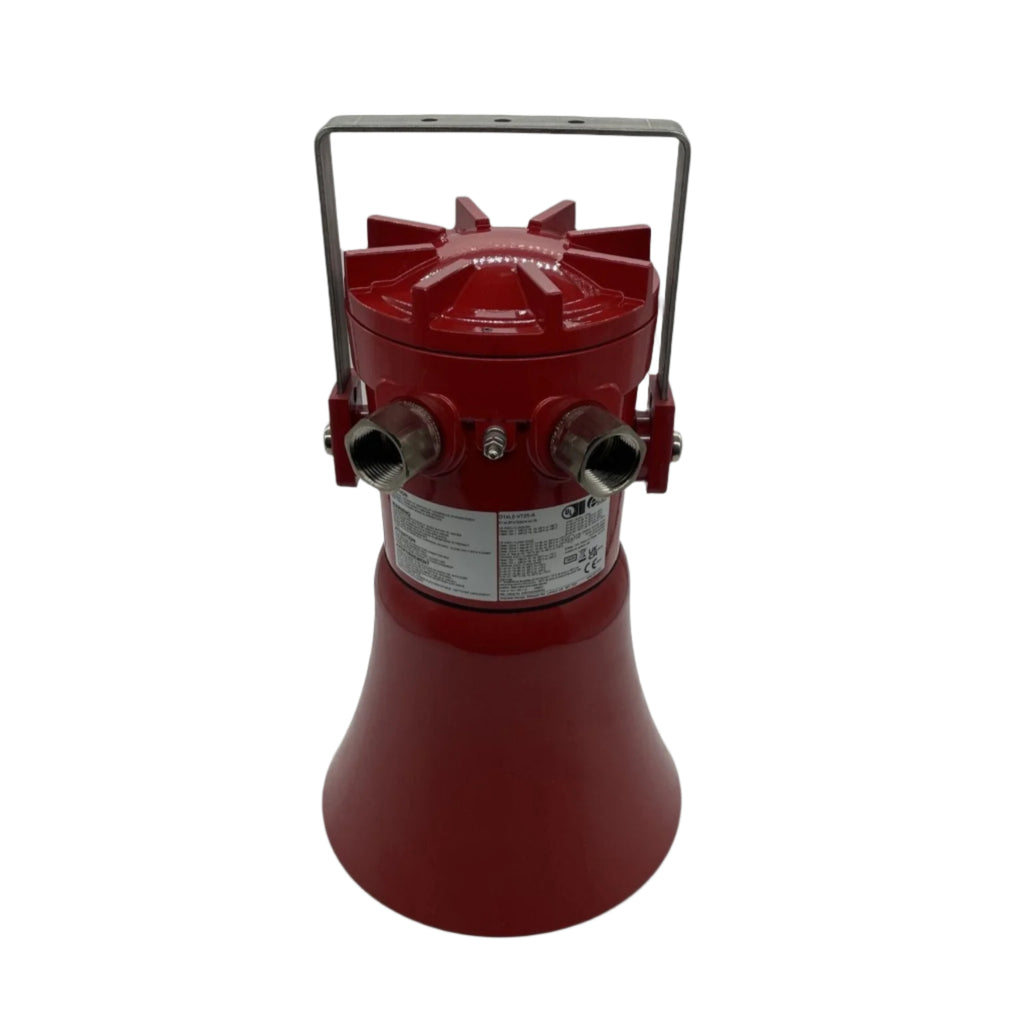

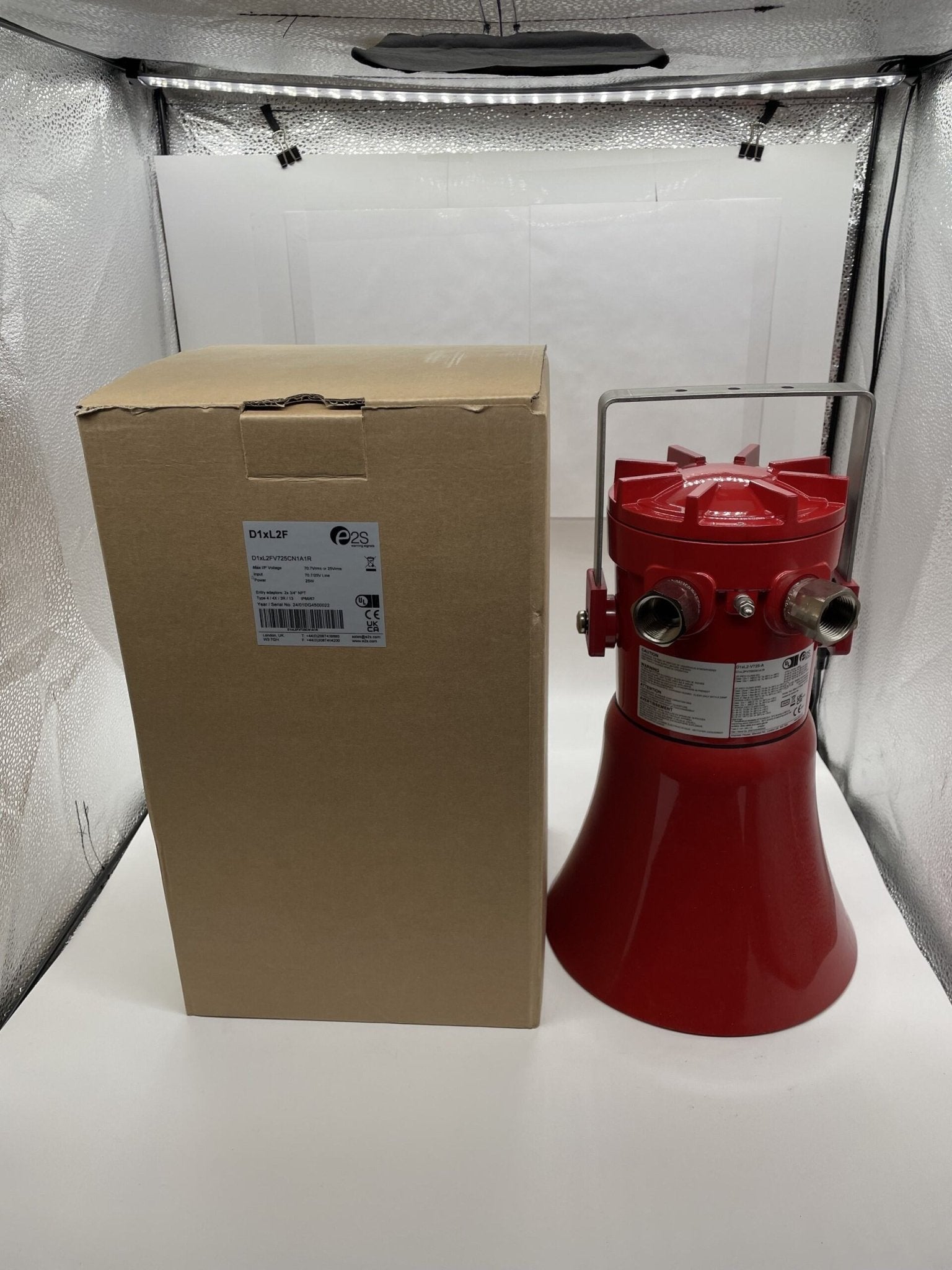

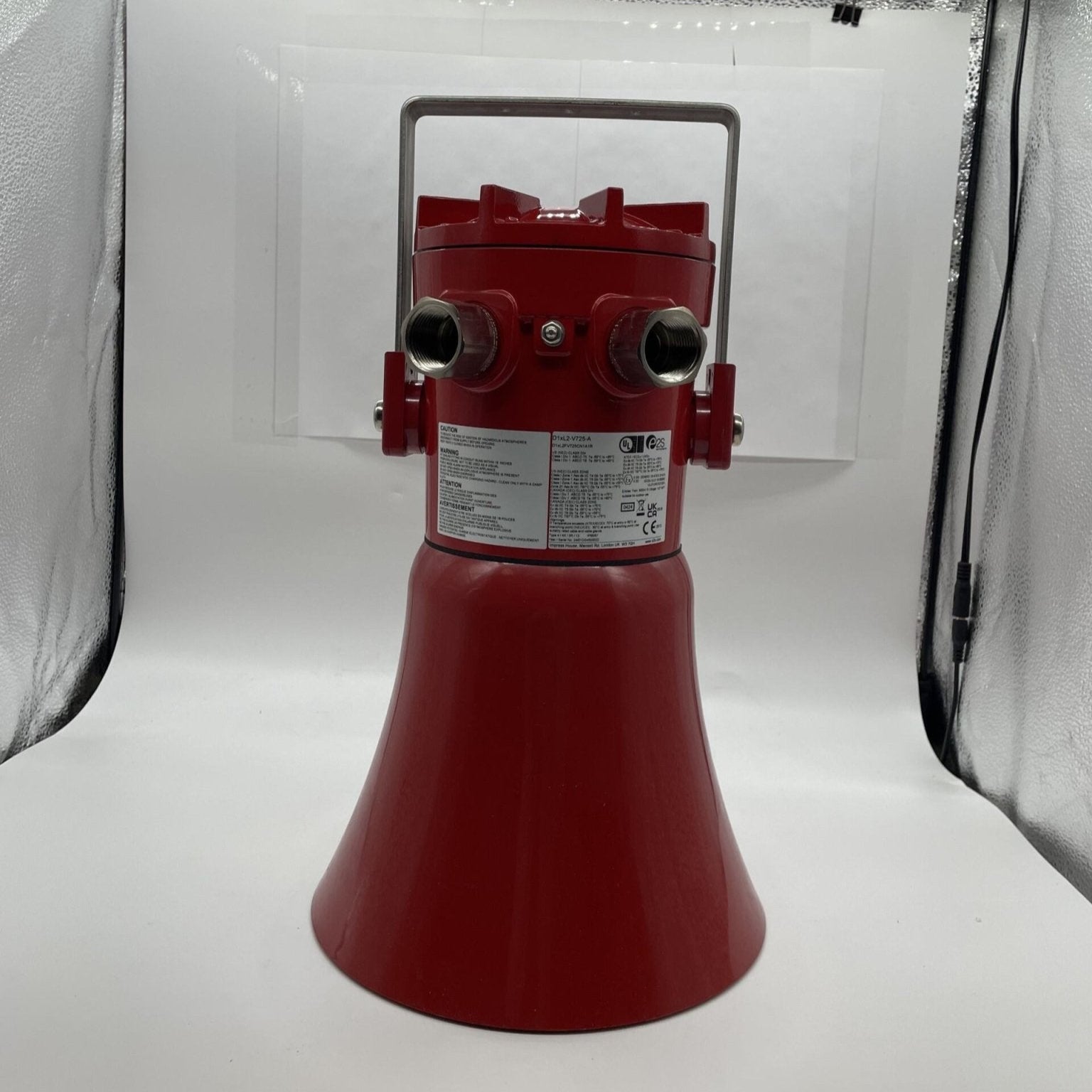

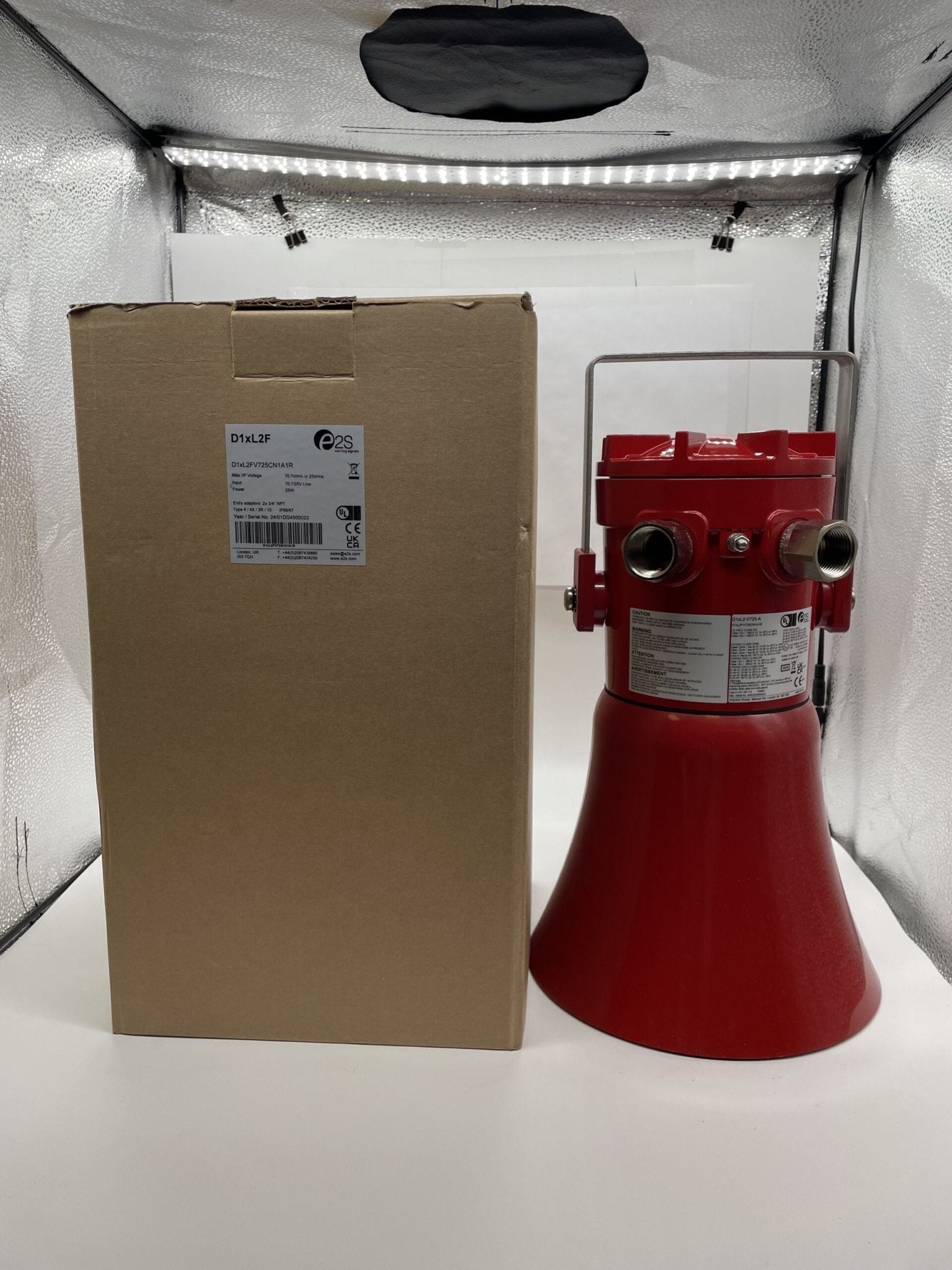

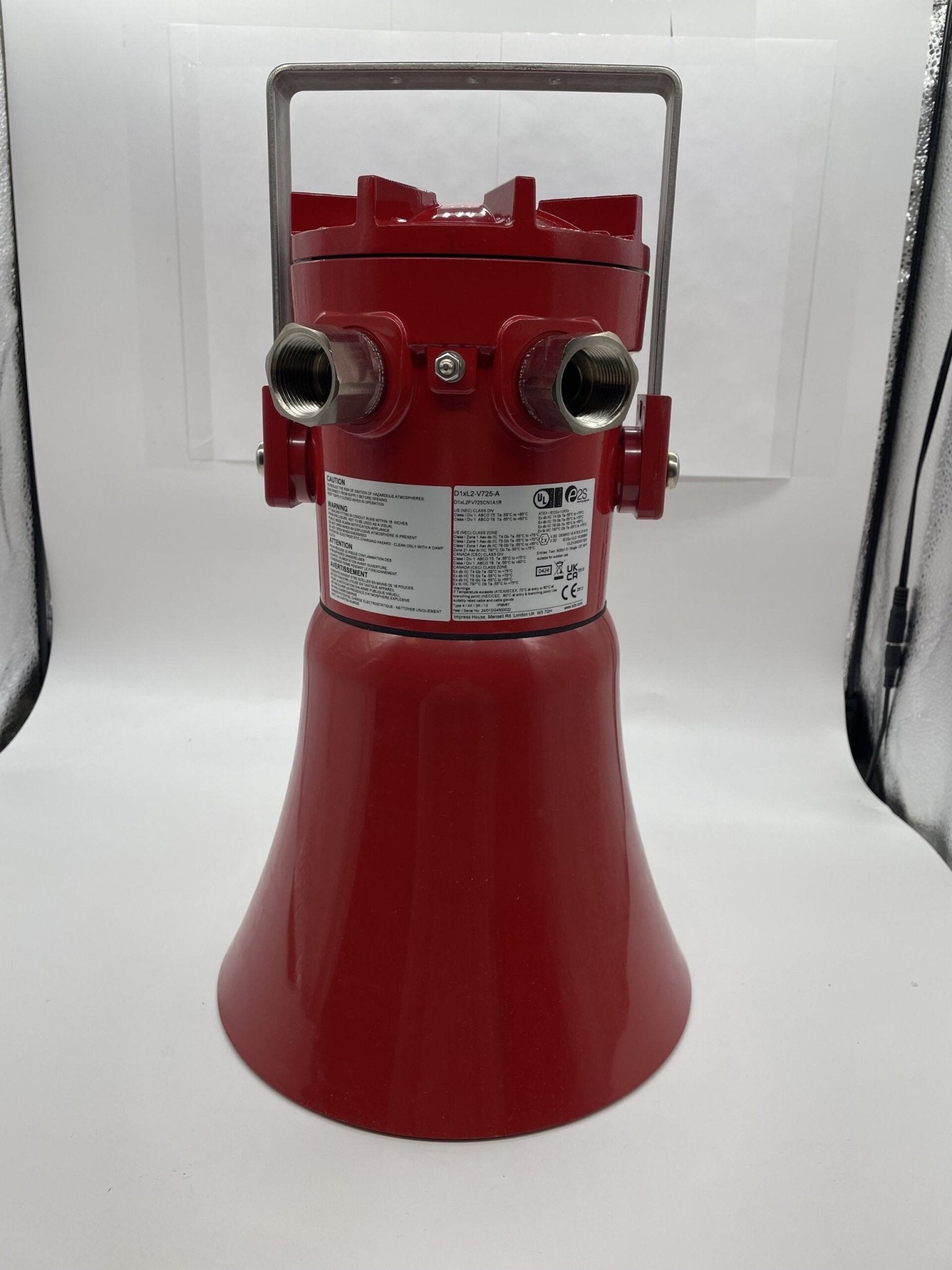

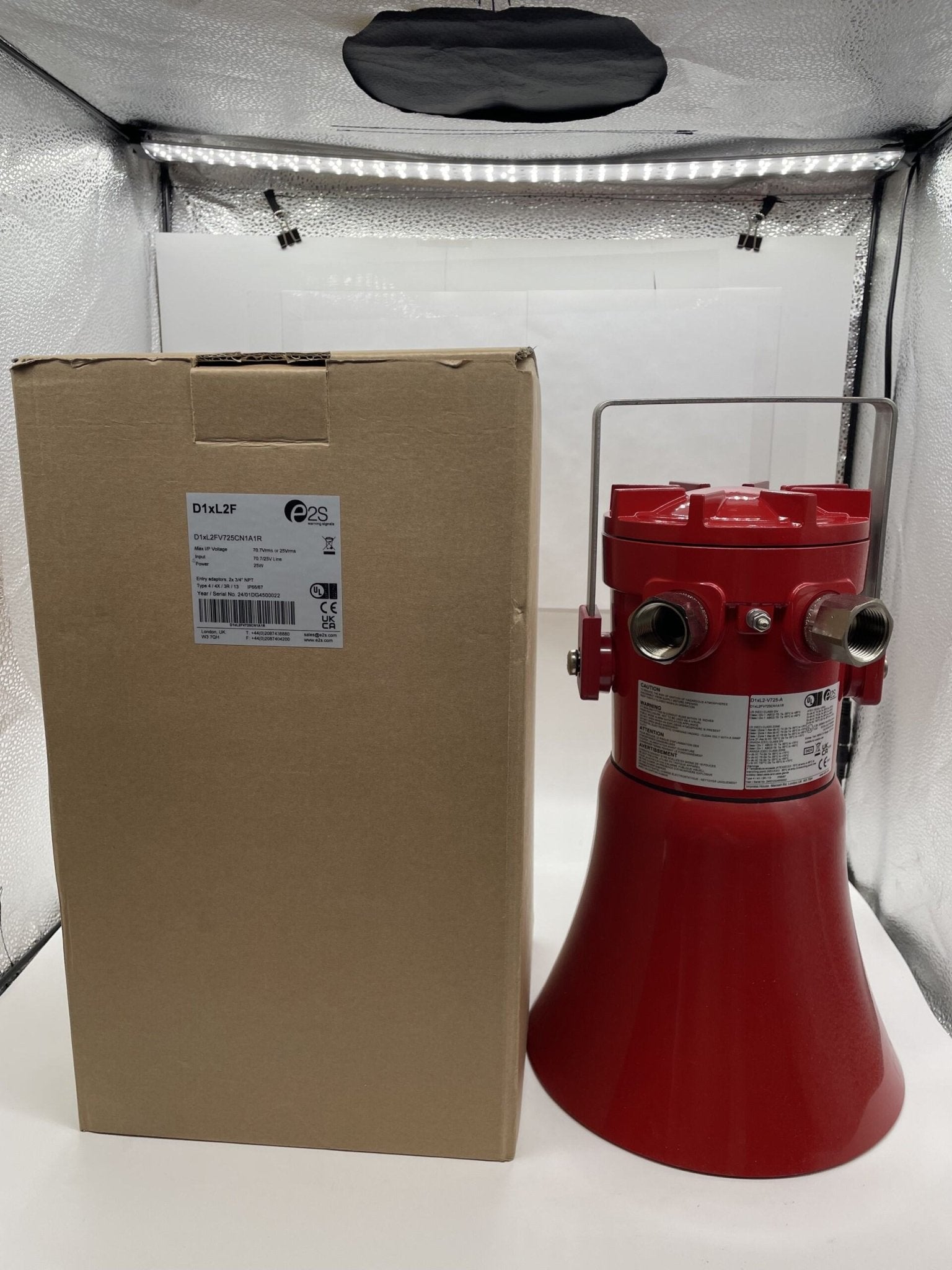

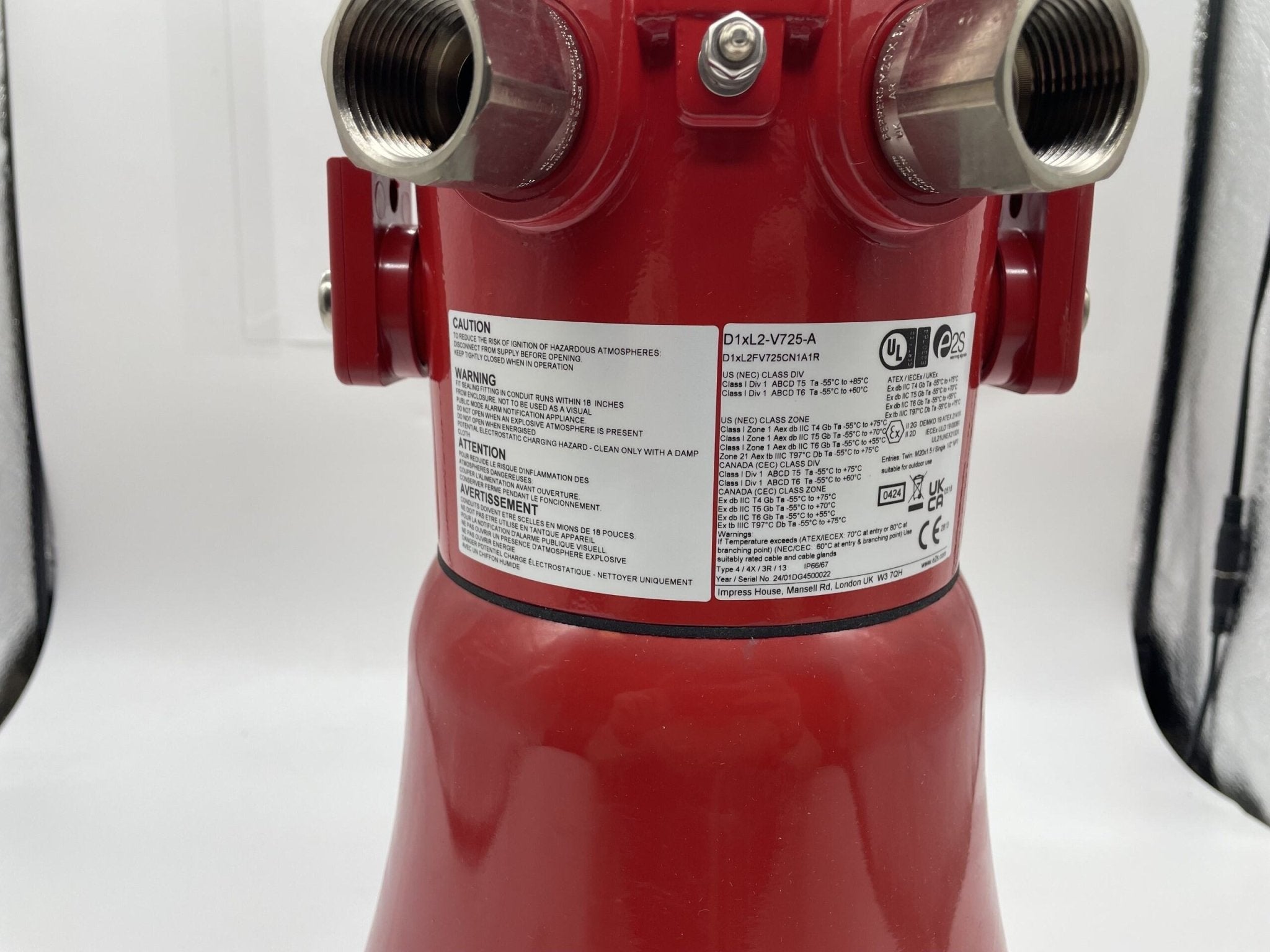

The E2S D1xL2F is a 25 W PA loudspeaker with a re-entrant flare horn in a marine grade aluminium explosion proof enclosure for Class I/II Division 1 and Zone 1, 20 and 21 locations. This configuration has the dual 25 V/70 V line transformer, a red enclosure and a 316 stainless steel bracket. It is listed to UL 1480 and CAN/ULC-S541 as a speaker for fire alarm and signaling systems.
Key Features
- 25 W RMS loudspeaker with re-entrant flare horn
- 25 V/70 V line transformer with multiple tappings (25/12.5/6/2/1 W)
- Ratchet adjustable 316 stainless steel bracket
- Triple cable entries and duplicated terminals
- Field replaceable thermoplastic flare horn
- UL 1480 and CAN/ULC-S541 speaker for fire alarm and signaling systems
Specifications
| Rated power |
25 W RMS |
| Sound pressure level |
104 dB ±3 dB @ 1 W/1 m (pink); 119 dB ±3 dB @ 25 W/1 m (rated); 123 dB(A) @ 1 m at 1.3 kHz (max) |
| Line transformer |
25 V/70 V (V725) |
| Frequency range |
400 Hz to 8000 Hz |
| Cable entries (this configuration) |
2 x 3/4" NPT via adaptors, nickel plated brass |
| Terminals |
0.5-2.5 mm² (20-14 AWG), duplicated |
| Enclosure |
Marine grade LM6 aluminium alloy, chromate and powder coated |
| Ingress protection |
IP66/67; Type 4/4X/3R/13 |
| Enclosure colour |
Red |
| Hazardous location rating |
Class I Div 1 Groups A, B, C, D; Class I Zone 1; Zone 21 |
| Installation temperature |
NEC: -55 to +85 °C (-67 to +185 °F) |
| Weight |
4.5 kg / 9.9 lb (transformer versions) |
