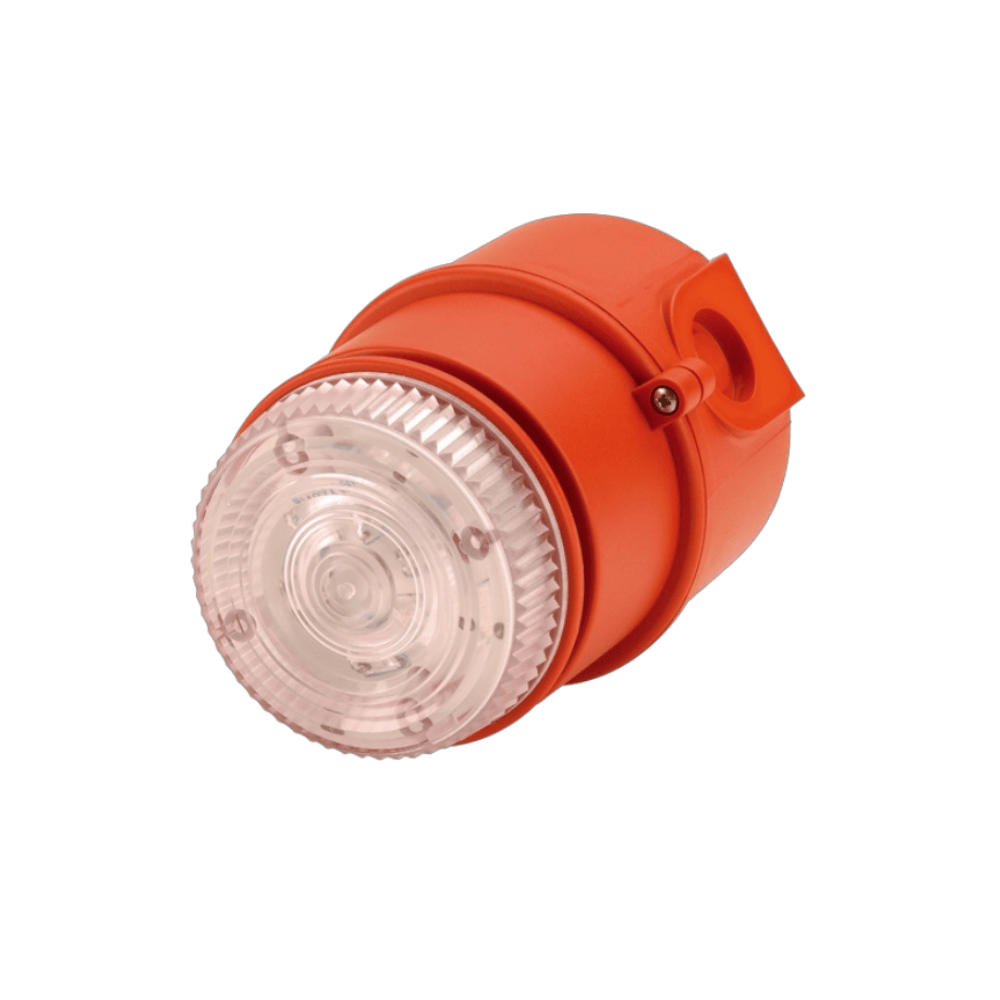

E2S IS-mC1-R/C — intrinsically safe combined alarm sounder and LED beacon, red housing, clear white LED.
In the E2S part code the R is the fixed red enclosure and the letter after the slash picks the LED colour, so R/C is the white LED build, not a second body colour. Sounder and beacon can share one Zener barrier or galvanic isolator, or run from separate barriers for independent control. It is certified intrinsically safe apparatus, installed to control drawing D 5037 and the NEC.
- 100 dB(A) at 1 m, 91 dB(A) at 10 ft on tone 2; 49 tones, 3 stages, 90 to 100 dB(A)
- Beacon: 6 high intensity LEDs, 23 cd effective, double flash at 1 Hz or 2 Hz
- 16–28 V DC; about 30 mA combined from 24 V via a 28 V 300 Ω barrier
- ATEX SIRA 05ATEX2084X, IECEx SIR 06.0045X, UKEX CSAE 21UKEX2553X; Ex ia IIC T4 Ga
- FM Approved IS Class I Division 1 Groups A, B, C, D and Class I Zone 0 AEx ia IIC T4
- IP65, RAL3000 red ABS and PC, -40 to +60 °C, 0.44 kg
The suffix is the order: R/R, R/A, R/B and R/G are the red, amber, blue and green LED versions of the same red body. The certified barrier is a separate purchase.
