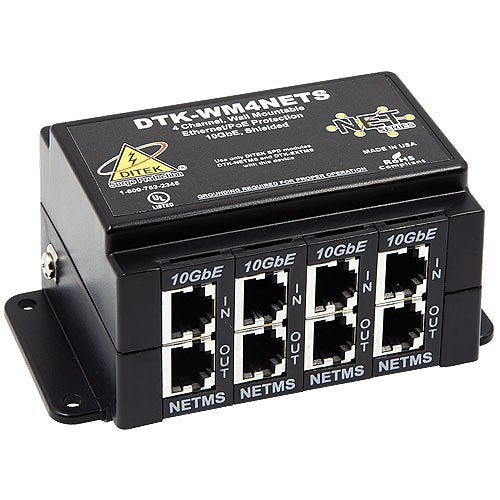

DITEK DTK-WM4NETS — four-channel wall-mount surge protector for shielded Ethernet and Power over Ethernet circuits.
Network cable running outdoors or between buildings carries surge energy straight into whatever it is plugged into. This unit sits between that field wiring and the switch, NVR or access-control head end, passing data on shielded RJ45 jacks while a hybrid TVS diode and gas discharge tube circuit clamps transients.
- Four channels, shielded RJ45 female in and out, 10GbE
- Surge current 20kA per pair; power handling 144 watts
- Clamping 7.22 V differential, 75 V common mode; service under 60 Vdc
- Complies with IEEE 802.3af, 802.3at, 802.3bt Type 3 and 802.3bt Type 4
- ABS housing, 4.75 × 2.93 × 2.36 in.; -40°F to 158°F
- UL 497B certified; ANSI/TIA-568, RoHS and CE
DITEK intends this one for indoor wall or desk-top mounting, not for a rack; the 19 in. rack-mount members of the family are DTK-RM16NETS and DTK-RM24NETS. DTK-WM8NETS is the same protector with eight channels and DTK-WM4EXTS covers PoE extender circuits instead. Each channel is a plug-in module, DTK-NETMS or DTK-EXTMS.
Documents
FAQ
How many circuits does the DTK-WM4NETS protect?
Four Ethernet or Power over Ethernet circuits in one wall mount unit.
Will it slow the network down?
No. DITEK states it supports Ethernet speeds up to 10GbE without signal degradation.
Can a damaged channel be replaced?
Yes. It has a rapid-replacement modular design, so individual protection modules can be swapped.
