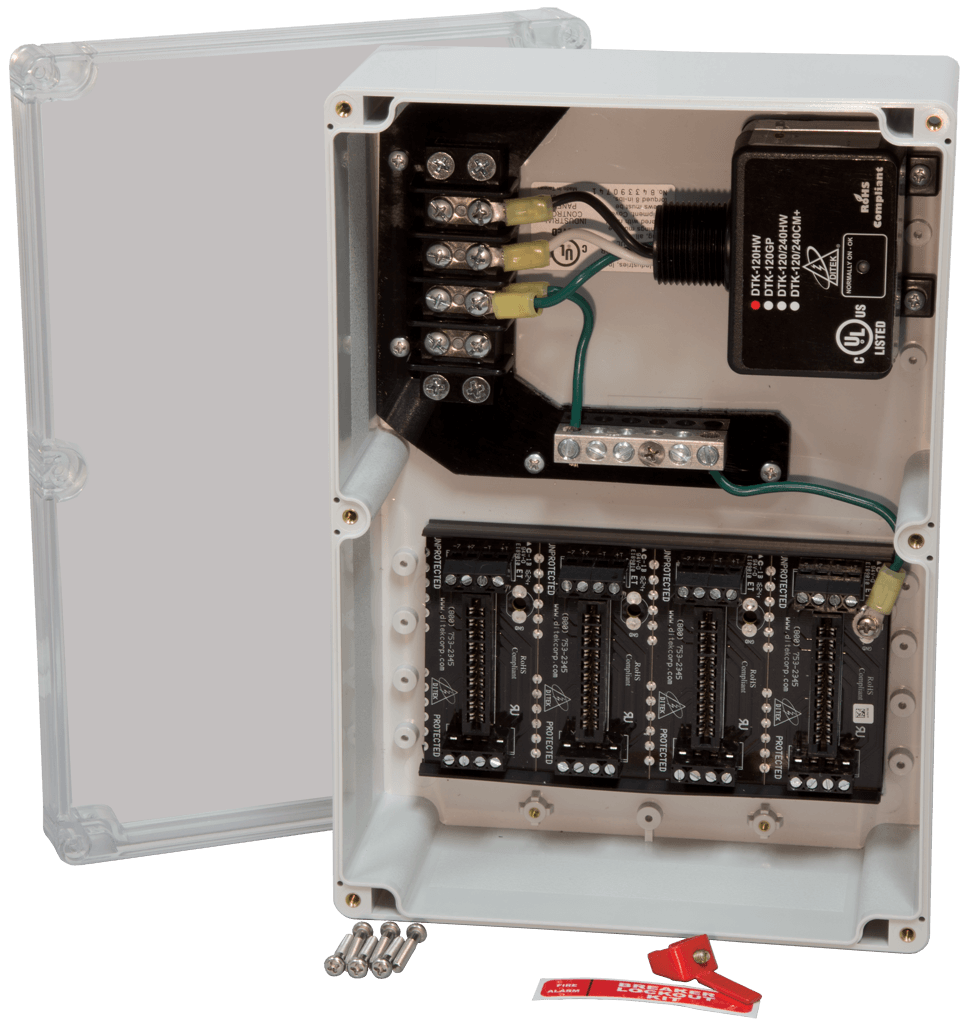

DITEK DTK-TSS6 is a fire panel protection package for the 120V AC power feed and up to eight pairs of signaling loops. It combines a DTK-120HW parallel-connected AC surge protector with a DTK-4MB base.
The assembly is housed in a NEMA 4X enclosure. The hard-wired base accepts 2MHLP/2MHTP modules for SLC, NAC, IDC, PIV and dialer circuits, and those modules are ordered separately.
Features
- 120V AC surge protection in a NEMA 4X enclosure
- Short-circuit current rating of 10kAIC, meeting NEC Article 285.6
- Includes a lockout kit compatible with NFPA 72 (2013) 10.6.5.2 to prevent accidental disconnect of the fire alarm system
- Hard-wired base for 2MHLP/2MHTP modules; modules are not included
- Field-replaceable modules
Specifications
| Power protection |
120V AC, parallel connected |
| Loop capacity |
Up to 8 pairs |
| Enclosure |
NEMA 4X |
| SCCR |
10kAIC |
| Connection |
Hard-wired |
| Compliance |
NDAA, TAA, RoHS |
