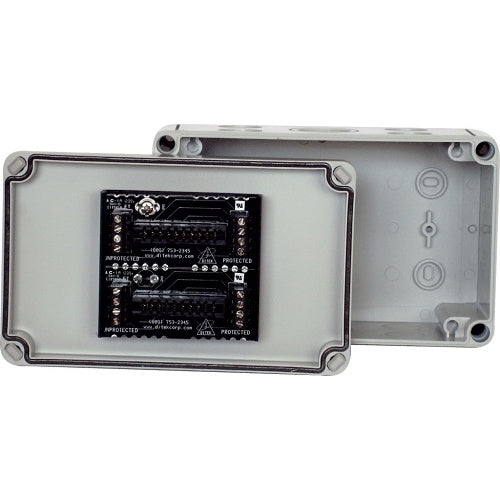

DITEK DTK-TSS3 is an outdoor-rated surge protection enclosure for fire alarm signaling and notification circuits. It is a NEMA 4X enclosure with a prewired four-pair mounting base for DTK-2MHLP loop protector modules, which are sold separately.
It suits building-to-building runs for SLC, NAC, IDC and PIV circuit pairs. Modules from 5V to 75V can be selected, or 2MHTP telco modules, and every module is field replaceable.
Features
- Protects up to four pairs of SLC, NAC, IDC or PIV circuits
- Hard-wired base for DTK-2MHLP and 2MHLPB modules
- Modules sold separately, selectable from 5V to 75V
- Telco modules (2MHTP) also supported
- NEMA 4X enclosure for outdoor use
- Field-replaceable protection modules
Specifications
| Type |
Surge protector enclosure |
| Enclosure |
NEMA 4X |
| Protected pairs |
4 |
| Depth |
4" |
| Height |
7" |
| Width |
4" |
| RoHS |
Yes |
| TAA compliant |
Yes |
| NDAA compliant |
Yes |
