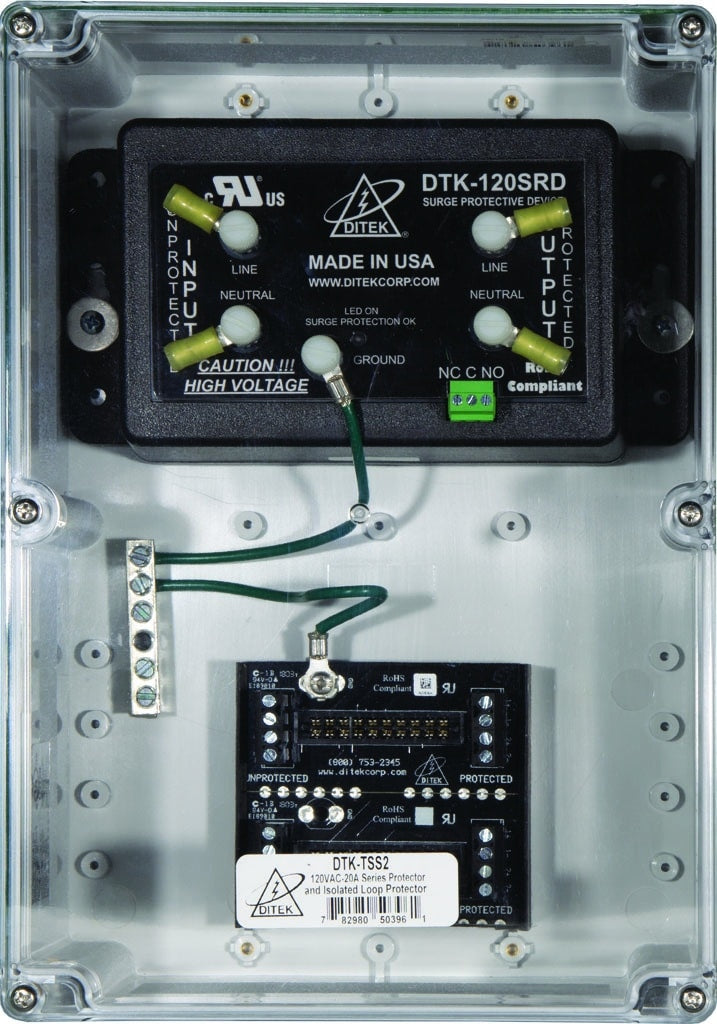

DITEK DTK-TSS2 is a surge protection package for fire alarm systems, combining a DTK-120SRD 120V AC protector with a 2-position hard-wired loop base in a NEMA 4X enclosure.
The AC protector has dry contacts so the surge protection status can be monitored remotely. The base accepts 2MHLP/2MHLPB modules to protect up to four pairs of SLC, NAC, IDC and PIV circuits; those modules are sold separately.
Features
- Protects 120V AC power with dry contacts for remote status monitoring
- Hard-wired base for 2MHLP/2MHLPB modules, up to 4 circuit pairs
- NEMA 4X enclosure
- Terminal block connections
- Modules for the loop base are not included
Specifications
| Power protection |
120V AC |
| Loop capacity |
Up to 4 pairs (SLC, NAC, IDC, PIV) |
| Enclosure |
NEMA 4X |
| Connection |
Terminal block |
| Depth |
4" |
| Height |
10" |
| Width |
7" |
| Compliance |
NDAA, TAA, RoHS |
