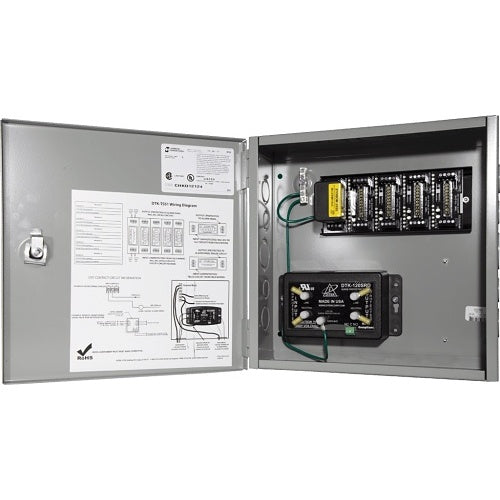

DITEK DTK-TSS1 — Total Surge Solution for addressable and conventional fire alarm control panels, combining a DTK-120SRD 120 VAC surge protector with a pre-wired DTK-5MB five-position mounting base.
The TSS1 protects the panel 120 VAC power and up to ten pairs of SLC, IDC/PIV, NAC, network or dialer circuits. The AC surge protector has Form C dry contacts so surge protection status can be monitored remotely. DTK-2MHLP plug-in modules for the data, signal and dialer circuits are ordered separately and fit the mounting base.
Specifications
| Model |
DTK-TSS1 |
| Service voltage |
120 VAC, single phase |
| MCOV |
150 V |
| Max. continuous current |
20 A |
| Surge current rating |
50,000 A |
| Nominal discharge current |
10 kA |
| SCCR |
10,000 A |
| VPR |
600 V L-G, 1000 V N-G, 600 V L-N |
| EMI/RFI filtering |
Up to -35 dB, 100 kHz to 100 MHz |
| Status indication |
LED and Form C dry contacts |
Installation notes
- The DTK-5MB base holds up to five DTK-2MHLP modules, protecting up to ten circuit pairs
- Add a DTK-4MB base to protect up to eight more data/signal pairs
- Example: one DTK-2MHLP24F for two SLC circuits, three DTK-2MHLP24B for six NACs and one DTK-2MHLP130B for two telco lines
Documents
FAQ
Are the circuit protection modules included?
No. The DTK-2MHLP modules for SLC, NAC, IDC, network or dialer circuits are ordered separately and plug into the included DTK-5MB base.
How many circuits can it protect?
The 120 VAC panel power plus up to ten circuit pairs on the five-position base, expandable by eight more pairs with a DTK-4MB base.
Can the surge protector status be monitored?
Yes. The DTK-120SRD has an LED and Form C dry contacts for remote monitoring.
