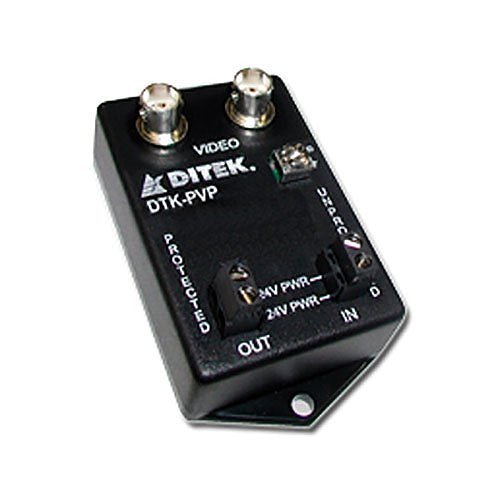

DITEK DTK-PVP27B is a surge protector for fixed analog and HDCCTV cameras that run on coaxial cable. Each unit protects both the 12/24V power conductors and the video conductors of the camera.
The 5 A, 12/24V circuit can also protect the power feed to a camera heater, blower or defroster. A single ground point is used, which helps improve protection and speeds up installation.
Features
- Protects fixed analog and HDCCTV cameras on coax
- Protects both 12/24V power and video conductors
- Multi-stage SAD surge protection technology
- 5 A, 12/24V circuit for camera, heater, blower or defroster power
- Single point ground for faster installation
- Hardwired connection
Specifications
| Product type |
Surge protector |
| Data line protection |
Coaxial cable line, data communication |
| Operating voltage |
12/24V |
| Connection |
Hardwired |
| Dimensions (D x H x W) |
1.4" x 3.9" x 2.1" |
| Compliance |
NDAA, TAA, RoHS |
