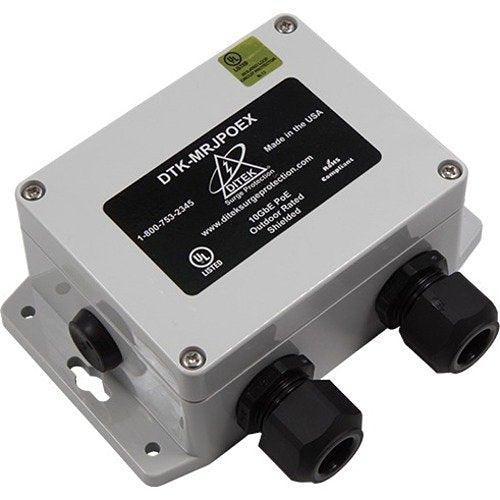

DITEK DTK-MRJPOEX is an outdoor-rated Power over Ethernet surge protector in a NEMA Type 4X polycarbonate enclosure with shielded RJ45 connections.
It wires in series with the cable feeding an externally mounted PoE device, so a strike induced on that run is clamped before it reaches the camera, radio or access point. Liquid-tight cord grips seal around the cable at both ends.
Features
- Carries Ethernet up to 10GbE without signal degradation; Cat5e, Cat6 and Cat6A
- Compatible with IEEE 802.3af at 15.4 W, 802.3at at 30 W, 802.3bt Type 3 at 60 W and Type 4 at 100 W
- 20 kA per pair surge current rating; 144 W power handling
- Clamping 7.22 V differential and 75 V common mode; service voltage under 60 VDC
- Shielded RJ45 female in and out, with an optional internal grounding screw
- UL 497B certified; ANSI/TIA-568 and RoHS
Specifications
| Model |
DTK-MRJPOEX |
| Enclosure |
NEMA Type 4X polycarbonate |
| Connectors |
Shielded RJ45 female, in and out |
| Temperature |
Minus 40°F to 158°F |
| Dimensions |
5.71 x 3.6 x 2.2 in. |
| Weight |
10.4 oz |
Where it is used
Install the DTK-MRJPOEX at the outdoor end of a PoE run, such as the cable feeding an externally mounted camera, radio or access point, so a strike induced on the cable is clamped before it reaches the device. The shielded RJ45 connections keep the shield continuous through the protector, and the liquid-tight cord grips seal the enclosure at both cable entries.
Related models
DTK-MRJPOE is the indoor version with the same electrical ratings, an unshielded RJ45 and an external grounding screw. The plug-in element in this unit is replaced with DTK-MRJPOEXM.
Documents
FAQ
Where should the DTK-MRJPOEX be installed?
At the outdoor end of a PoE run, in series with the cable feeding an externally mounted camera, radio or access point.
Which PoE standards does it support?
IEEE 802.3af (15.4 W), 802.3at (30 W) and 802.3bt Type 3 (60 W) and Type 4 (100 W), with 144 W power handling.
Does it slow the network?
DITEK states it carries Ethernet up to 10GbE without signal degradation on Cat5e, Cat6 and Cat6A cable.
Can the protection element be replaced?
Yes, the plug-in element is replaced with the DTK-MRJPOEXM.
