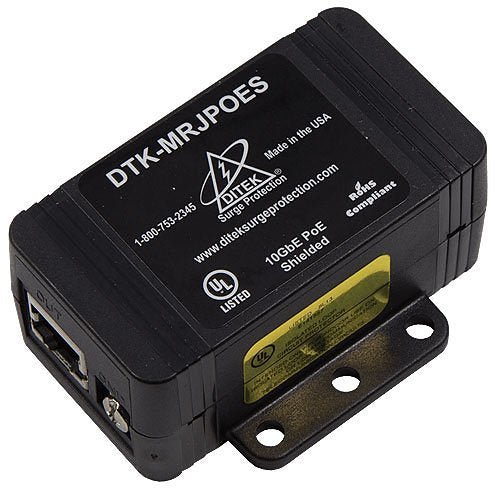

DITEK DTK-MRJPOES — single-channel shielded RJ45 surge protector for one Ethernet or Power over Ethernet circuit.
Wired in series at the equipment end or ahead of a midspan injector, it shunts surge energy to ground before it reaches the connected device. A multi-stage hybrid of TVS diodes and gas discharge tubes handles both the fast rise of a strike and the energy behind it.
- Passes data up to 10GbE without signal loss; suits Cat5e, Cat6 and Cat6A
- Compatible with 802.3af at 15.4 W, 802.3at at 30 W, 802.3bt Type 3 at 60 W and Type 4 at 100 W
- 144 W power handling; service voltage under 60 VDC
- 20 kA per pair; clamping 7.22 V differential, 75 V common mode
- Shielded RJ45 female in and out with external grounding screw; ABS housing
- UL 497B certified; ANSI/TIA-568 and RoHS compliant
- 3.0 x 2.43 x 1.32 in.; -40 to 158°F
The DTK-MRJPOE is the unshielded version of the same protector, and the DTK-MRJEXTS looks identical but serves PoE extender circuits. Outdoors use the NEMA 4X DTK-MRJPOEX; where many circuits land together, the DTK-RM12NETS to DTK-RM24NETS are the rack-mount equivalents.
Documents
FAQ
Where is the DTK-MRJPOES installed?
It is a point of use protector that can be installed at the endpoint device or ahead of the power sourcing equipment.
Does it support high-power PoE?
Yes. DITEK lists it as compatible with 802.3af (15.4 W), 802.3at (30 W), 802.3bt Type 3 (60 W) and 802.3bt Type 4 (100 W).
Will it slow down the network?
It supports Ethernet speeds up to 10GbE without signal degradation on Cat5e, Cat6 or Cat6A cabling.
Can it be DIN rail mounted?
Yes, with the DTK-DRK DIN rail mounting kit, sold separately.
