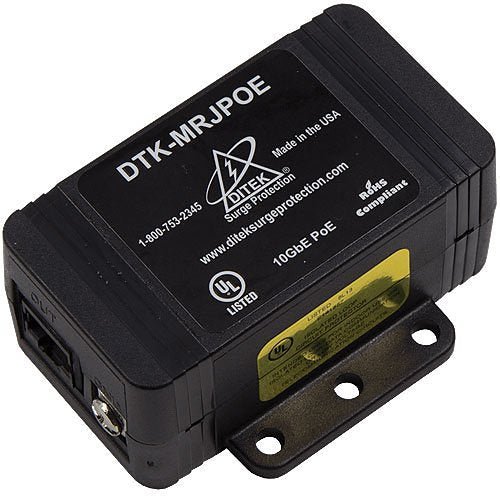

DITEK DTK-MRJPOE — point-of-use Power over Ethernet surge protector with RJ45 female in and out jacks, certified to UL 497B.
This is a network surge protector, not a fire alarm device. A Cat5e, Cat6 or Cat6A run passes through it while a hybrid circuit of TVS diodes and gas discharge tubes shunts surge energy to an external grounding screw, so it can sit at the endpoint device or ahead of the power sourcing equipment. It is directional: supply on IN, equipment on OUT.
- 10GbE data rate without signal degradation; ANSI/TIA-568
- 802.3af 15.4 W, 802.3at 30 W, 802.3bt Type 3 60 W and Type 4 100 W; 144 W handling
- Service voltage under 60 VDC; 20 kA surge current per pair
- Clamping 7.22 V line to line, 75 V line to ground
- ABS housing, 3.0" L × 2.43" W × 1.32" H, 3.2 oz
- –40°F to 158°F, 95 percent RH non-condensing
- Ground lead 14 AWG minimum, ground resistance 25 Ω maximum
DITEK specifies plain RJ45 jacks here: DTK-MRJPOES is the shielded version, DTK-MRJPOEX the outdoor NEMA 4X one, DTK-MRJETHS the non-PoE Ethernet model, and DTK-DRK the DIN rail kit.
Documents
FAQ
Which PoE standards does it support?
802.3af (15.4 W), 802.3at (30 W) and 802.3bt Type 3 (60 W) and Type 4 (100 W).
Will it slow down the network?
No. DITEK rates it for Ethernet speeds up to 10GbE without signal degradation on Cat5e, Cat6 or Cat6A cabling.
Where should it be installed?
At the endpoint device or ahead of the power sourcing equipment, with the external grounding screw bonded to ground.
Is there a DIN rail option?
Yes. The DTK-DRK DIN rail mounting kit is the accessory DITEK names for it.
