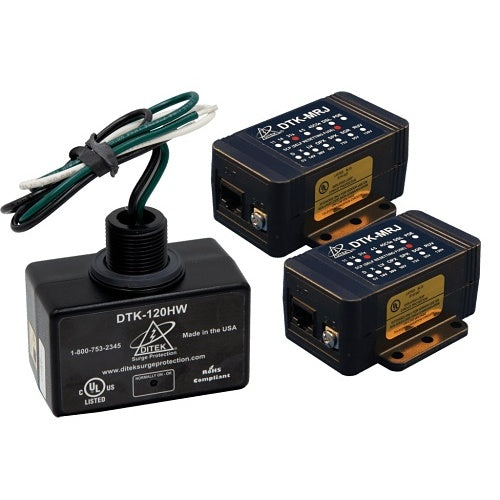

DITEK DTK-FPK1 is a surge protection kit for fire alarm systems. It combines one DTK-120HW to protect the 120V AC power feed with two DTK-MRJ31XSCPWP units that protect dialer circuits.
The AC protector carries a diagnostic LED that shows ground presence, system power and the state of the surge protective device, which makes a field check straightforward.
Features
- 120V AC power protection with a 19,500A peak surge current rating
- Diagnostic LED for ground presence, system power and SPD function
- Two dialer circuit protectors guard against over-voltage and over-current events
- Supplied as a kit: one DTK-120HW and two DTK-MRJ31XSCPWP
Specifications
| Product type |
Fire protection kit |
| Intended for |
Fire detection systems |
| Compliance |
NDAA compliant; TAA compliant; RoHS |
