Ditek DTK-6003CMXPLUS 600VAC Three Phase Surge Protective Device, UL1449 Certified SPD Type 1

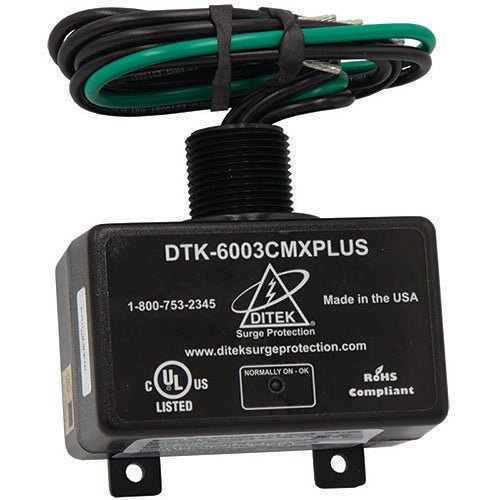

The DTK-6003CMXPLUS is a compact, parallel-mount Type 1 surge protective device for 600 VAC three-phase delta (3 wire + ground) services. It is part of the CMXPLUS series used on electrical panels, disconnect switches, commercial HVAC and industrial equipment. A diagnostic LED shows system power and SPD function.
Key Features
- UL 1449 Certified Type 1 SPD (also CSA C22.2 No. 269.1)
- 75,000 A total surge current rating
- 600 VAC three-phase delta (3W + G)
- Diagnostic LED indicates system power and SPD function
- NEMA 4X polycarbonate enclosure
- 3/4 in. NPT male hub with 18 in. 12 AWG wire leads
- Recommended circuit breaker: 20 A multi-pole
- 10-year limited warranty
Specifications
| Service voltage |
600 VAC three-phase delta (3W + G) |
| Surge current rating |
75,000 A |
| Nominal discharge current (In) |
10 kA |
| Short circuit current rating (SCCR) |
100,000 A |
| MCOV |
690 V / 1380 V |
| Voltage protection rating (VPR) |
4000 V L-L, 2000 V L-G |
| Operating temperature |
-31 to 176 F (-35 to 80 C) |
| Dimensions |
3.47 x 2.08 x 1.89 in. (88 x 53 x 48 mm) |
| Weight |
8.8 oz (249 g) |
Compatible With
- 600 VAC three-phase delta electrical panels and disconnects
- Commercial HVAC equipment
