Ditek DTK-5MB Five Module Snaptrack-Type Base for 2MHLP Series

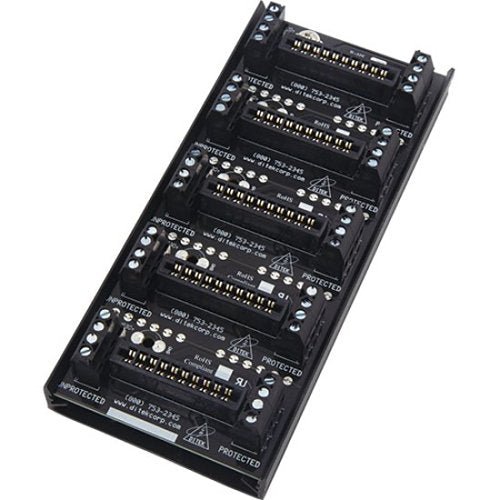

The DTK-5MB is a five-module (10-pair) hard-wired snap-track mounting base for DITEK DTK-2MHLP series plug-in surge protection modules. It lets the installer protect several circuits at one location while sharing a common ground point. Surge modules are sold separately.
Key Features
- Five-position snap-track base, 10 circuit pairs
- Hard-wired screw-terminal connections with a common ground terminal
- Accepts field-replaceable DTK-2MHLP edge-card surge modules
- Mounts with the two #8 screws provided; ground with minimum 14 AWG wire
Specifications
| Module positions |
5 |
| Circuit pairs |
10 |
| Dimensions (with module) |
3.25 x 7.5 x 2.65 in. (83 x 191 x 67 mm) |
| Connection |
Screw terminals, 30-12 AWG |
Compatible With
- DITEK DTK-2MHLP series modules (2MHLPxxB / 2MHLPxxF)
- DITEK DTK-2MHTP dialer/POTS module
