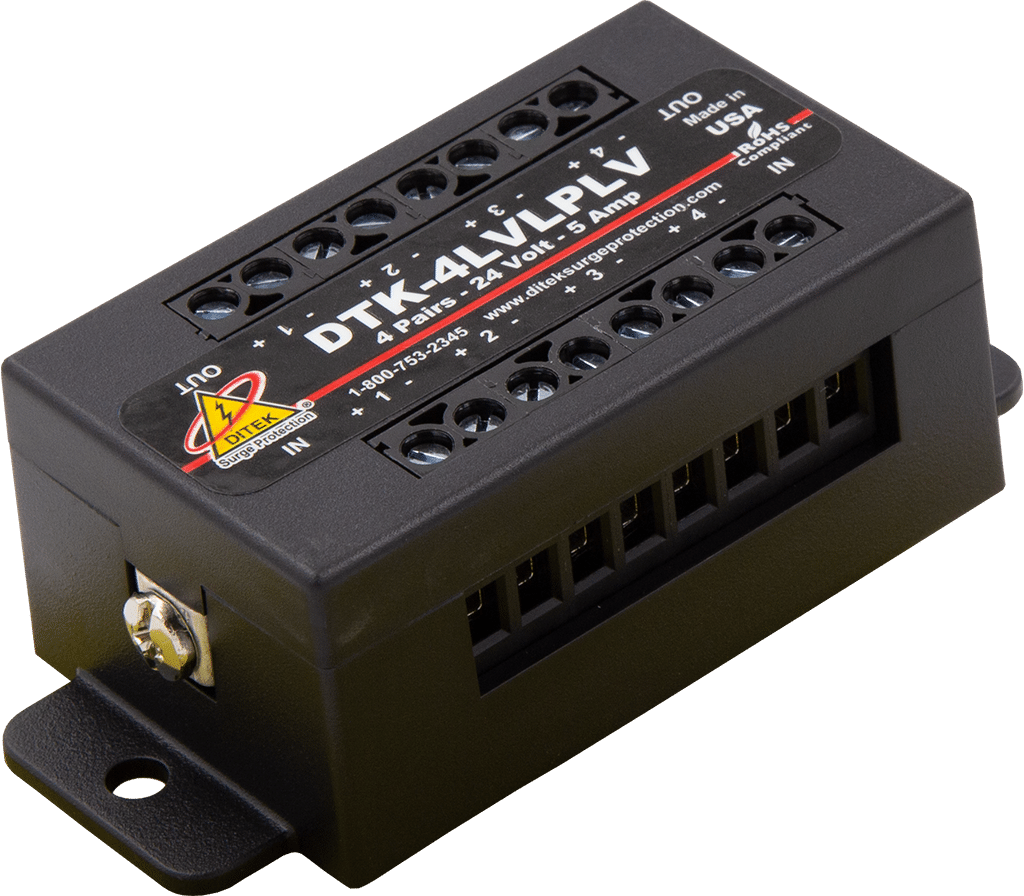

DITEK DTK-4LVLPLV is a DTK-LVLP Series low voltage surge protector for four pairs of 24 VDC hardwired circuits. LVLP protectors give robust protection in a compact, hardwired package and are used on NAC, SLC and PIV circuits, OSDP and Wiegand circuits, 4-20 mA current loops, low voltage power circuits and automation control circuits.
The protector connects in series but functions in parallel, so it adds no resistance to the protected circuits. It provides both differential mode (line-line) and common mode (line-ground) protection, with a 5,000 A surge current rating and a 5 A maximum continuous current. The small form factor reduces installation space, and an optional DIN rail kit is available.
Specifications
| Service voltage |
24 VDC |
| MCOV |
33 V |
| Clamping voltage |
39 V |
| Pairs protected |
4 |
| Protection modes |
Line-line and line-ground |
| Surge current |
5,000 A |
| Continuous current |
5 A maximum |
| Connections |
Screw terminals, 30 to 12 AWG |
| Housing |
ABS, 3.3 x 1.55 x 1.1 in. |
| Temperature |
-40°F to 158°F (-40°C to 70°C) |
| Certification |
UL 497B; 10 year limited warranty |
Installation notes
- Wire the protector in series with each circuit pair
- Use the DTK-DRK DIN rail mounting kit for rail mounting
- Choose the LVLP voltage model to match the circuit voltage
Related models
- DTK-2LVLPLV: 2-pair 24 VDC version
- DTK-4LVLPX: 4-pair 12 VDC version
- DTK-2LVLPF: 2-pair SLC protector
Documents
FAQ
Which circuits can the DTK-4LVLPLV protect?
Four pairs of 24 VDC hardwired circuits, such as NAC, SLC and PIV circuits, OSDP and Wiegand circuits, 4-20 mA loops and low voltage power or control circuits.
Does it add resistance to the circuit?
No. It connects in series but functions in parallel, so it adds no resistance.
What are its voltage ratings?
MCOV 33 V and clamping voltage 39 V for the 24 VDC LV model, with a 5,000 A surge current rating.
Can it mount on a DIN rail?
Yes, with the DTK-DRK DIN rail mounting kit.
