DITEK DTK-2MHLP75B Data and Signaling Circuit Surge Protection Module for 70V Speaker Circuits

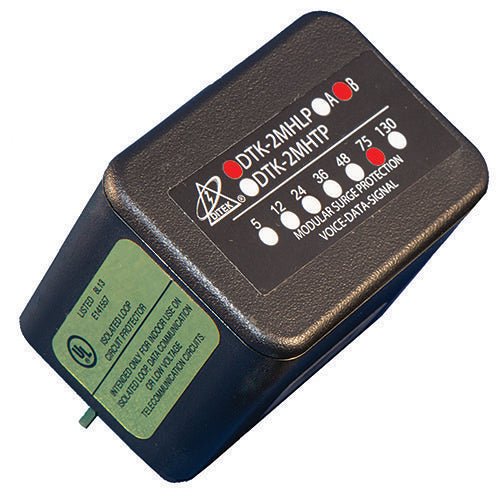

The DTK-2MHLP75B is a field-replaceable plug-in surge protection module that protects two 75 VDC-class circuit pairs, such as 70 V speaker circuits and audio/video equipment. It plugs into a DITEK snap-track mounting base (DTK-MB10, 2MB, 3MB, 4MB or 5MB), which is required and sold separately unless the "WB" version is ordered. With a five-position base up to 10 pairs can share one ground point.
Key Features
- Protects two 70 V circuit pairs per module
- Hybrid multi-stage design (SAD / TVS diode and gas discharge tube)
- Field-replaceable edge-card module with single-point ground
- Differential (line-line) and common (line-ground) protection modes
- For hard-wired series installation on circuits up to 5 A
Specifications
| Service voltage |
75 VDC |
| MCOV |
90 V |
| Clamping voltage |
108 V |
| Surge current rating |
20,000 A |
| Max. continuous current |
5 A |
| Failure mode |
Short to ground |
| Operating temperature |
-40 to 158 F (-40 to 70 C) |
| Housing |
ABS |
| Warranty |
10-year limited |
Compatible With
- DITEK DTK-MB10, DTK-2MB, DTK-3MB, DTK-4MB and DTK-5MB snap-track bases
- 70 V audio / speaker circuits
