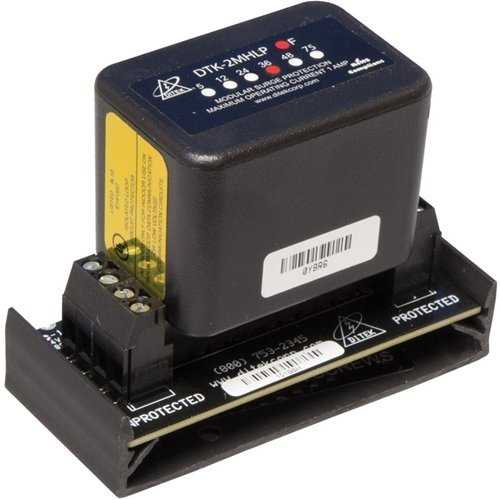

DITEK DTK-2MHLP36FWB is a modular surge protector base for two 36V pairs on alarm panel circuits. Its exclusive load removal feature and multi-stage SAD hybrid design are intended to protect the connected data and signaling lines.
Modules are field replaceable and connect through a modular edge card design with a single point ground. Several bases can be hard-wired together to protect up to ten pairs on a common ground.
Features
- Protects two 36V pairs per module
- Exclusive load removal feature
- Multi-stage SAD technology in a hybrid design
- Field-replaceable modules with modular edge card connection
- Single point ground for faster installation
- Hard-wired multi-base mounting system protects up to ten pairs with a common ground
- Six voltage levels available across the product family
Specifications
| Input voltage |
36V DC |
| Depth |
3.3" |
| Height |
2.6" |
| Width |
1.5" |
| RoHS |
Yes |
| TAA compliant |
Yes |
| NDAA compliant |
Yes |
