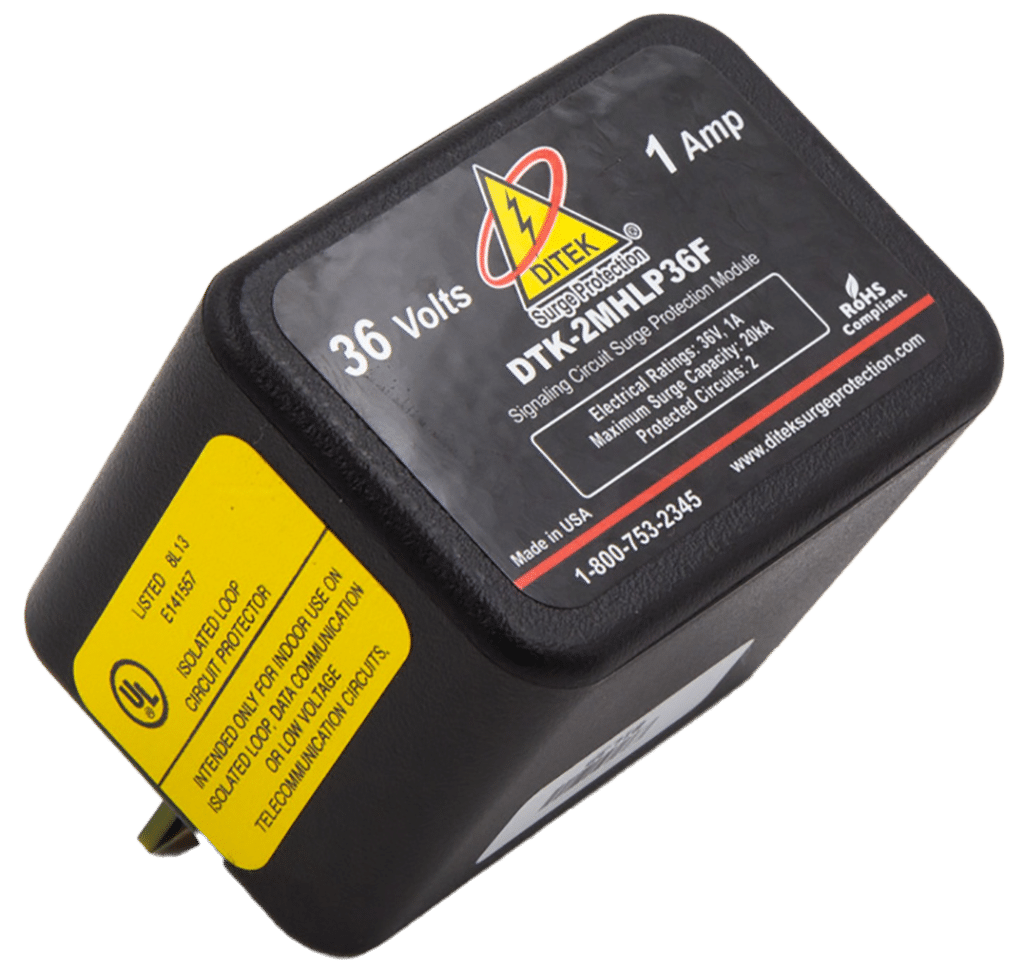

DITEK DTK-2MHLP36F is a modular surge protector for two 36V alarm loop circuits, with a 1A fuse, and it is UL 497B certified. It uses load removal technology to take a protected pair out of service if the protector is compromised.
Each module protects two pairs. Mounted on the required snap-track bases, a hard-wired multi-base arrangement covers up to ten pairs on a common ground.
Features
- Protects two 36V pairs per module
- Load removal feature
- Multi-stage hybrid design using SAD technology
- Field-replaceable modular edge card connection with a single point ground
- Works on both AC and DC circuits
- Snap-track bases are required for mounting
Specifications
| Voltage |
36V DC |
| Pairs per module |
2 |
| Fuse |
1A |
| Protects |
Voice, data and loop circuits |
| Connection |
Terminal block |
| Height |
1.9" |
| Width |
1.4" |
| Operating temperature |
-40°F to 158°F |
| Compliance |
UL 497B; NDAA, TAA, RoHS |
