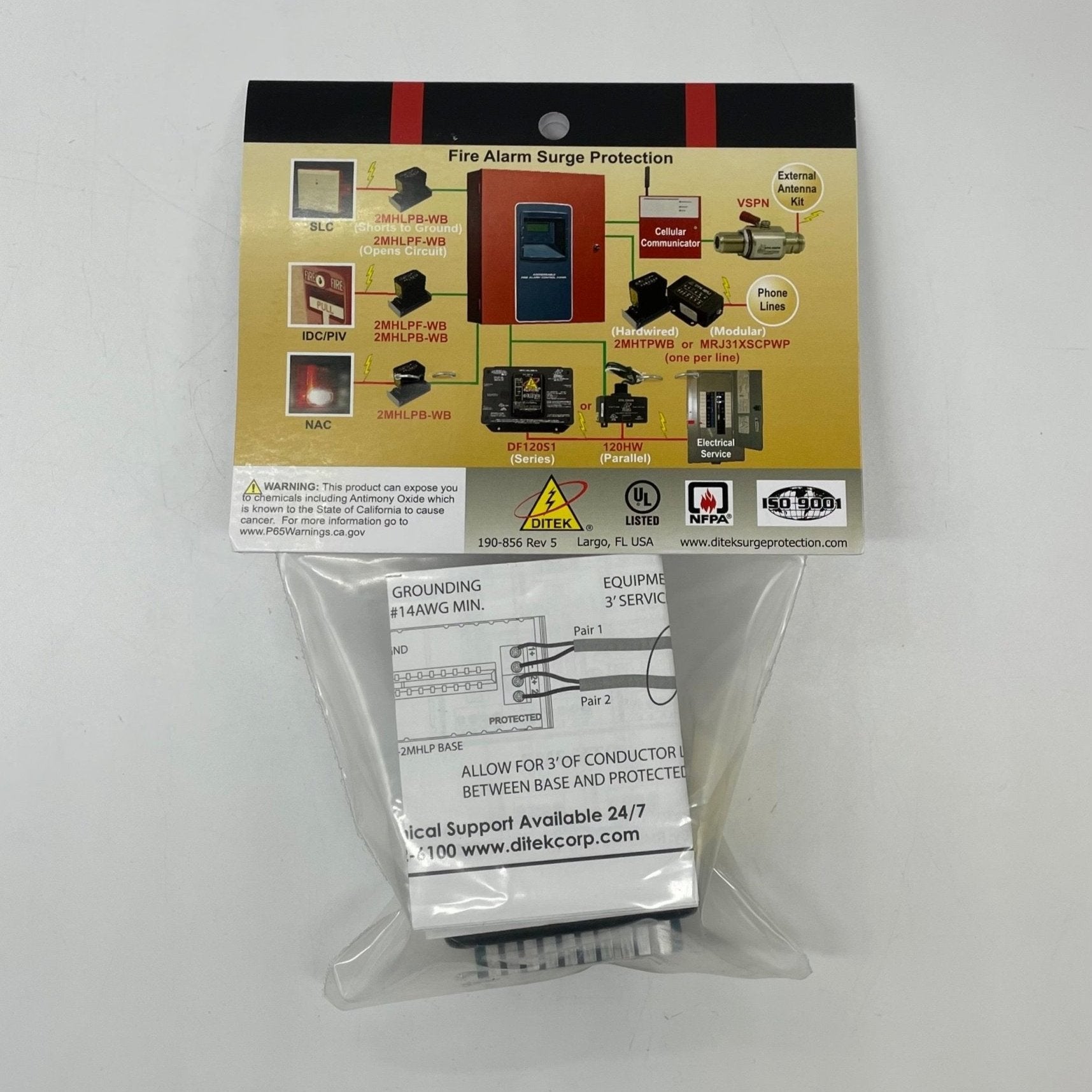

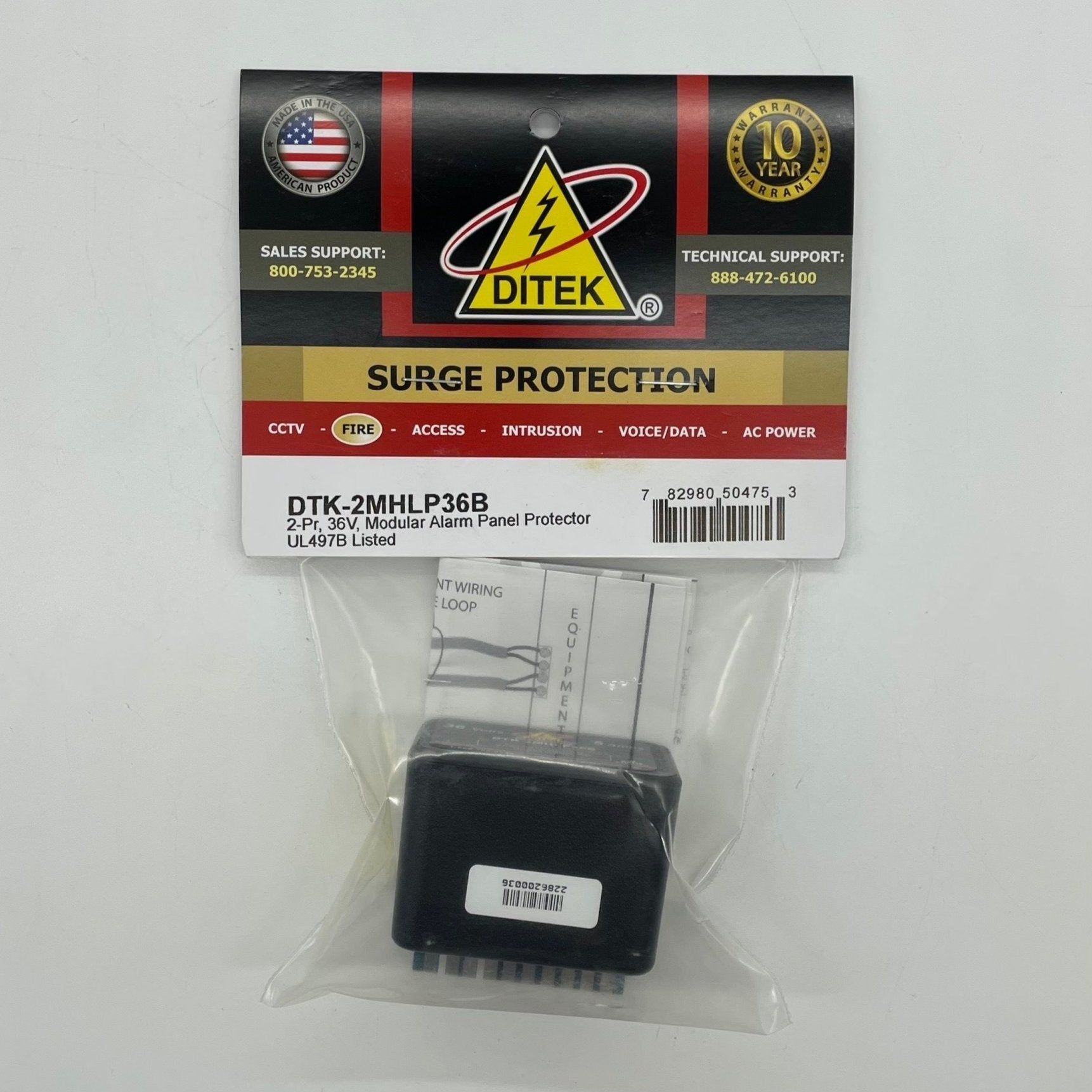

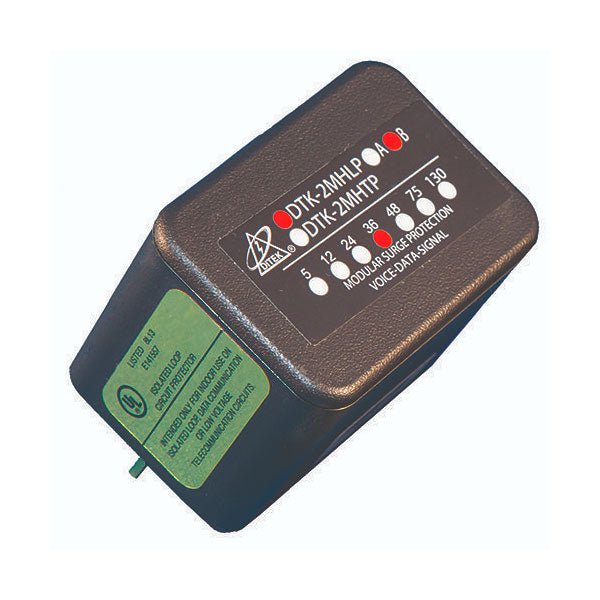

DITEK DTK-2MHLP36B — 36 V hybrid surge protection module covering two low-voltage circuit pairs, field replaceable from its snap-track base.
The module sits in series between field wiring and the equipment being protected, clamping surges to ground through TVS diode and gas discharge tube stages. Because the electronics live in a plug-in module, one that has taken a hit is swapped without disturbing the wiring.
- 36 Vdc service voltage, 48 V MCOV, 57 V clamping voltage
- 20,000 A surge current rating and 5 A maximum continuous current
- The B suffix denotes a module that fails short to ground
- Protects differential mode, line to line, and common mode, line to ground
- Screw terminals accepting 30 to 12 AWG; ABS housing; about 4 oz
- Rated to 158 °F and 95% RH non-condensing; UL 497B certified
- Supplied as the module only — a snap-track base is ordered separately
DTK-2MHLP36BWB is the same module packaged with a single-position base included. Bases run from DTK-MB10 up to DTK-5MB, which carries ten protected pairs on a common ground. DTK-2MHLP24B and DTK-2MHLP48B are the adjacent voltages.
