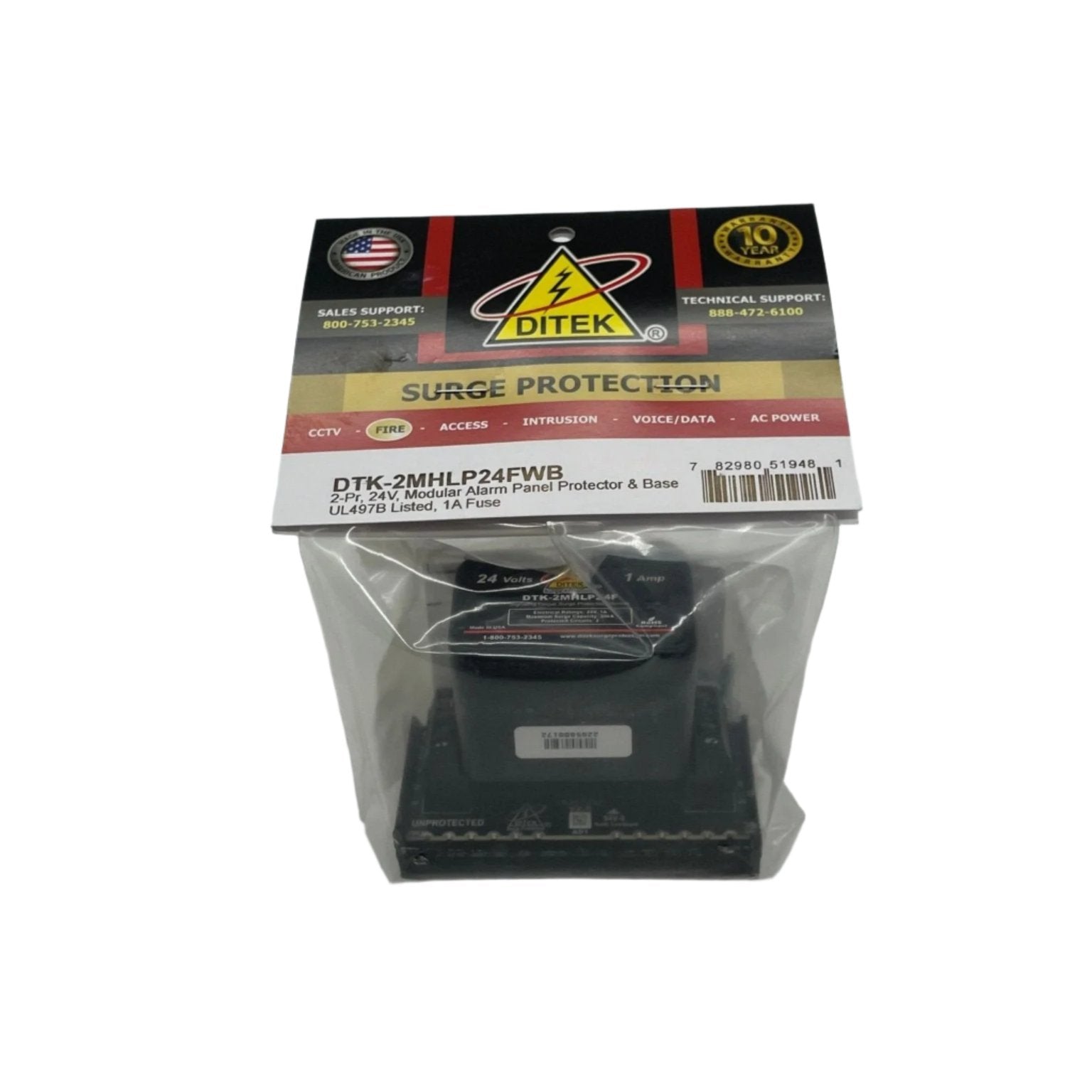

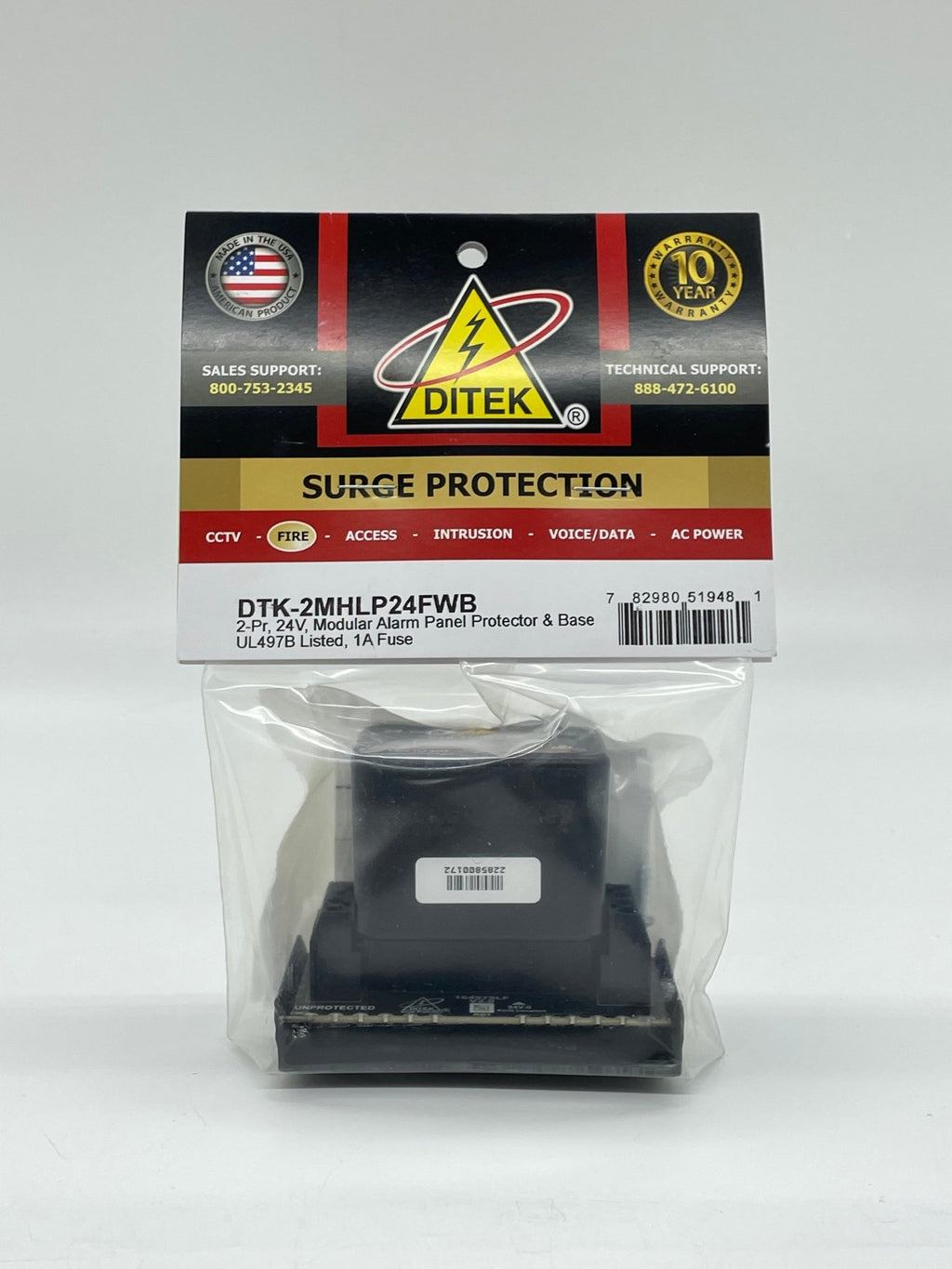

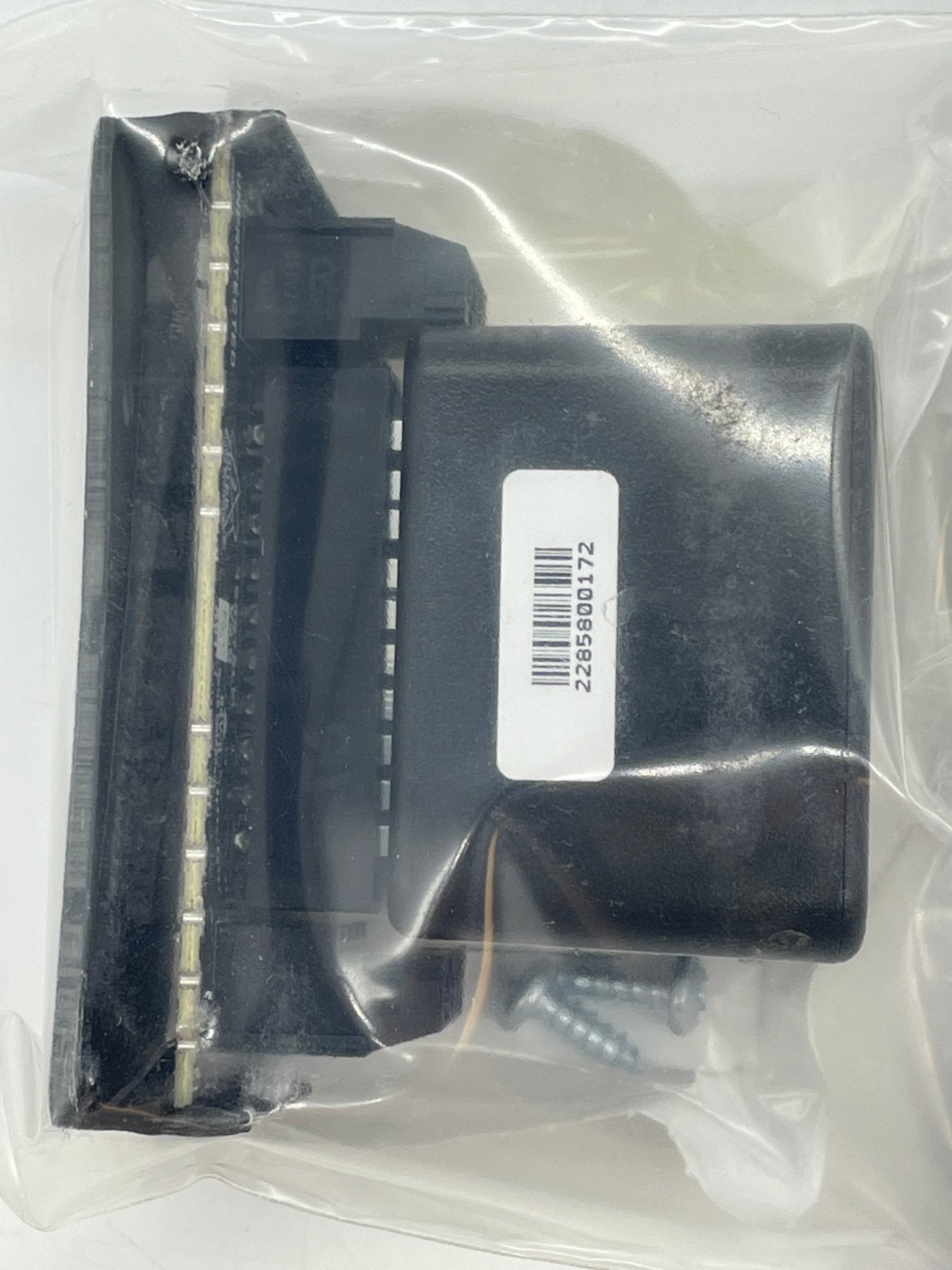

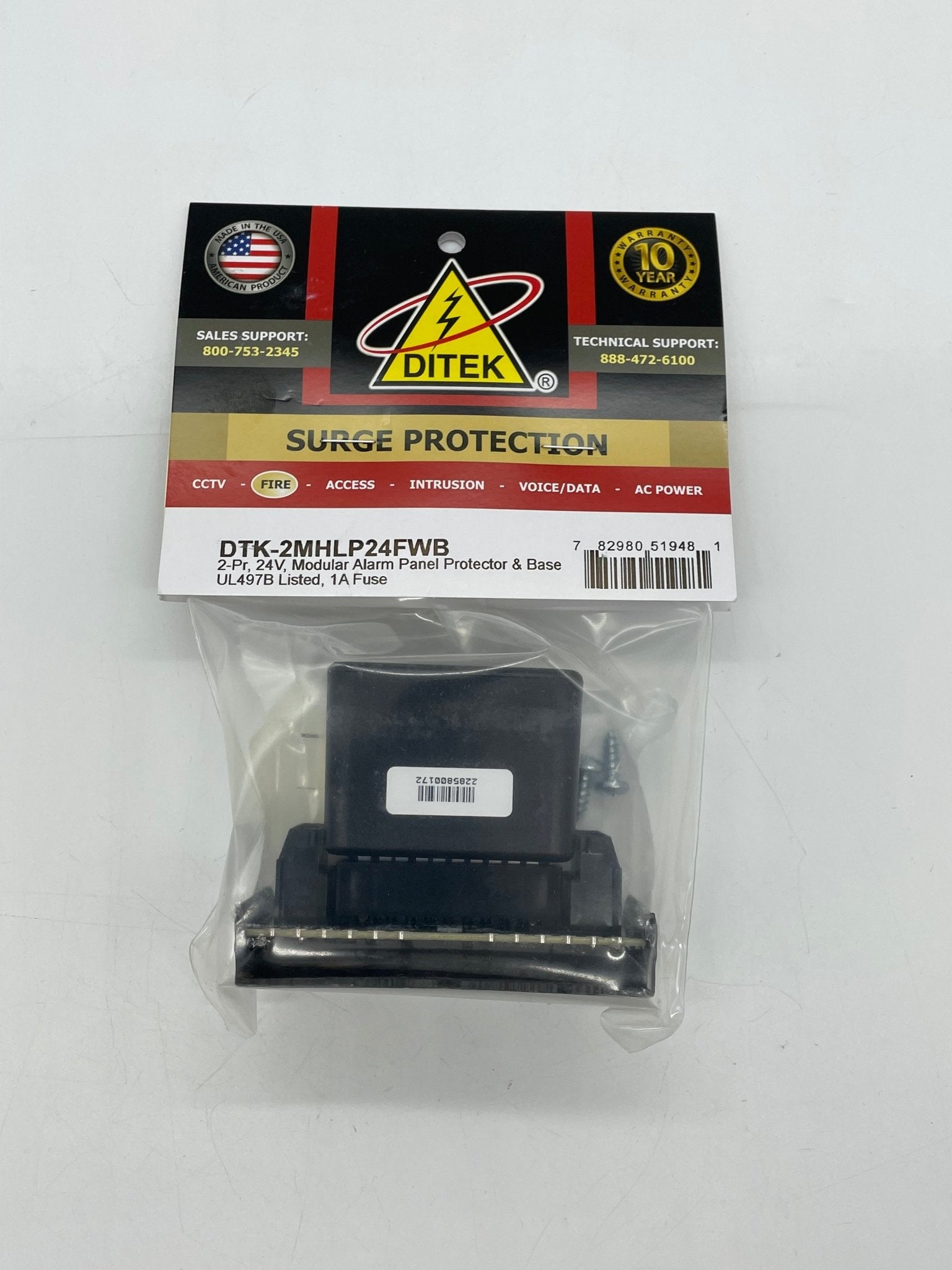

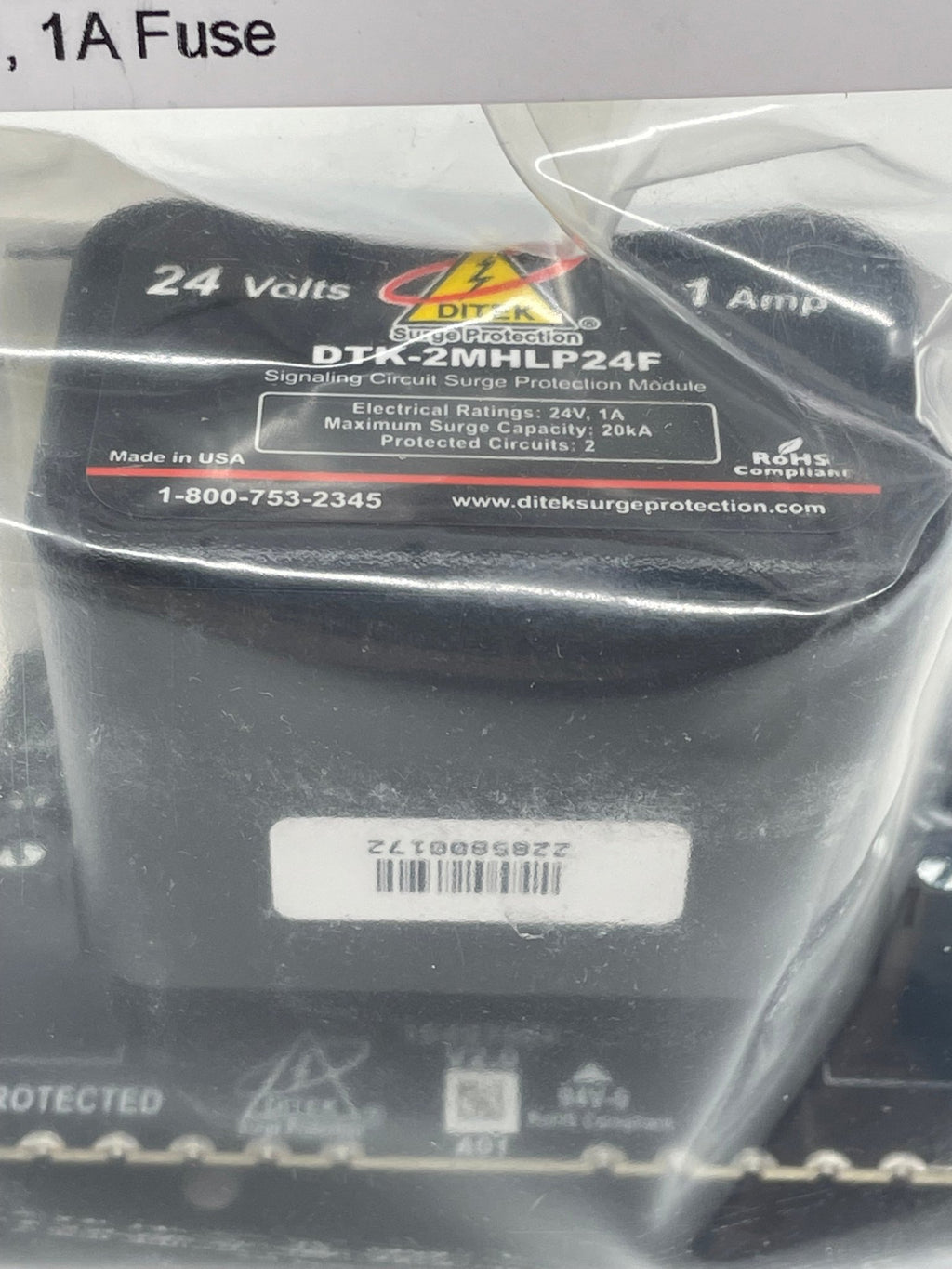

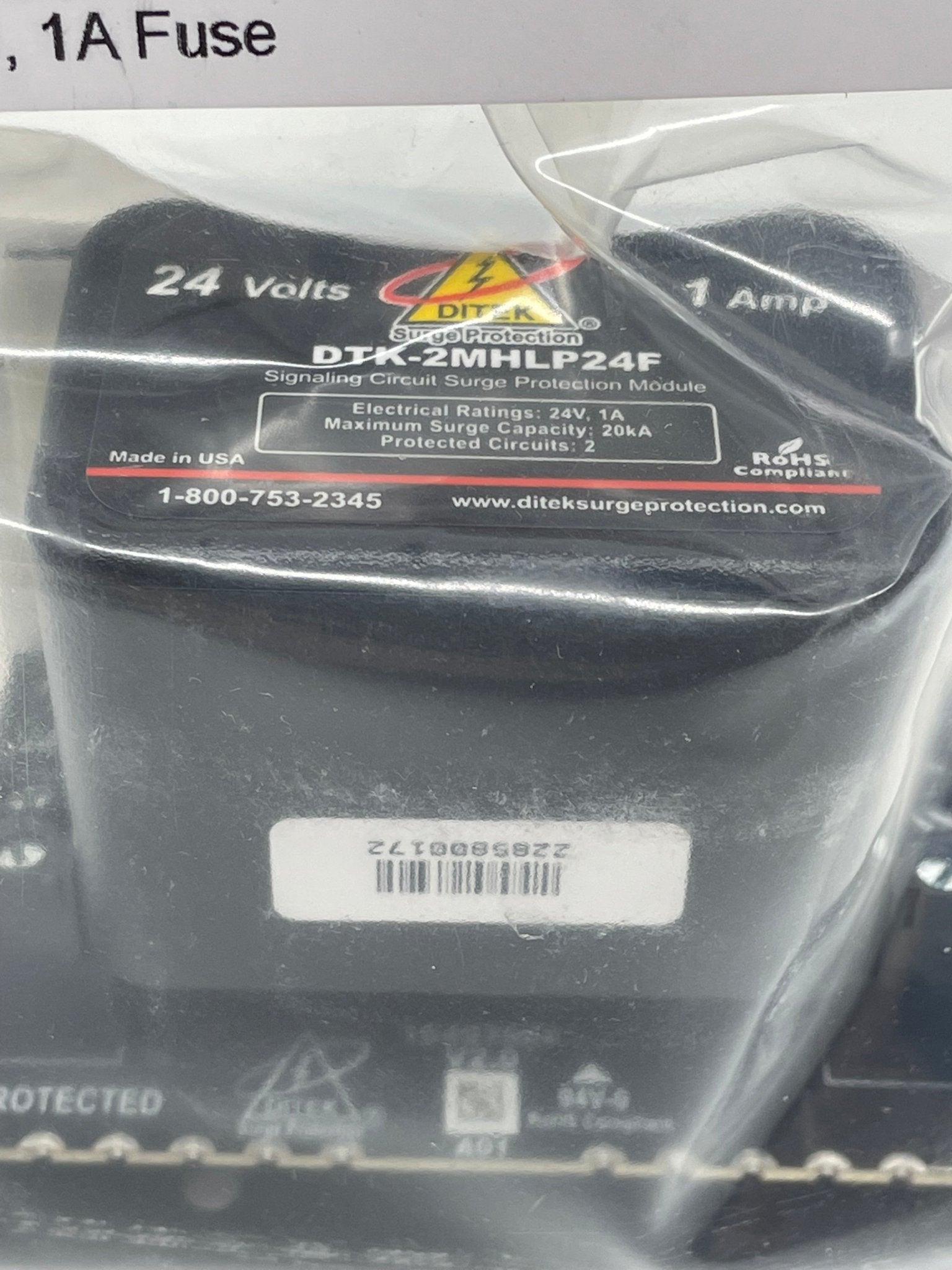

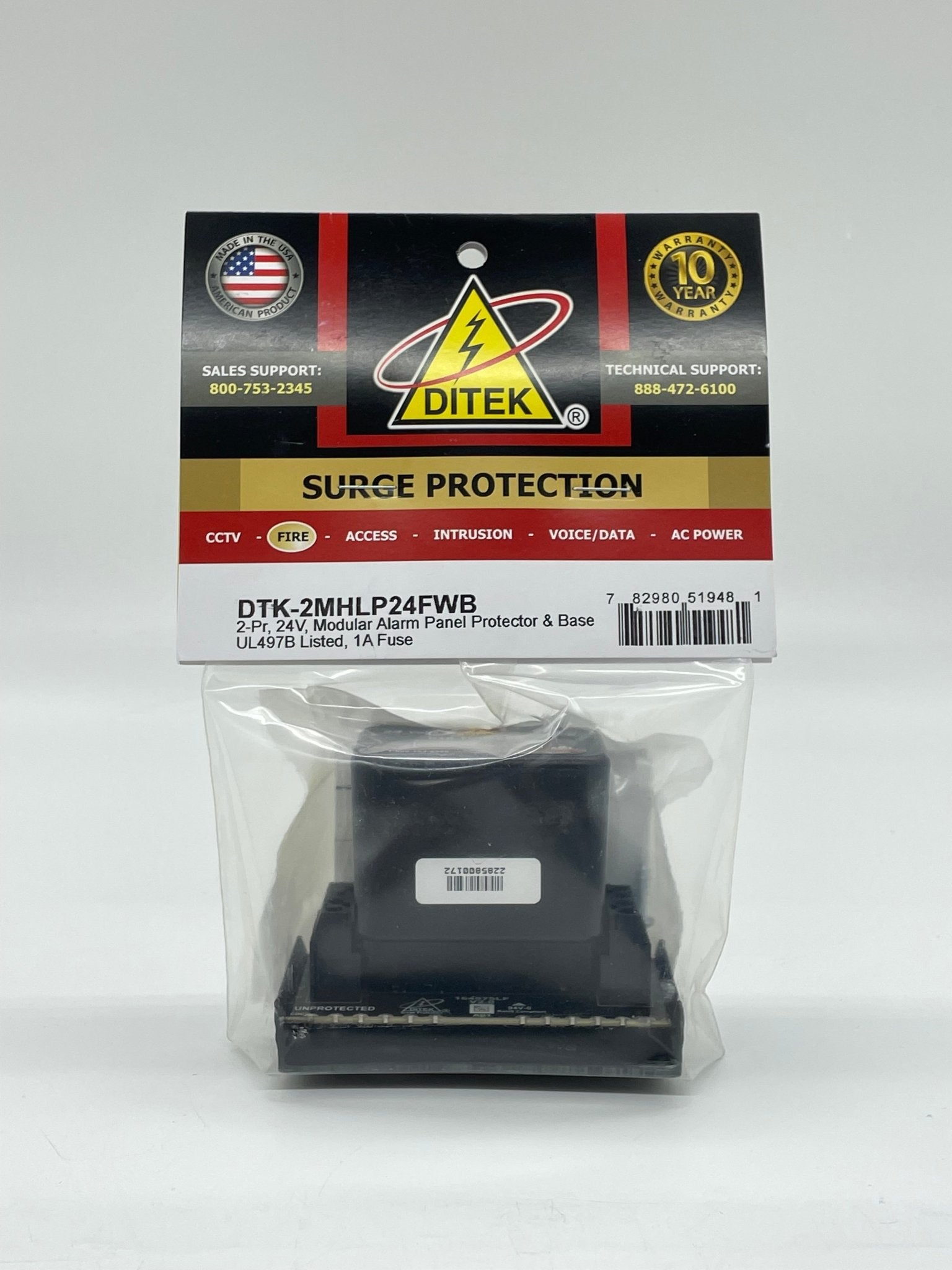

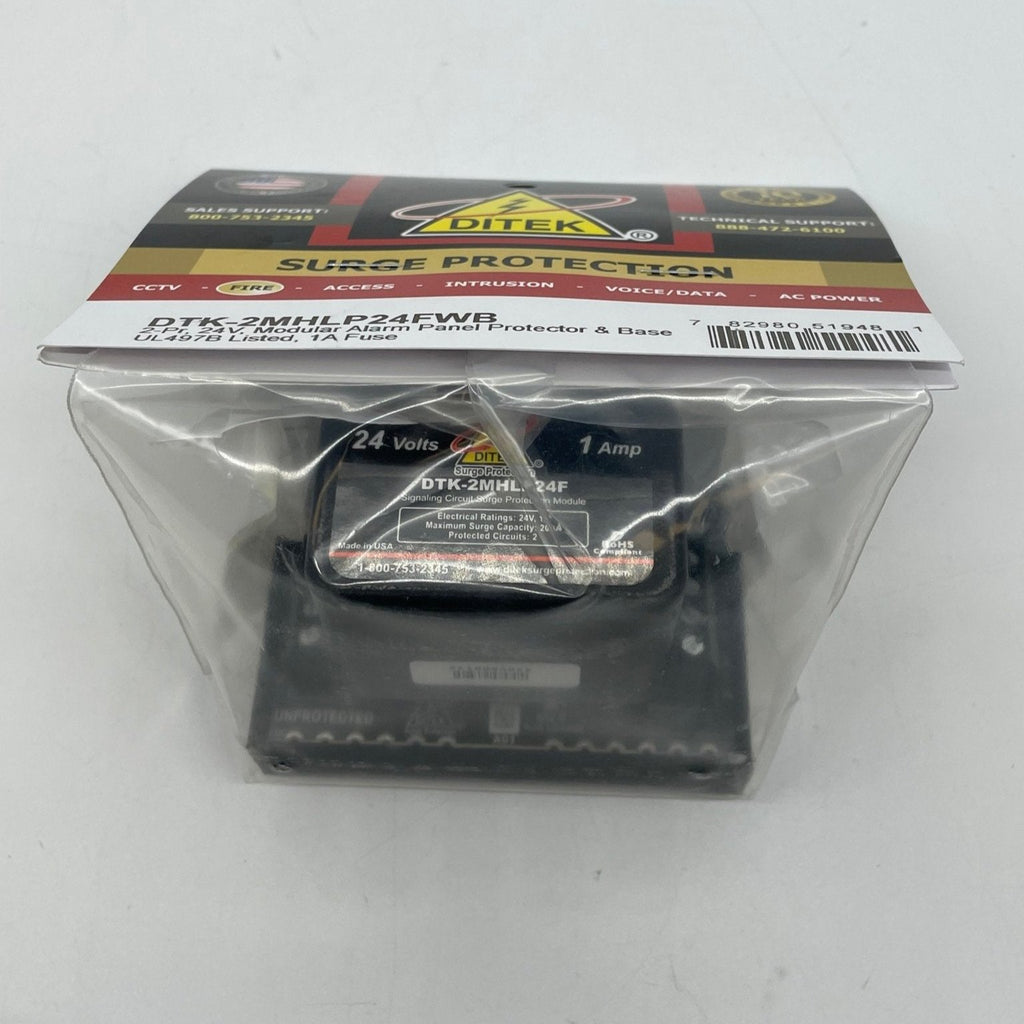

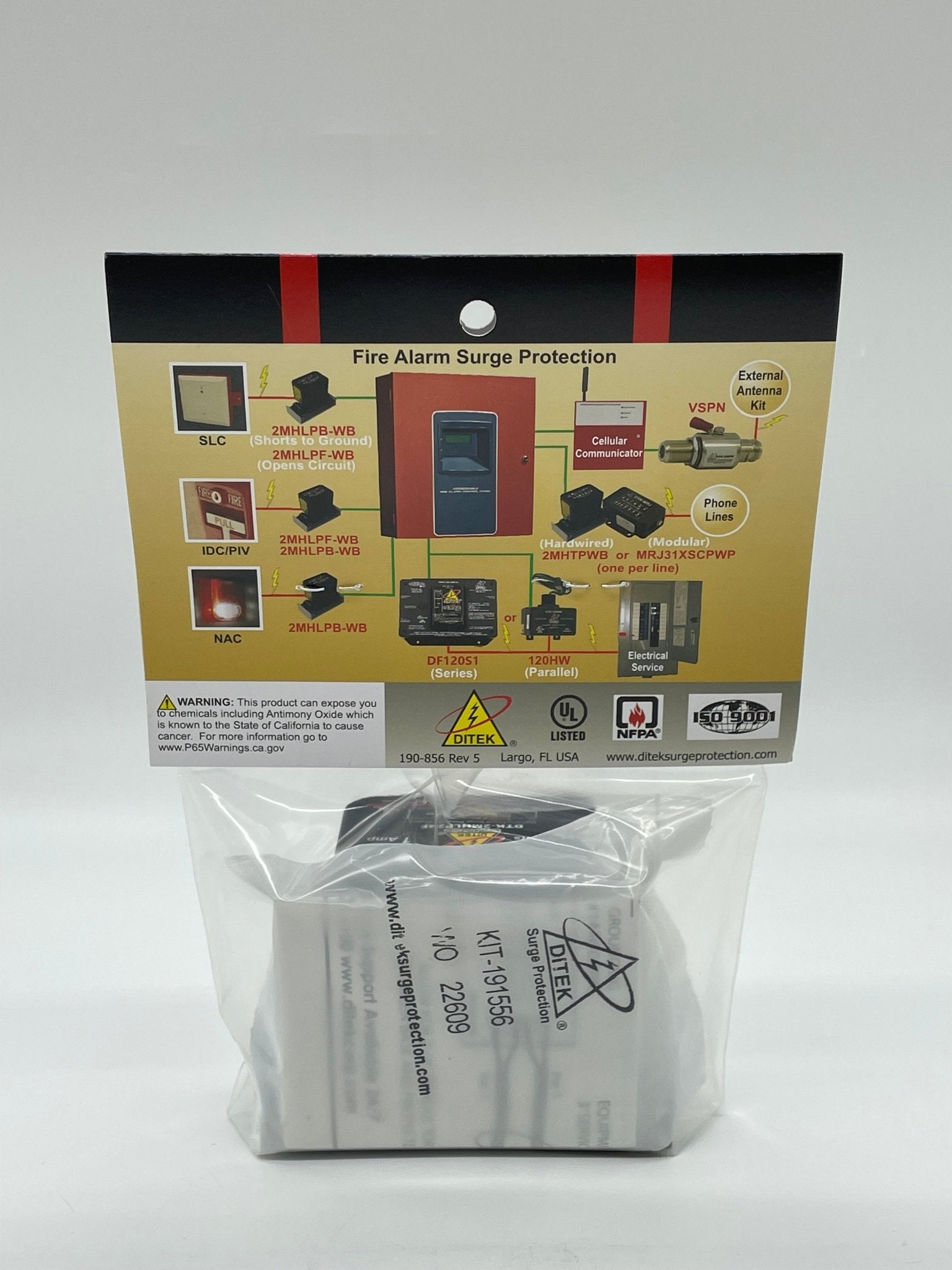

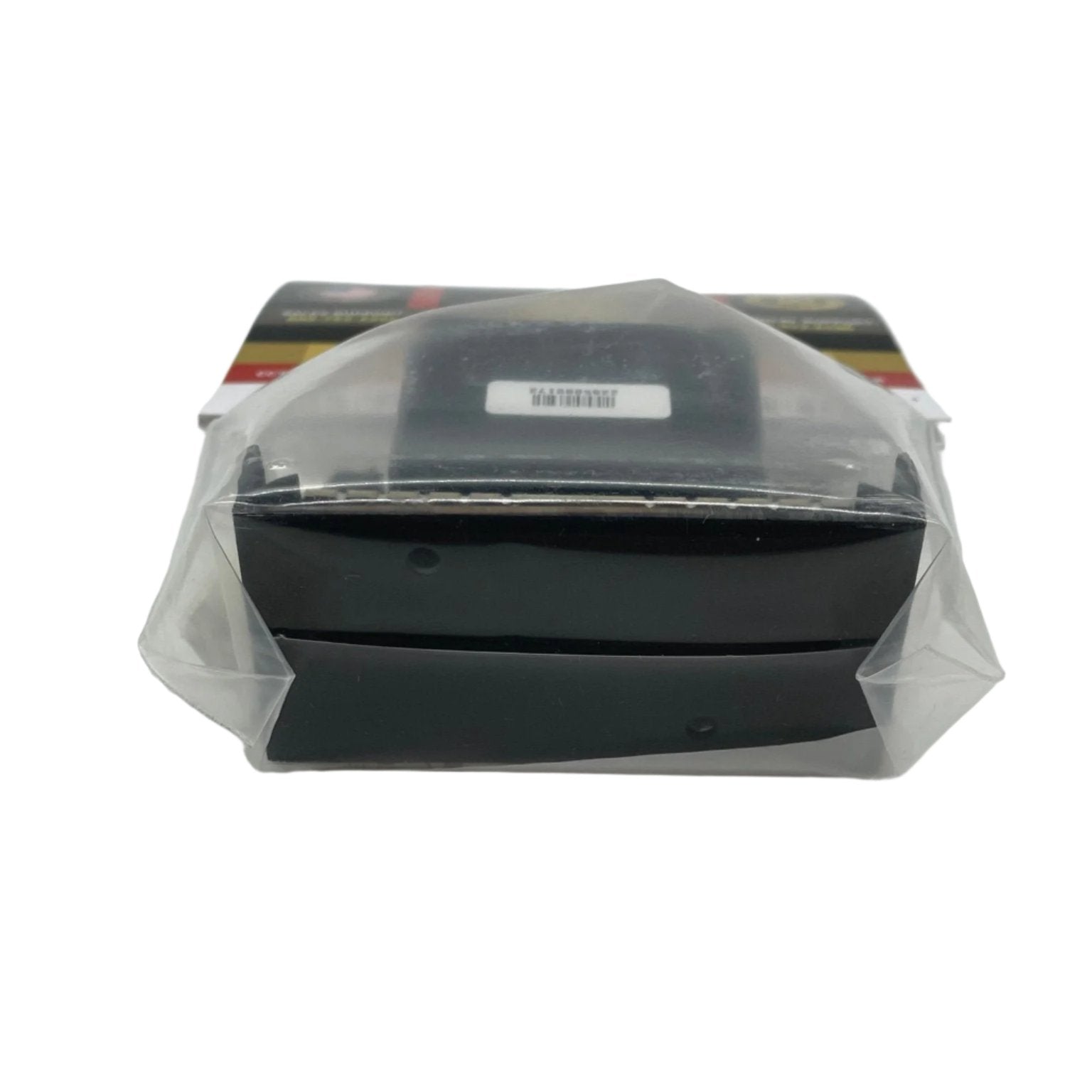

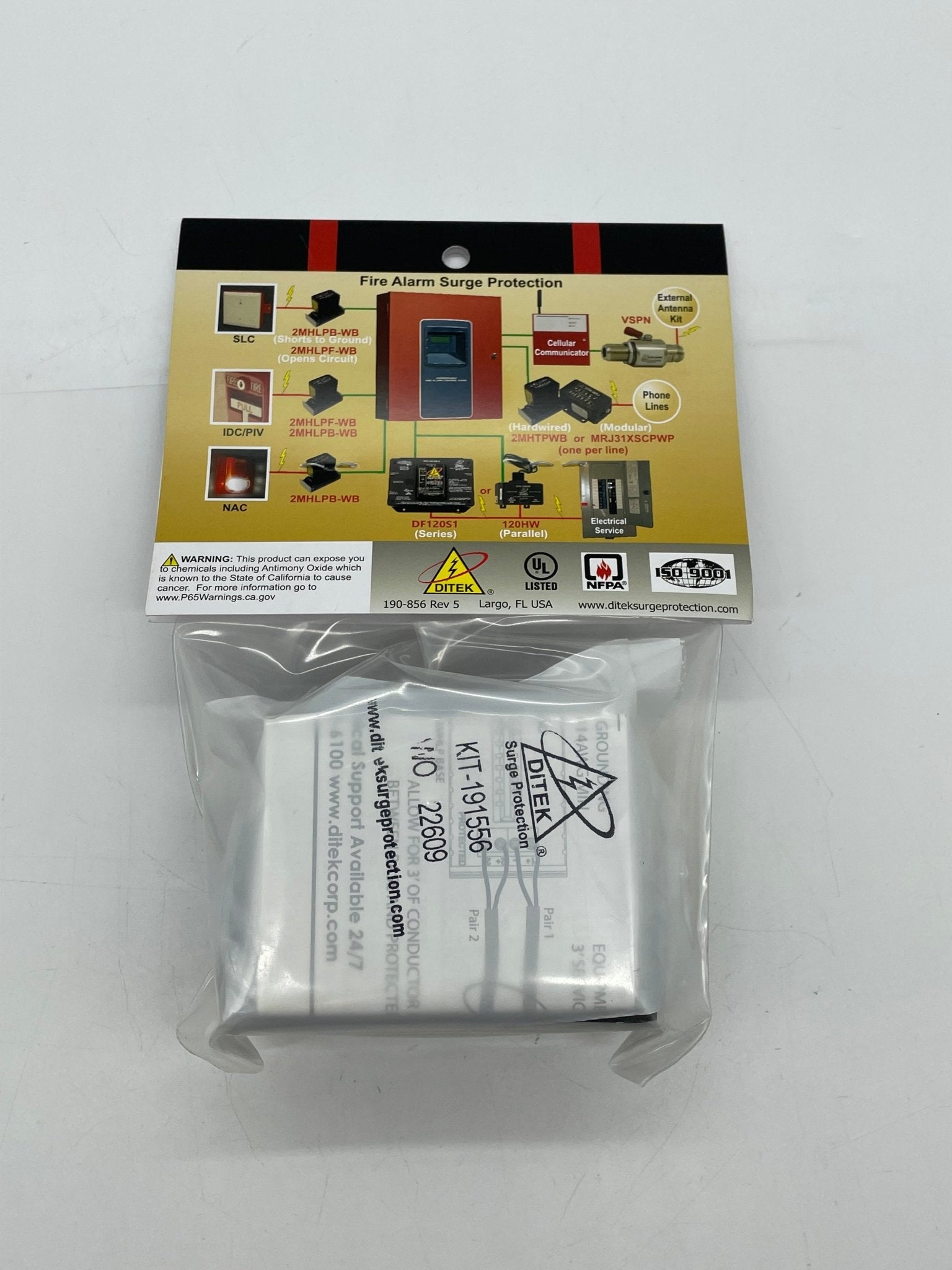

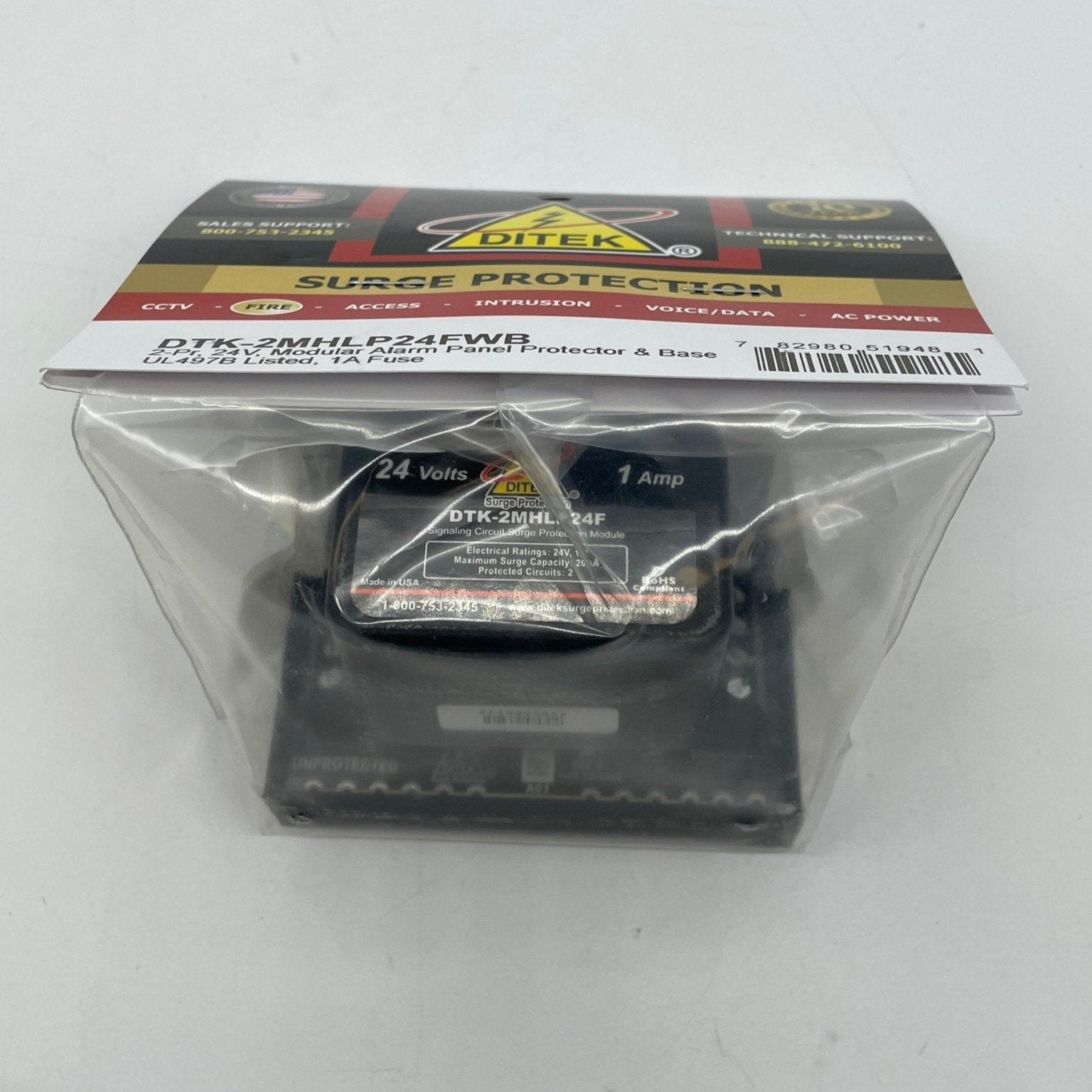

DITEK DTK-2MHLP24FWB — 24 V modular surge protector for two low voltage circuit pairs, supplied with the single-position DTK-MB10 base that the WB suffix denotes.
It wires in series between field wiring and equipment, with unprotected and protected terminals on opposite sides of the base and a shared ground point. The module is a hybrid of TVS diode and gas discharge tube stages on a hot-swappable edge-card connector, so a sacrificed one is swapped without touching the wiring.
- Service voltage 24 VDC, MCOV 33 V, clamping 39 V
- Surge current rating 20,000 A; maximum continuous current 1 amp; failure mode open circuit
- Differential and common mode protection, two pairs per module
- UL 497B certified, RoHS
- Screw terminals 30 to 12 AWG, ABS housing, minus 40°F to 158°F
- 3.25" × 1.5" × 2.65" on the DTK-MB10 base, 4 oz
DTK-2MHLP24BWB is the trap here: same 24 V service voltage, same 33 V MCOV, same 39 V clamping and same 20,000 A rating, but it carries 5 amps and fails short to ground rather than open. DTK-2MB through DTK-5MB replace the MB10 for two to five modules on one ground.
Documents
FAQ
What is the difference between the FWB and BWB versions?
DITEK specifies DTK-2MHLPxxFWB modules for hardwired series circuits that operate at less than 1 A, and DTK-2MHLPxxBWB modules for circuits under 5 A, both for 5 to 75 V circuits.
How is it grounded?
Connect the base ground terminal with at least 14 AWG wire, kept as short as possible. Maximum ground resistance is 25 ohms, with 5 ohms or less optimum, and it must be measured.
How far from the equipment should it be installed?

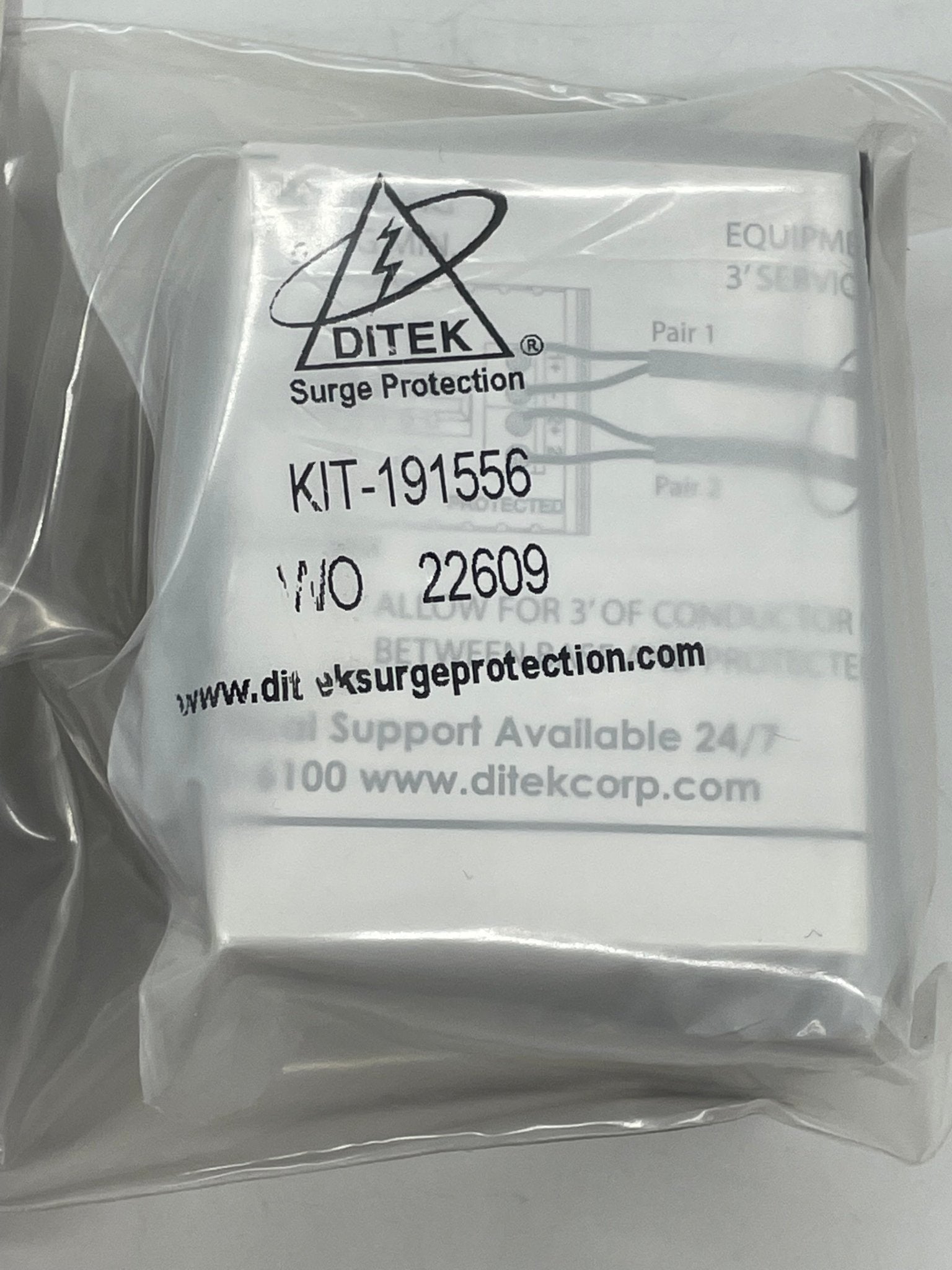

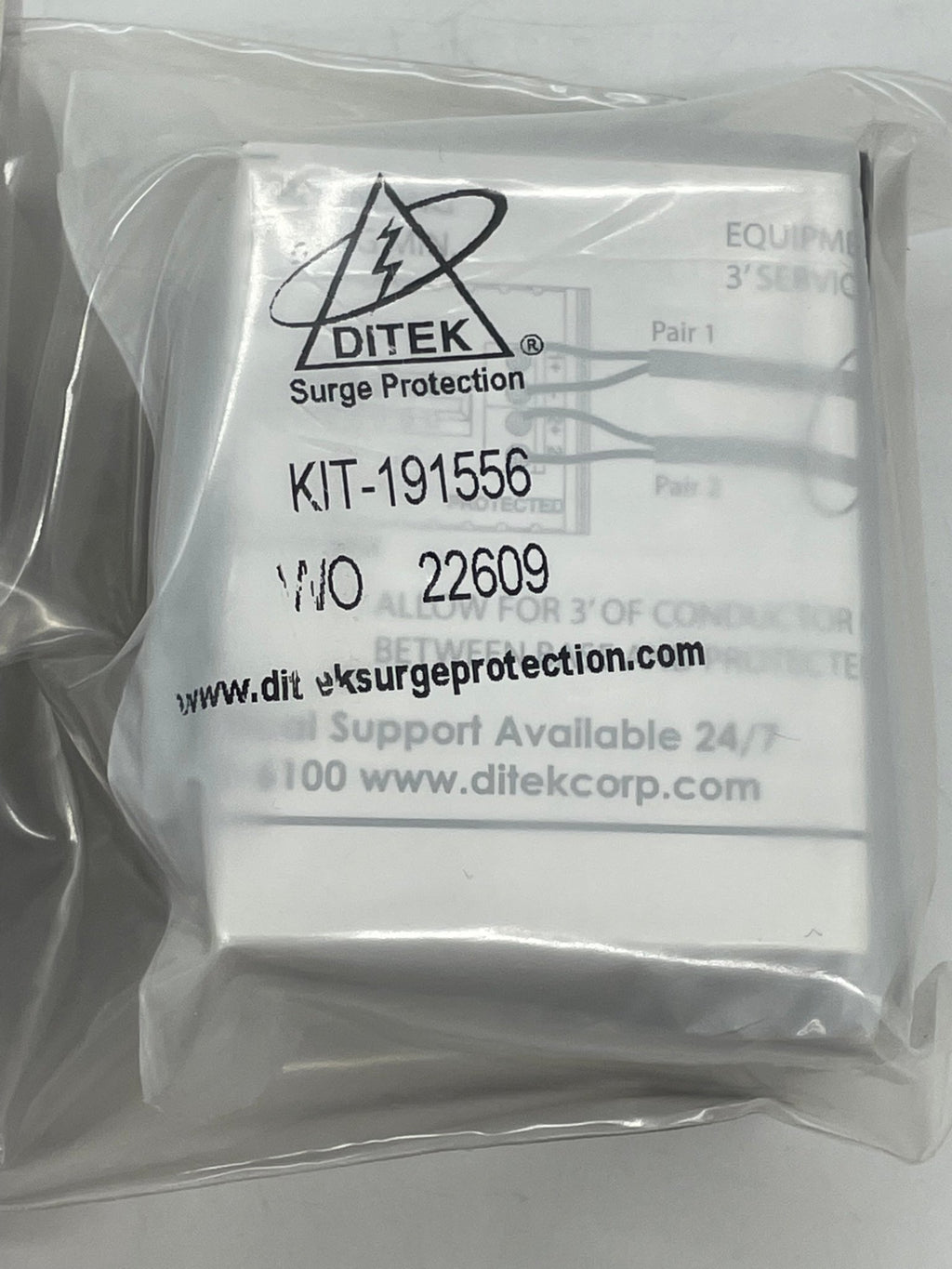

Allow about 3 ft of conductor between the base and the protected equipment; a coiled service loop is acceptable.
Can several modules share one base?
Yes. The DTK-MB10 is the one-module base; the DTK-2MB, 3MB, 4MB and 5MB hold two to five modules at one point of use.
