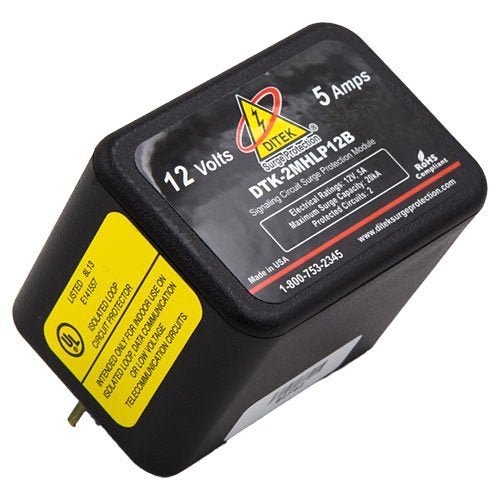

DITEK DTK-2MHLP12B is a hybrid surge protection module for two 12V circuit pairs, in a field-replaceable package. It plugs into snap-track bases, which are required.
With the bases, up to 10 pairs can be protected with a common ground. The module uses multi-stage silicon avalanche diode (SAD) technology and an edge-card connection with single-point ground for fast installation.
Features
- Protects two 12V pairs per module
- Multi-stage SAD protection
- Field-replaceable modular edge-card connection
- Single-point ground for fast installation
- Snap-track bases required; up to 10 pairs on a common ground
- NDAA and TAA compliant, RoHS
Specifications
| Type |
Hybrid surge protection module |
| Circuit voltage |
12 V DC |
| Pairs per module |
2 |
| Height |
1.6 in. |
| Width |
2.1 in. |
| Depth |
1 in. |
| Compliance |
NDAA, TAA, RoHS |
