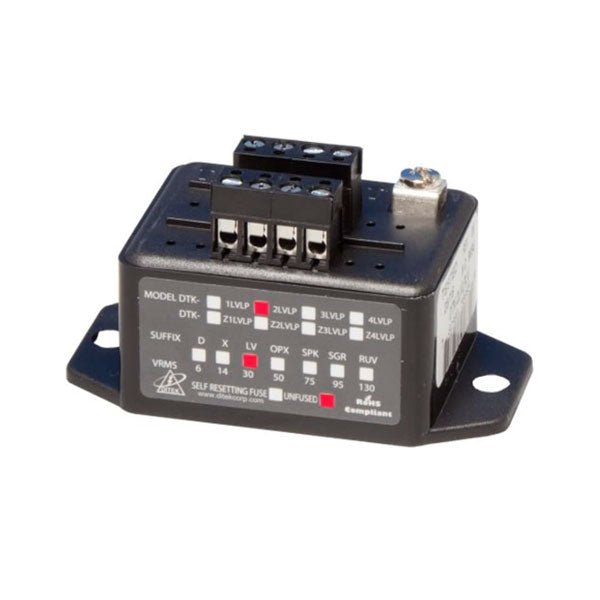

DITEK DTK-2LVLPLV — two-pair low voltage surge protector for 24 VDC circuits, hardwired on screw terminals.
DITEK decodes the code in its own table: DTK-2LVLP or DTK-4LVLP sets the pair count and the trailing letters set the voltage level, LV being 24 VDC. Its Part Number Examples block gives "DTK-2LVLPLV 2 pairs, 24Vdc" outright. The unit is wired in series with the circuit, field wiring to the IN side and equipment to the OUT side, but functions in parallel and adds no resistance.
- 24 VDC service voltage, 33 V MCOV, 39 V clamping voltage
- Surge current rating 5,000 A; maximum continuous current 5 amps
- Differential mode line to line and common mode line to ground
- Screw terminals 30 to 12 AWG; ABS housing; 3.3 × 1.55 × 1.1 in., 3.2 oz
- Operating temperature -40°F to 158°F; humidity 95% non-condensing
- UL 497B certified, RoHS compliant, 10 year limited warranty
The siblings differ only in that voltage suffix and are not substitutes on a 24 V circuit: D is 5 VDC, X is 12 VDC, OPX is 48 VDC, RUV is 130 VDC. DTK-4LVLPLV is the four-pair version, and DIN rail mounting uses kit DTK-DRK.
