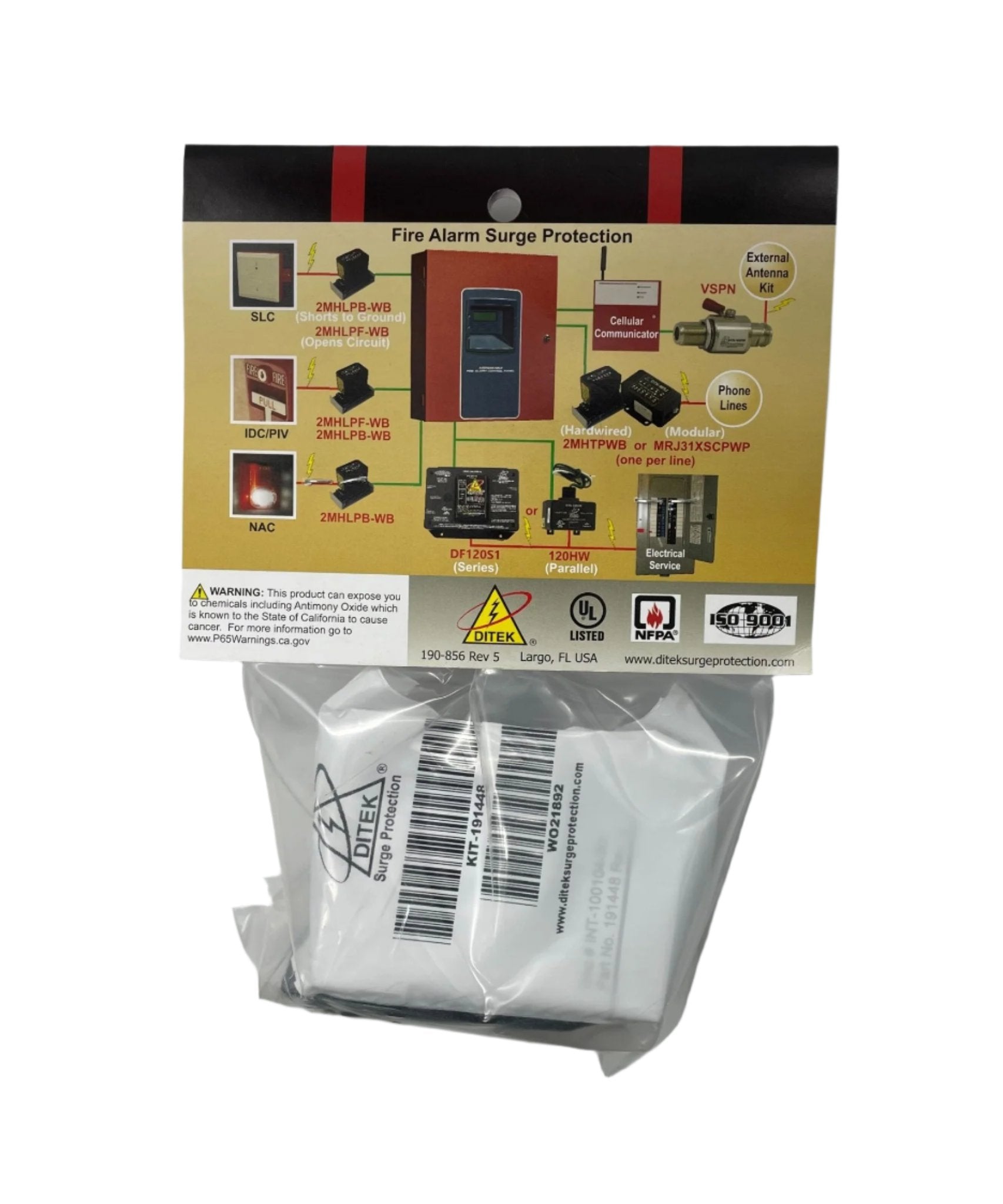

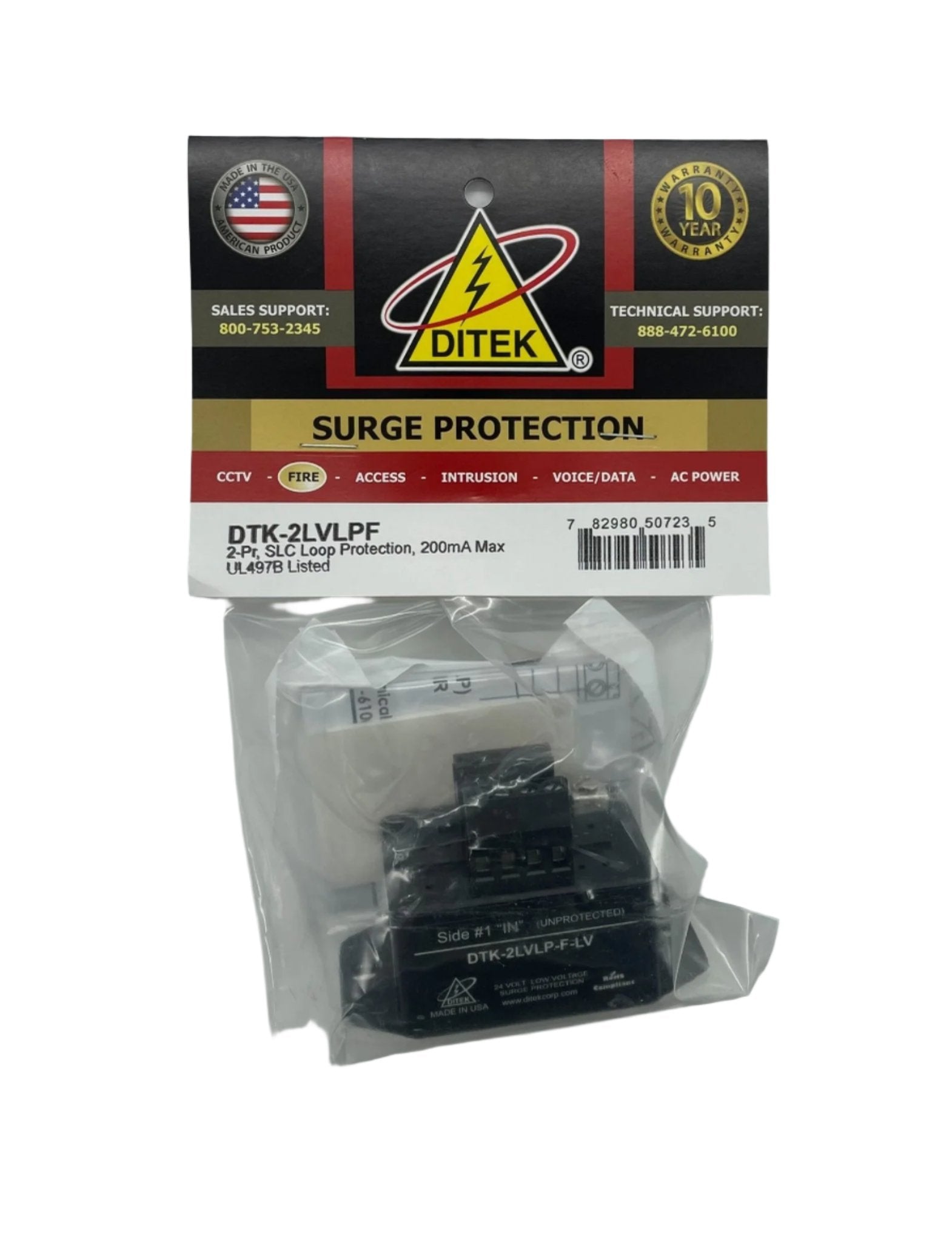

DITEK DTK-2LVLPF — surge protector for 24 V fire alarm signaling line circuits, protects up to 2 pairs.
The DTK-2LVLPF protects SLC and other 24 V low-voltage circuits on a fire alarm control panel from surge and provides current-limiting. Fire alarm field wiring runs long distances through a building and often between buildings, which makes it an effective antenna for lightning-induced and switching transients; the panel electronics at the end of that run are what fails.
It installs in series while functioning in parallel, so it adds no resistance to the loop — important on an SLC, where added line resistance eats into the allowable run length.

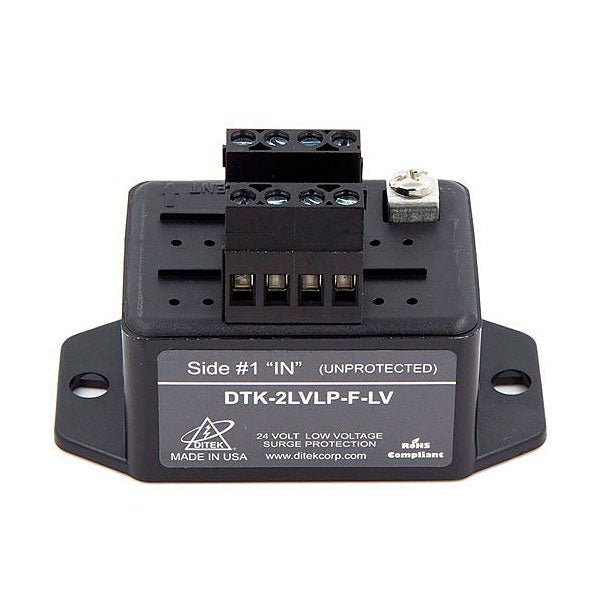

Surge current rating 5,000 A, maximum continuous current 5 A, service voltage 24 VDC with 33 V MCOV and 39 V clamping, differential-mode (line-line) and common-mode (line-ground) protection. Hardwired terminals accept 30–12 AWG. ABS housing, 3.30 x 1.55 x 1.10 in. (83 x 39 x 28 mm). Operating range -40°F to 158°F at up to 95% RH non-condensing. UL 497B certified.
Documents
FAQ
How many circuits does it protect?
Up to two pairs of SLC wiring.
Does it add resistance to the loop?
No. It uses a series connection with a parallel function, so it adds no resistance to the circuit.
Can it be DIN rail mounted?
Yes, with the DTK-DRK DIN rail mounting kit, which DITEK lists as an accessory.
What is the warranty?
DITEK gives a 10-year limited warranty.
