Ditek DTK-240HW 240VAC 20A Parallel Protector UL1449 Certified SPD Type 1

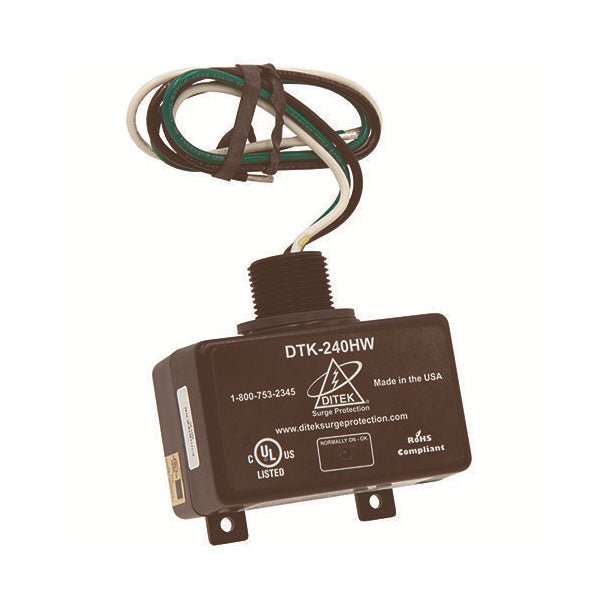

The DTK-240HW is a compact, parallel-mount Type 1 surge protective device for dedicated 240/277 VAC single-phase (2 wire + ground) branch circuit loads. It belongs to the DTK-HW series used on fire alarm panels, control panels, gate motors and lighting circuits. A diagnostic LED indicates system power, ground presence and SPD function.
Key Features
- UL 1449 Certified Type 1 SPD (also CSA C22.2 No. 269.1)
- 50,000 A surge current rating
- Approved for 20 A circuit breakers
- Diagnostic LED for power, ground presence and SPD function
- NEMA 4X polycarbonate enclosure
- 3/4 in. NPT male hub with 18 in. 12 AWG wire leads
- Optional flush mount kit DTK-FMK
- 10-year limited warranty
Specifications
| Service voltage |
240/277 VAC single phase (2W + G) |
| Surge current rating |
50,000 A |
| Nominal discharge current (In) |
10 kA |
| Short circuit current rating (SCCR) |
100,000 A |
| MCOV |
320 V / 640 V |
| Voltage protection rating (VPR) |
1200 V L-N, 1200 V L-G, 2000 V N-G |
| Operating temperature |
-31 to 176 F (-35 to 80 C) |
| Dimensions |
3.47 x 2.08 x 1.89 in. (88 x 53 x 48 mm) |
| Weight |
8.8 oz (249 g) |
Compatible With
- Fire alarm control panels
- Control panels, gate motors and lighting on dedicated 240 VAC circuits
