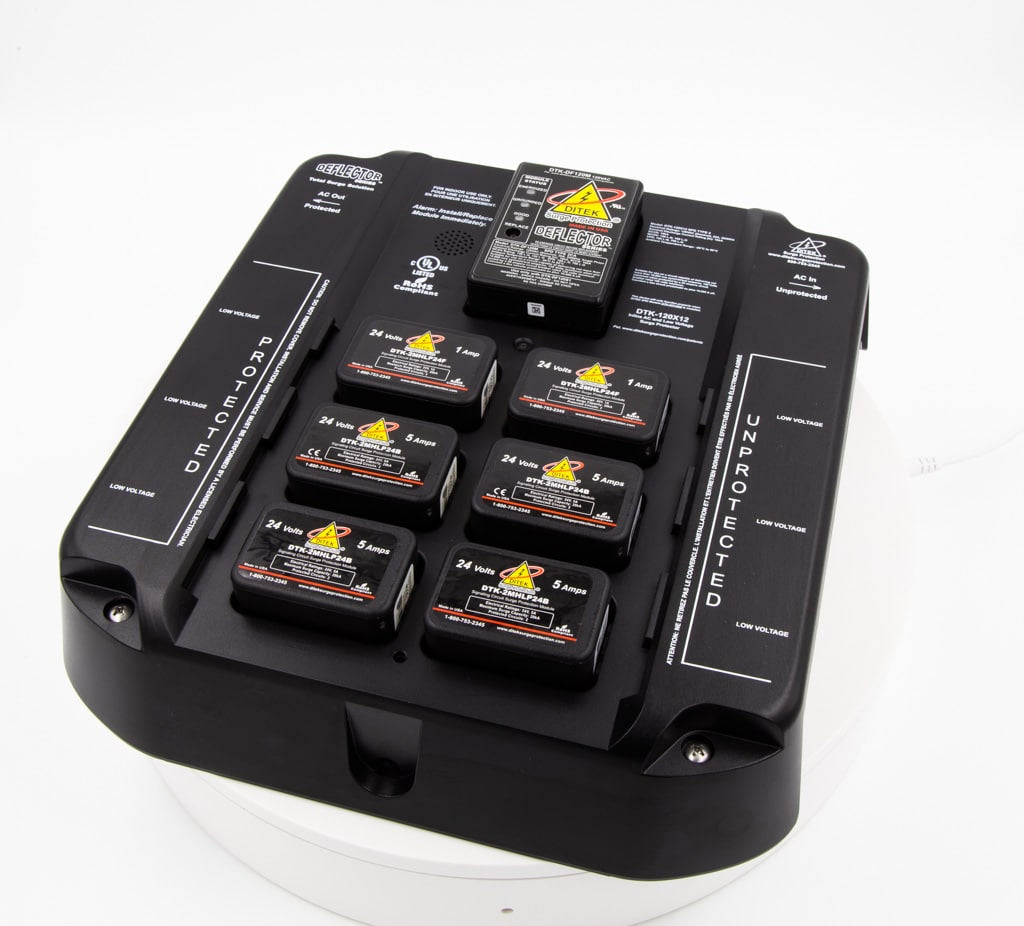

DITEK DTK-120X12 is a DITEK surge protection combination unit that pairs a 120V AC SPD (20A maximum) with a 6-position base for replaceable low-voltage surge modules. It protects system power and up to twelve pairs of SLC, IDC/PIV, NAC, network or dialer circuits.
It ships with a DTK-DF120M replaceable 120V AC module. Adding DTK-2MHLP or DTK-2MHTP modules to the base completes data, signal and dialer circuit protection for a fire alarm system.
Features
- Audible alarm with Form C dry contacts; the alarm can be silenced with the included time delay switch (24 hours)
- 6-position base for 2MHLP/2MHTP modules
- Pre-drilled openings: 3/4" NPT for AC power conduit, one 3/4" and two 1/2" NPT for low-voltage conduit
- Low-voltage module cover ships blank so an installer logo sticker can be applied
- UL 1449 Type 2 SPD; UL 1283 EMI/RFI certified
Specifications
| Power protection |
120V AC, 20A maximum |
| Circuits protected |
Up to 12 pairs (SLC, IDC/PIV, NAC, network, dialer) |
| Material |
ABS |
| Height |
2.3" |
| Width |
10" |
| Operating temperature |
-4°F to 140°F |
| Compliance |
NDAA, TAA, RoHS |
Documents
FAQ
What does the DTK-120X12 protect?
It is a series connected surge protective device for 120 VAC power plus up to 12 individual low voltage circuits, with a replaceable surge module for the AC side.
What is the AC rating?
The replaceable DTK-DF module is rated 120 VAC, 20 A, 50/60 Hz single phase, with 10 kA nominal discharge current and 10 kA SCCR, protected by a 20 A breaker.
Which modules fill the low voltage base?
DTK-2MHLP or DTK-2MHTP plug-in modules, chosen for the circuit voltage.
