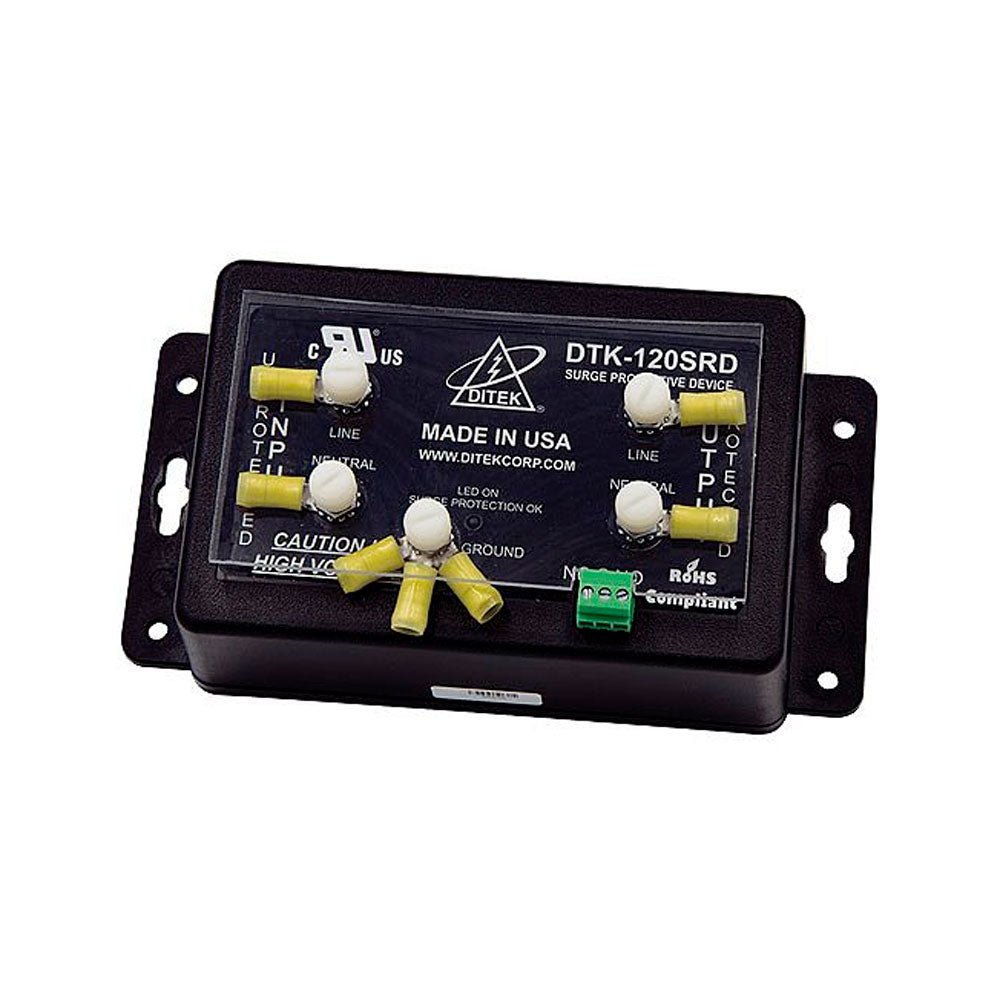

DITEK DTK-120SRD — series-wired 120 Vac surge protective device with a 50,000 A surge rating and Form C dry contacts.
It wires in series between the branch circuit and the load, so the whole supply current passes through it and the protection sits directly ahead of the equipment rather than in parallel across a panel. The install sheet asks for three feet of conductor to the protected equipment.
- 120 Vac single phase, MCOV 150 V, maximum continuous current 20 amps
- Surge current rating 50,000 A; nominal discharge current 10 kA; SCCR 10,000 A
- Voltage protection rating 600 V line-ground, 600 V line-neutral, 1000 V neutral-ground
- EMI and RFI attenuation up to 35 dB from 100 kHz to 100 MHz; 50/60 Hz
- UL 1449 5th Edition Type 2CA, UL 1283, CSA C22.2 No. 269.4-17 Type 4-2 SPD
- ABS housing, 6.88 × 3.7 × 1.9 in., 15.2 oz.; minus 31 °F to 104 °F
Its sibling DTK-120SLR matches it on voltage, current and the 50,000 A rating but differs where it counts: it disconnects power to the load if compromised, reports by LED with no dry contacts, and carries a 1200 V neutral-ground VPR.
Documents
FAQ
How is the DTK-120SRD wired?
It is a series-wired surge protective device for dedicated 120 VAC branch circuits, installed between the supply and the protected equipment, on a circuit protected by a 20 A breaker.
How do I monitor its status?
A diagnostic LED shows system power and SPD function, and Form C dry contacts give remote notification of surge protection status, for example to a fire alarm panel input.
Can it be DIN rail mounted?
Yes, with the optional DTK-DRK DIN rail mount kit. It is meant to be mounted inside an end-product enclosure with the supplied safety cover.
What is the warranty?
DITEK gives a 10-year limited warranty.
