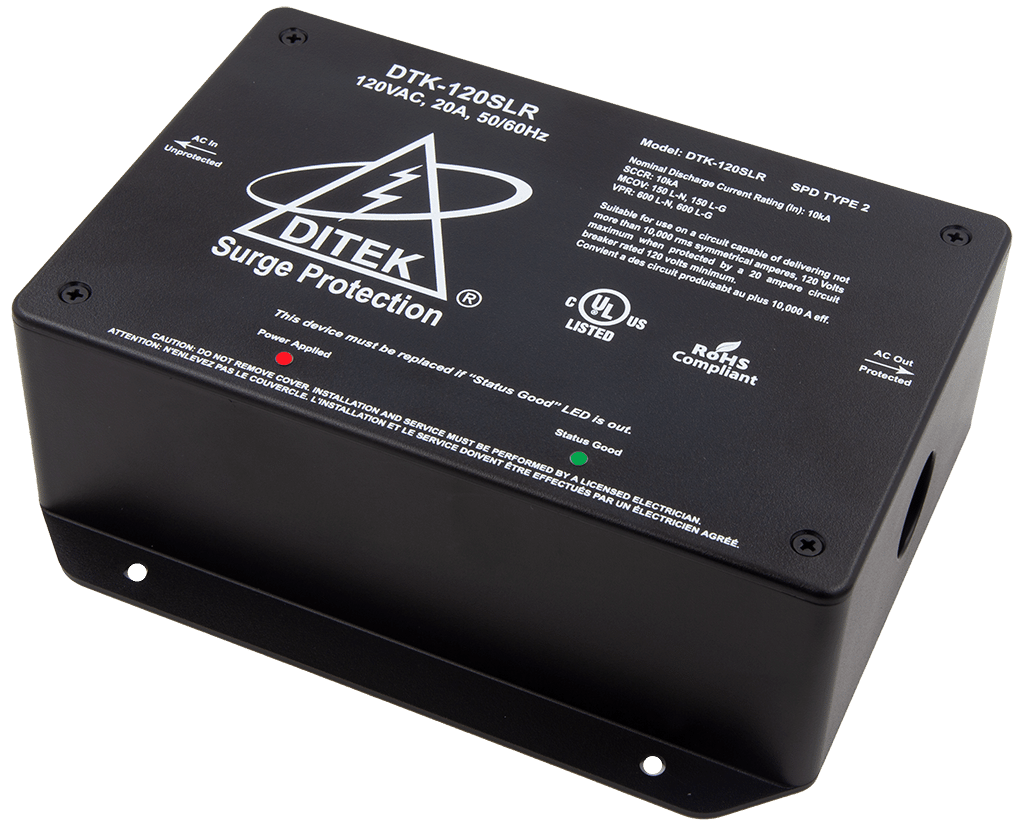

DITEK DTK-120SLR is a series-connected 120V AC surge protector with load removal, rated for single-phase circuits up to 20A. It is used on power that feeds fire alarm control panels, gate motors and other critical equipment.
If the protection is compromised, the unit disconnects power to the equipment it serves. It is a UL 1449 Type 2 SPD.
Features
- Series-connected design for fast response
- Disconnects equipment if the surge protection is compromised
- UL 1283 EMI/RFI filtering for cleaner power
- Diagnostic LEDs show system power and SPD function
Specifications
| Voltage |
120V AC, single phase |
| Current |
Up to 20A |
| Height |
2.2" |
| Width |
5.2" |
| Compliance |
UL 1449 Type 2; NDAA, TAA, RoHS |
