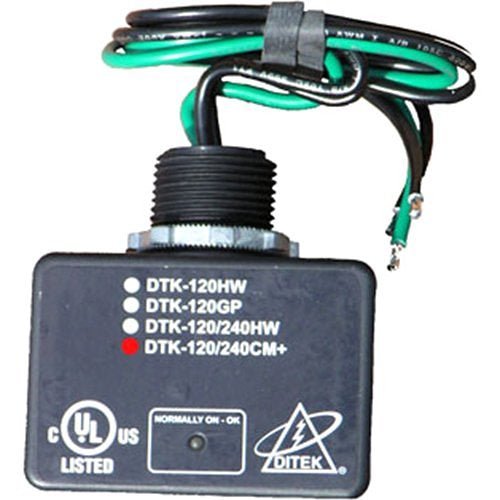

DITEK DTK-120/240CM+ — parallel surge protective device for 120/240 VAC split phase service, rated 50,000 A surge current.
Condensing units, air handlers and pool control panels sit on a split phase feed and see utility transients directly. It threads into a 3/4 in. knockout and ties in parallel across L1, L2 and ground, clamping surges without carrying load current.
- UL 1449 5th Edition Type 1 SPD; CSA C22.2 No. 269.1-17 Type 1
- 50,000 A surge current, 100,000 A SCCR, 10 kA nominal discharge current
- MCOV 150V/300V; VPR 700 V line to ground, 1200 V line to line
- Service L1 to G 120 VAC, L2 to G 120 VAC, L1 to L2 240 VAC, 50/60 Hz
- Supply not over 10,000 rms symmetrical amperes, on a 20 A breaker
- NEMA Type 4X polycarbonate, 3.47 " × 2.08 " × 1.89 ", –31 to 176 °F
Do not substitute the single phase DTK-120HW, which protects a 120 VAC two-wire-plus-ground branch and carries neutral modes this device lacks. DTK-240HW is 240/277 VAC; DTK-120/240HW is the three-wire split phase HW model. This part targets HVAC; the HW series is what DITEK points at fire alarm panels.
Documents
FAQ
What applications is it designed for?
DITEK lists inverter-driven HVAC systems, condensing units, air handlers, ductless HVAC systems and pool control panels.
How is it connected?
Through a 3/4 in. NPT male hub with 18-inch 12 AWG wire leads.
What are its ratings?
50,000 A surge current, 100,000 A SCCR, 10 kA nominal discharge current, MCOV 150 V/300 V, and VPR of 700 V line-ground and 1200 V line-line.
Can it be flush mounted?
Yes, with the DTK-FMK flush mount kit, which DITEK lists as an accessory.
