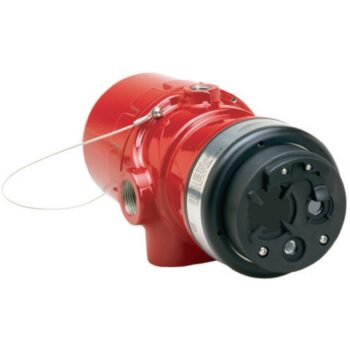

The Det-Tronics X9800A4M11W1 (part number 008701-001) is an X9800 single-frequency infrared flame detector. Per the X9800 model matrix it has a copper-free aluminum housing, four M25 conduit ports, relay outputs, FM/CSA/ATEX/IECEx approvals and a Division/Zone Ex d e classification. TDSA signal analysis rejects false alarms, and heated optics resist moisture and ice.
Specifications
| Model |
X9800A4M11W1 |
| Housing |
Aluminum |
| Conduit entries |
4 x M25 |
| Outputs |
Fire, fault and auxiliary relays, 5 A at 30 VDC |
| Operating voltage |
24 VDC nominal (18-30 VDC) |
| Power |
2.1 W at 24 VDC nominal |
| Spectral range |
4-5 microns |
| Field of view |
90° cone |
| Operating temperature |
-40°F to +167°F |
| Enclosure |
Type 4X, IP66/IP67 |
| Approvals |
FM, CSA, ATEX, IECEx |
| Warranty |
3 years |
Features
- Automatic, manual and magnetic oi (optical integrity) testing; no external test lamp required
- Responds to fire in the presence of modulated blackbody radiation from heaters, ovens and turbines
- Tricolor faceplate LED for normal, fire and fault
- MODBUS RS-485 communication and built-in event logging
- Class A wiring per NFPA 72
- Typical applications: dirty environments, petrochemical, automotive, powder coating, turbines
Related models
Other X9800 versions use stainless steel housings, 3/4" NPT entries, or add 0-20 mA, HART, pulse or Eagle Quantum Premier outputs. A Q9033 mounting arm is required: 007290-002 (Q9033A, aluminum only) or 007290-001 (Q9033B).
Documents
FAQ
Is a mounting arm included?
No. A Q9033 mounting arm is required: Q9033A (007290-002) for aluminum detectors only, or Q9033B (007290-001) for aluminum and stainless steel detectors.
What outputs does this model have?
The "11" output code means relay outputs: fire (Form C), fault (Form A) and auxiliary (Form C), each rated 5 A at 30 VDC.
What supply voltage does it need?
24 VDC nominal, 18 VDC minimum and 30 VDC maximum.
Does it need a test lamp?
No. The automatic oi test runs once per minute, and testing with an external test lamp is not approved or required.
