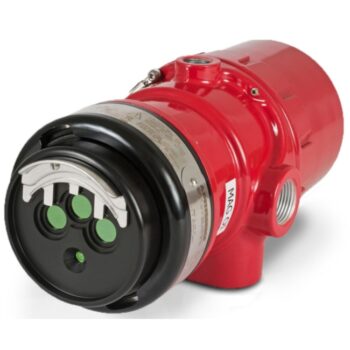

Det-Tronics X3302A4N23T1 (part number 029032-001) is an X3302 multispectrum infrared (MSIR) flame detector designed for hydrogen fires. Hydrogen produces mostly water vapor and little or no carbon dioxide when it burns, so the X3302 focuses on the water-band IR emissions of the flame to detect fires that traditional UV and UVIR detectors struggle to see, while rejecting sunlight, artificial light, lightning and blackbody radiation.
In the X3302 model matrix, this version is an aluminum detector with four 3/4 in. NPT conduit entries, HART plus relay and 0–20 mA outputs, SIL/FM/CSA/ATEX/IECEx approvals and a Division/Zone Ex d e classification. The detector is also performance approved for methanol, methane and syngas fires. Its automatic Optical Integrity (oi) feature runs a calibrated performance test once per minute, so testing with an external test lamp is not required.
Specifications
| Model |
X3302A4N23T1, part number 029032-001 |
| Detection |
Multispectrum IR, 2.4 to 3.5 micron wavelength range |
| Operating voltage |
24 VDC nominal, 18 to 30 VDC range |
| Power consumption |
4 W minimum without heater; 17 W at 30 VDC with EOL resistor and heater on maximum |
| Outputs |
Fire, fault and auxiliary relays rated 5 A at 30 VDC, plus 0–20 mA with HART |
| Field of view |
90° horizontal by 75° vertical |
| Housing |
Copper-free aluminum, 4 x 3/4 in. NPT entries |
| Humidity |
0 to 95% RH |
| Shipping weight |
7 lb (3.2 kg), aluminum |
| Approvals |
SIL 2 capable; FM, CSA, ATEX, IECEx |
| Warranty |
5 years |
Installation notes
- A Q9033 mounting arm is required: Q9033A (007290-002) for aluminum detectors only, or Q9033B (007290-001) for aluminum and stainless steel detectors
- 16 AWG or 2.5 mm² shielded cable is recommended for wiring
- Unused conduit entries take 3/4 in. NPT stop plugs
- Optional accessories include air shields, a weather shield and FOV limiters; see the instruction manual for part numbers
Related models
- X3301 multispectrum IR flame detector (for hydrocarbon fires), such as the X3301A4N11W2 (028104-035)
Documents
FAQ
Is the mounting arm included?
No. Det-Tronics lists the Q9033 mounting arm as required: the Q9033A for aluminum detectors only, or the Q9033B for aluminum and stainless steel detectors.
Do I need a test lamp to check it?
No. The automatic oi (Optical Integrity) feature performs a calibrated performance test once per minute, and testing with an external test lamp is not approved or required.
What do the characters in X3302A4N23T1 mean?
Per the X3302 model matrix: A is aluminum, 4N is four 3/4 in. NPT ports, 23 is HART, relay and 0–20 mA outputs, T is SIL/FM/CSA/ATEX/IECEx approvals, and 1 is the Division/Zone Ex d e classification.
Which fuels is it approved for?
It is designed for hydrogen fires and is performance approved for hydrogen, methanol, syngas and methane fires.
