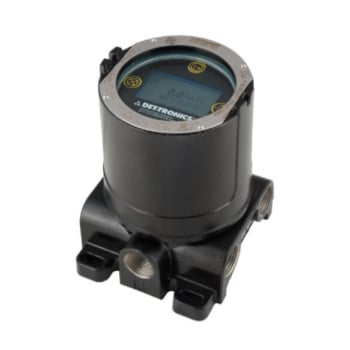

Det-Tronics UD10A5M25W2C (010254-001) is a FlexVu UD10 explosion-proof universal display unit for gas detection. It gives a digital readout of detected gas level, gas type and units, and performs all the functions of a gas controller as a stand-alone device, with a 4–20 mA output with HART, relay contacts and Modbus RS485.
Per the UD10 model matrix, this configuration has an aluminum housing (A) with five metric M25 conduit ports (5M), relay, 4–20 mA, RS485 and HART outputs (25), FM/CSA/ATEX/CE/IECEx approvals (W), Ex d flameproof classification (2) and a CGS conditioning board (C) for catalytic combustible gas sensors. The UD10 works with one detector mounted directly to the housing or remotely through a sensor termination box. Calibration and menu navigation use a magnet and four internal magnetic switches, so the unit can be configured without de-classifying the hazardous area.
Specifications
| Model |
UD10A5M25W2C (010254-001) |
| Housing |
Epoxy coated aluminum, explosion-proof |
| Conduit entries |
Five, metric M25 |
| Outputs |
4–20 mA with HART; Modbus RS485; three alarm relays and one fault relay |
| Relay contacts |
Form C, 5 A at 30 VDC |
| Conditioning board |
CGS |
| Operating voltage |
24 VDC nominal, 18 to 30 VDC |
| Maximum power (CGS model) |
11 W at 30 VDC, heater and backlight on |
| Current output loop resistance |
600 ohms maximum at 18 to 30 VDC |
| Operating temperature |
–55°C to +75°C |
| Humidity |
5 to 95% RH |
| Wiring terminals |
14 to 18 AWG |
| Approvals |
FM, CSA, ATEX, CE, IECEx |
Features
- Backlit, heated LCD shows gas level, gas type and units
- Non-intrusive one-person calibration with a magnet
- Event, fault and alarm logs with calibration date and time stamp
- Works with Det-Tronics gas detectors or generic linear 4–20 mA sensors
Documents
FAQ
What does the "C" at the end of UD10A5M25W2C mean?
It indicates the optional CGS conditioning board, used to connect a catalytic combustible gas sensor.
Which detectors can it be used with?
Det-Tronics detectors such as GT3000, PIR9400, PIRECL, CTX10/CGS, CGS, ATX10/AV10, PIRDUCT and LS2000, as well as generic linear 4–20 mA sensors. CGS sensors require the CGS interface board.
What power does it need?
24 VDC nominal with an 18 to 30 VDC operating range. The CGS model draws up to 11 W at 30 VDC with the heater and backlight on.
Does it need a conduit seal?
The FM and CSA approvals state that a conduit seal is not required.
