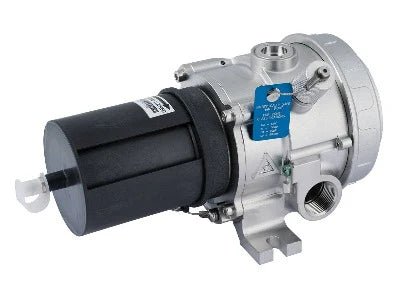

Det-Tronics PIRECLA11A1BT2 (014046-641) is a PointWatch Eclipse PIRECL point infrared hydrocarbon gas detector in a 316 stainless steel housing. It detects methane, propane, butane, ethylene and other flammable hydrocarbon gases in the LFL range. This configuration has 3/4 in. NPT entries, a 4-20 mA output with HART and RS-485 Modbus, a HART communication port, a weather baffle with hydrophobic filter, and is the Ex d version carrying the SIL / INMETRO (Brazil) approval type.
Specifications
| Model / part number |
PIRECLA11A1BT2 / 014046-641 |
| Thread type |
3/4 in. NPT (A) |
| Output |
4-20 mA with HART protocol and RS-485, 0-100% LFL full scale (11) |
| Optional outputs |
HART communication port, no relays (A) |
| Weather protection |
Weather baffle with hydrophobic filter (1) |
| Approvals |
SIL / INMETRO (Brazil) (BT) |
| Classification |
Division/Zone Ex d (2) |
| Factory calibration |
Methane (a "P" suffix part number denotes propane) |
| Input voltage |
24 Vdc nominal, 18 to 32 Vdc |
| Power consumption (without relays) |
4.0 W nominal at 24 Vdc; 7.5 W peak at 24 Vdc |
| Current output |
Linear 4-20 mA, 600 ohm maximum loop resistance at 24 Vdc |
| Operating temperature |
-55 to +75 C (-67 to +167 F) |
| Housing |
316 stainless steel (CF8M) |
| Ingress protection |
IP66/IP67 (DEMKO verified) |
| Warranty |
Five-year limited |
Compatibility and installation notes
- Factory calibrated and set for one gas; HART or other digital communication is needed to confirm or change the gas setting.
- Field configuration by HART, EQP system S3 software or RS-485 Modbus.
- The HART port is intrinsically safe; for live maintenance follow control drawing 007283-001 in manual 95-8526.
- Field terminals accept up to 14 AWG (2.5 mm2) wire.
- The BT approval type is the INMETRO (Brazil) line. For FM/CSA/ATEX/IECEx approvals, Det-Tronics lists T-approval models such as PIRECLA11A1T2.
Related models
Documents
Specifications from Det-Tronics PIRECL instruction manual 95-8526 rev. 20.14 and the 2026 Det-Tronics Product Catalog 52-1002-26.0. Manufacturer specifications are subject to change.
