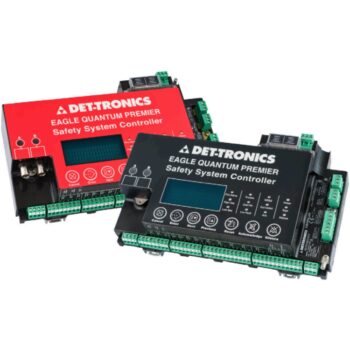

Det-Tronics EQ3016DNNW (007609-463) is an Eagle Quantum Premier (EQP) controller for 16 nodes, DIN rail mounted, with no optional communication boards and FM/CSA/ATEX/IECEx approvals (non-SIL version). The controller performs all communication and control functions of the EQP fire and gas system: the LON/SLC loop that links the addressable field devices starts and ends at the controller, which monitors the devices and runs the static and user-programmed logic.
Specifications
| Model / part number |
EQ3016DNNW / 007609-463 |
| Capacity |
16 nodes |
| Mounting |
DIN rail (D) |
| Com board 1 / com board 2 |
None / none (N, N) |
| Approvals |
FM/CSA/ATEX/IECEx (W) |
Compatibility and installation notes
- Programmed with Det-Tronics Safety System Software (S3) for cross-zone, voting and timed logic.
- No optional interface board is fitted on this model. Ethernet/IP (E), serial port expansion (S) and Ethernet DLR (D) are selected through the model code on other variants.
- Contact Det-Tronics customer service when ordering a replacement controller for a redundant system.
- Operating temperature depends on certification; refer to the EQP manual 95-8533.
Related models
Documents
Specifications from Det-Tronics specification data 90-1148 rev. 6.1 (EQP Controller EQ3XXX) and the 2026 Det-Tronics Product Catalog 52-1002-26.0. Manufacturer specifications are subject to change.
