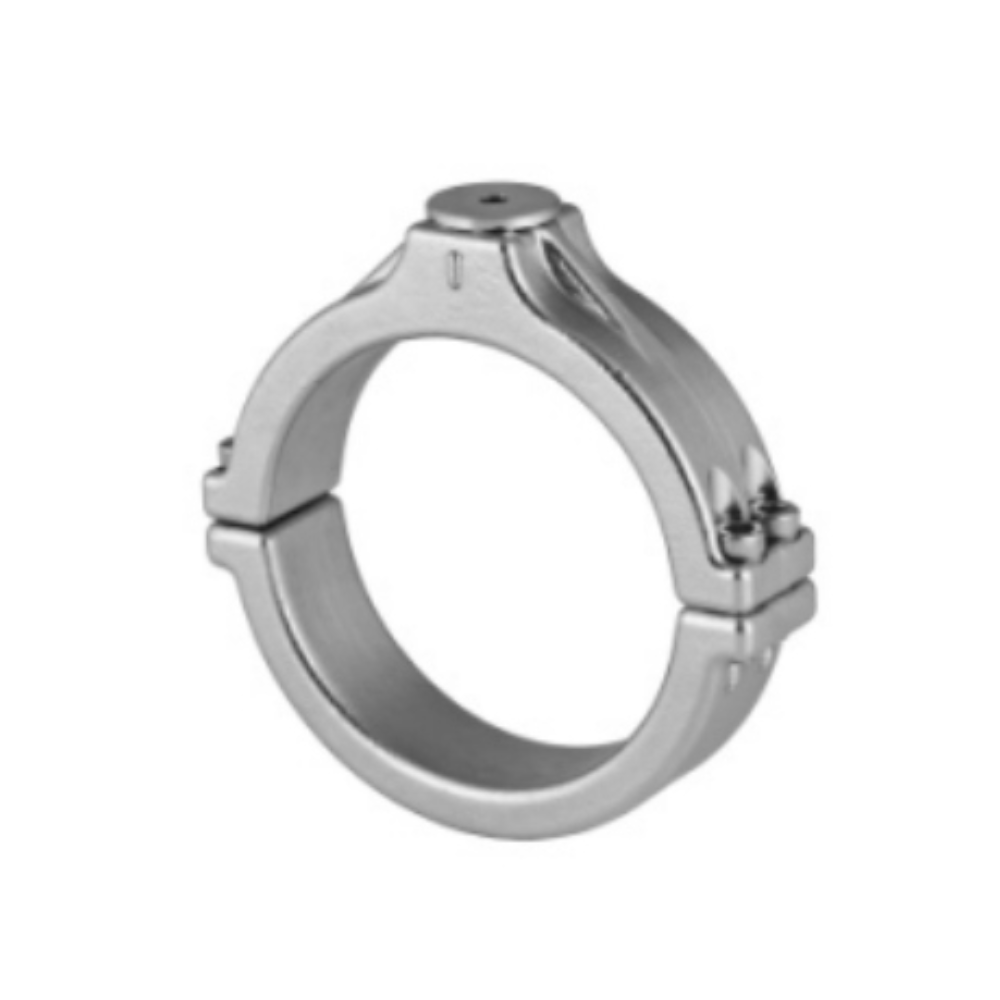

Det-Tronics 011385-001 is the Q9033 collar attachment, an optional stainless steel accessory that works with the Q9033 mounting arm to hold X-Series flame detectors. It adds a third axis of adjustment: the detector can be rotated as well as panned and tilted, so installers can level it to the horizon after aiming it.
Specifications
| Part |
Q9033 collar attachment |
| Material |
Stainless steel |
| Use with |
Q9033 mounting arm (required) and any X-Series flame detector |
| Detector housings |
Suitable for aluminum or stainless steel detectors and arms |
| Approval |
FM performance approved with X-Series detectors |
Installation notes
- Recommended where the detector must be panned to extreme angles
- When a detector points down and is panned off center, it rotates; the collar corrects this and keeps the field of view balanced
- Important for X3301 and X3302 detectors, whose cone of vision is truncated on the upper half
- The Q9033 mounting arm is installed first, with 1/4 in. (M6) bolts at least 1 in. (25 mm) long
