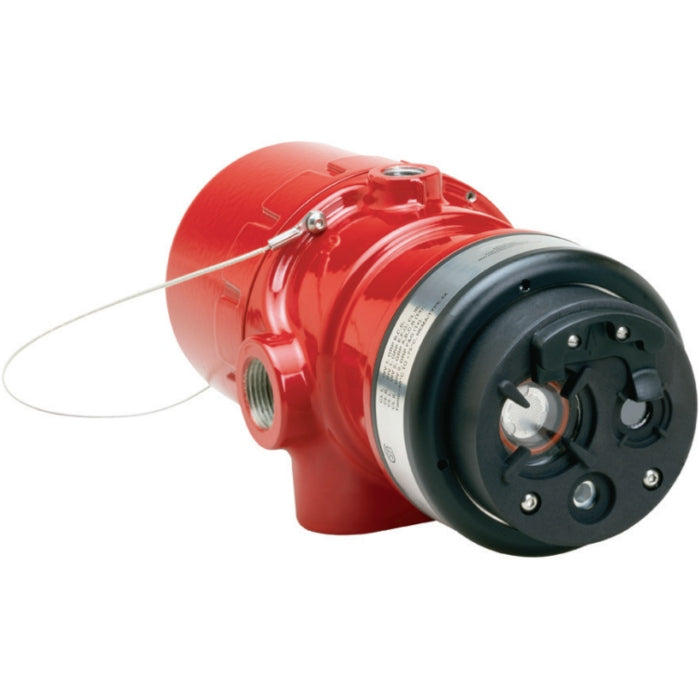

Det-Tronics 008500-001 is the X5200A4N11W1 ultraviolet/infrared (UV/IR) flame detector. In the X5200 model code this means an aluminum housing with four 3/4 in. NPT conduit ports, relay outputs, FM/CSA/ATEX/IECEx approvals, and a Division/Zone Ex d e classification.
The X5200 is designed to respond to a fire in the presence of modulated blackbody radiation from heaters, ovens or turbines without false alarm, and it is suitable for indoor and outdoor use. The standard output configuration includes fire, fault and auxiliary relays.
Specifications
| Model code |
X5200A4N11W1 |
| Detection |
UV/IR; IR 4–5 microns, UV 185–245 nm |
| Field of view |
90° cone of vision (horizontal) |
| Operating voltage |
24 VDC nominal, 18 to 30 VDC |
| Power consumption |
2.8 W at 24 VDC nominal |
| Outputs |
Fire, fault and auxiliary relays; contacts 5 A at 30 VDC |
| Housing |
Copper-free aluminum (painted), four 3/4 in. NPT entries |
| Operating temperature |
-40 to +167 °F (-40 to +75 °C) |
| Weight |
7 lb (3.2 kg), aluminum |
| Warranty |
3 years |
Features
- Tri-color LED on the faceplate shows normal, fire alarm and fault conditions
- Integral wiring compartment
- Class A wiring per NFPA 72
- Mounting arm allows easy sighting
Related models
- Q9033A aluminum mounting arm (007290-002) for aluminum detectors
- X5200M with molybdenum UV tube; X5200G without Kr85 source tube
- Versions with 0–20 mA, HART, pulse or Eagle Quantum Premier outputs are separate model codes
Documents
FAQ
What does X5200A4N11W1 mean?
In the X5200 model matrix: A = aluminum, 4N = four ports with 3/4 in. NPT threads, 11 = relay outputs, W = FM/CSA/ATEX/IECEx approvals, 1 = Division/Zone Ex d e.
What power does it need?
24 VDC nominal, with an operating range of 18 to 30 VDC; power consumption is 2.8 W at 24 VDC nominal.
What is the field of view?
A 90 degree cone of vision, with the highest sensitivity along the central axis.
Which mounting arm fits?
Det-Tronics lists the Q9033A aluminum mounting arm (007290-002) for aluminum detectors; the Q9033B stainless arm fits aluminum and stainless detectors.
