UHF YAGI 12 ELEMENTS 450512MHz

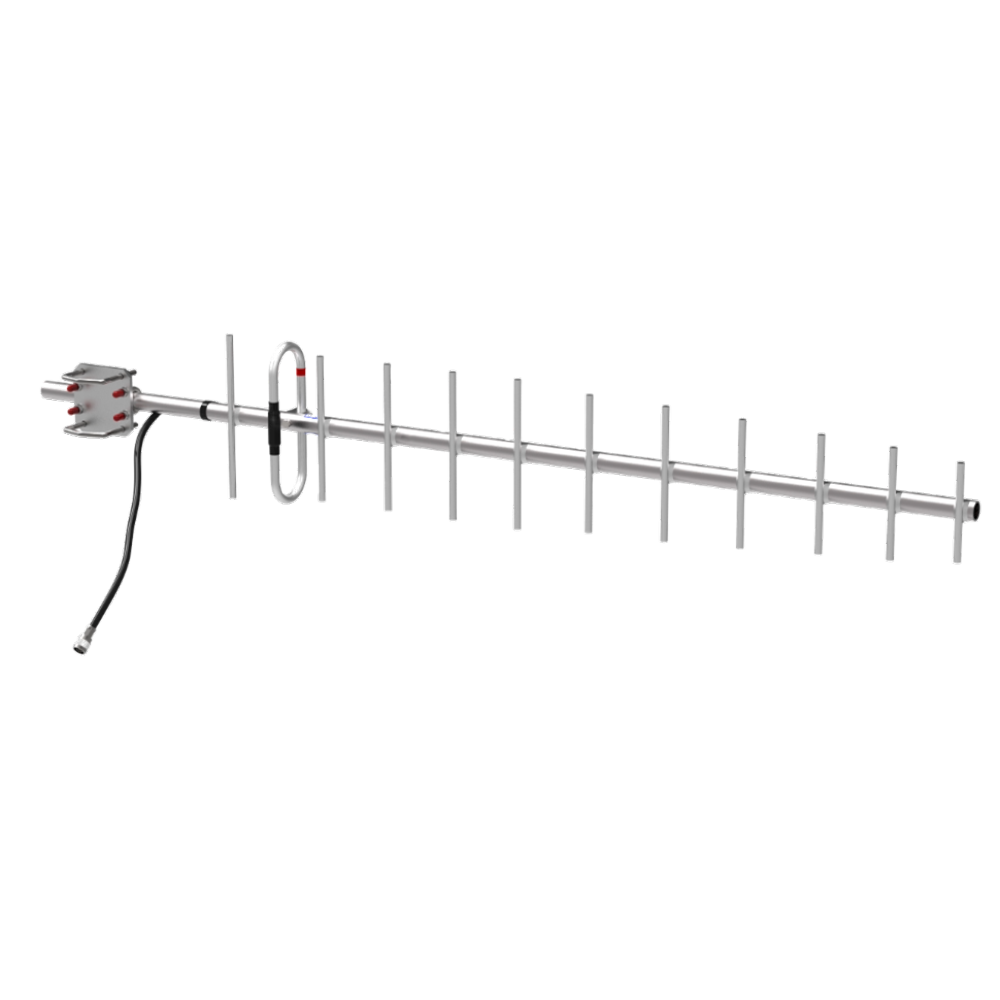

The Comprod 437-70*2 is a 12-element UHF Yagi directional antenna covering 450-512 MHz with 12 dBd nominal gain. It has a fully welded construction, is DC grounded for lightning protection and terminates in an N male connector. The supplied 127-85 clamp allows mounting for either vertical or horizontal polarization, and the antenna is typically used as a donor or point-to-point antenna for UHF land-mobile and public-safety radio systems.
Key Features
- 12-element UHF Yagi, 450-512 MHz
- 12 dBd nominal gain, directional pattern
- Fully welded design for harsh environmental conditions
- DC ground for lightning protection
- Mounting hardware allows vertical or horizontal polarization (127-85 clamp)
- N male termination
- Available in the iBwave component library
Specifications
| Frequency range |
450-512 MHz |
| Nominal gain |
12 dBd |
| Bandwidth (1.5:1 VSWR) |
62 MHz |
| Number of elements |
12 |
| Polarization |
Vertical or horizontal |
| Horizontal beamwidth (vertical pol.) |
36 deg |
| Vertical beamwidth (vertical pol.) |
32 deg |
| Front-to-back ratio |
20 dB |
| Pattern |
Directional |
| Power rating |
350 W |
| Nominal impedance |
50 ohm |
| Lightning protection |
DC ground |
| Standard termination |
N male |
| Length |
73 in (1855 mm) |
Compatible With
- Comprod 127-85 clamp (mounting hardware)
