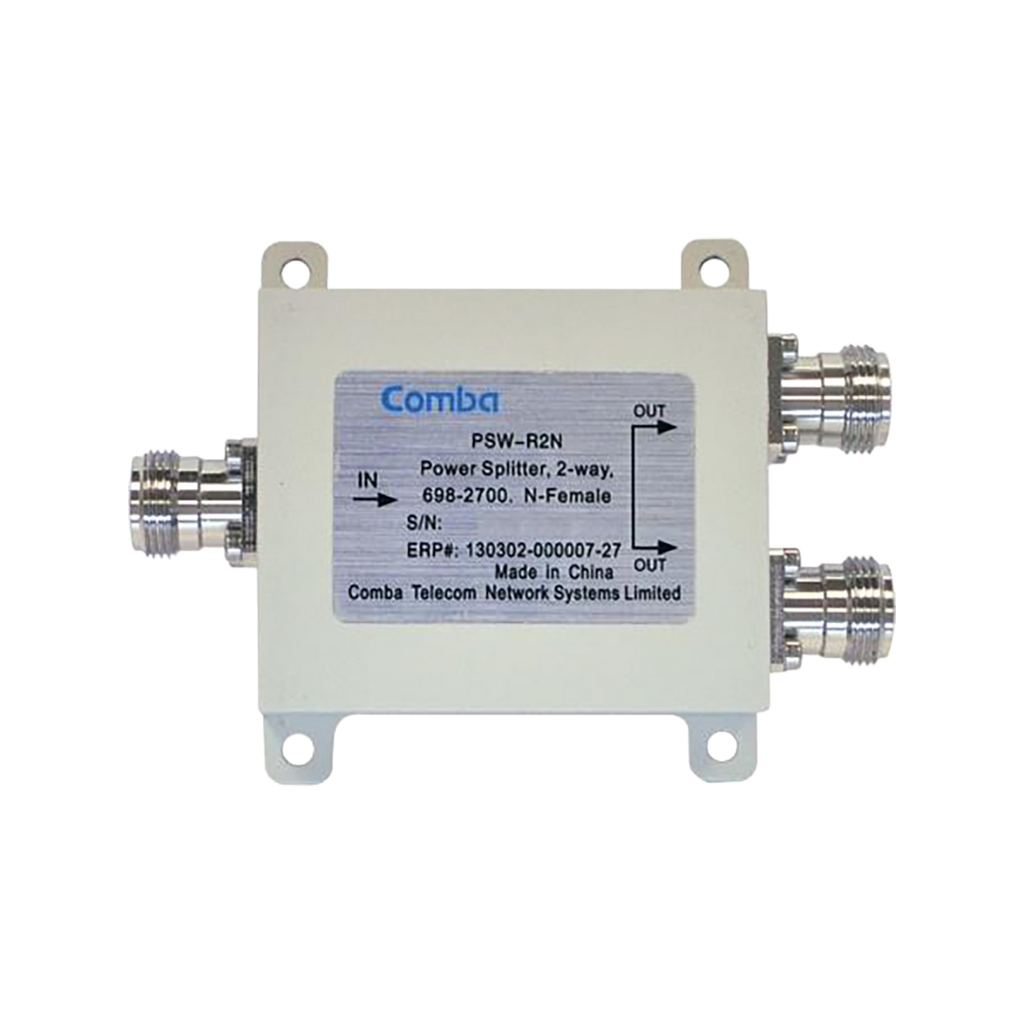

Comba PSW-R2N 2-Way Wilkinson Power Splitter, 698- 2700MHz, N Female, 50W
The Comba PSW-R2N is a 2-way Wilkinson power splitter covering 698-2700 MHz with N-female connectors. It provides at least 20 dB isolation between output ports, handles up to 50 W average power and is rated IP65 for indoor or outdoor use. It is used in DAS and public-safety BDA installations to split or combine low-power RF signals.
Key Features
- 2-way Wilkinson power splitter
- Wideband design covering 698-2700 MHz
- Port isolation >= 20 dB
- 50 W average power
- N-female connectors
- Suitable for indoor/outdoor environments, IP65
Specifications
| Configuration |
2-way, Wilkinson |
| Frequency range |
698-2700 MHz |
| Split loss |
3.0 dB |
| Insertion loss |
<= 0.4 dB |
| Isolation |
>= 20 dB |
| VSWR @ all ports |
<= 1.2 |
| Average power, max |
50 W |
| Impedance |
50 ohm |
| Connector |
N Female |
| Dimensions |
2.80 x 2.32 x 0.87 in (71.0 x 59.0 x 22.0 mm) |
| Weight |
0.55 lb (0.25 kg) |
| Application |
Indoor / Outdoor |
| Ingress protection |
IP65 |
| Operating temperature |
-40 C to +85 C (datasheet); product page lists -25 C to +85 C |
