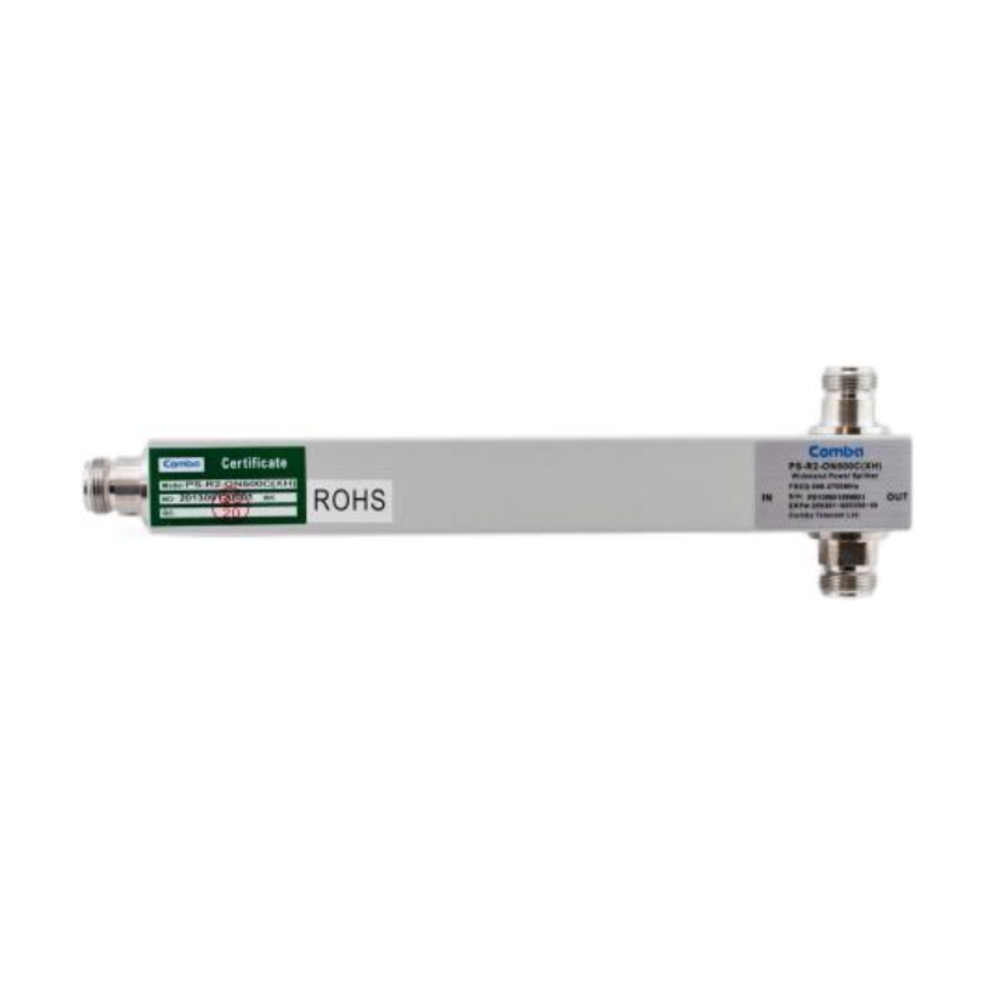

Comba PS-R2-ON500C(XH) 2-Way Power Splitter, 698-2700MHz, 500W, Reactive type
The Comba PS-R2-ON500C(XH) is a 2-way reactive power splitter from the R Series covering 698-2700 MHz with N-female connectors. It handles up to 500 W average power with a PIM rating better than -153 dBc and is rated IP65 for indoor or outdoor use. It is used in passive DAS and public-safety BDA antenna networks to divide the signal equally between two branches.
Key Features
- 2-way reactive type power splitter
- Wideband design covering 698-2700 MHz
- Low PIM: < -153 dBc @ 2 x 43 dBm
- 500 W average / 1000 W peak power
- N-female connectors
- Suitable for indoor/outdoor environments, IP65
Specifications
| Configuration |
2-way, reactive |
| Frequency range |
698-2700 MHz |
| Split loss |
3.1 dB |
| Insertion loss |
<= 0.1 dB |
| VSWR @ input port |
<= 1.2 |
| PIM |
< -153 dBc @ 2 x 43 dBm |
| Average power, max |
500 W |
| Peak power, max |
1000 W |
| Impedance |
50 ohm |
| Connector |
N-Female |
| Dimensions |
214.8 x 60.6 x 25.0 mm (datasheet lists 9.5 x 2.4 x 1.0 in) |
| Weight |
0.77 lb (0.35 kg) |
| Application |
Outdoor / Indoor |
| Ingress protection |
IP65 |
