Comba OY-MN-V11P Outdoor Directional Yagi Antenna, 746-896MHz, V Pol, HBW 48, VBW 40, 11.2dBi

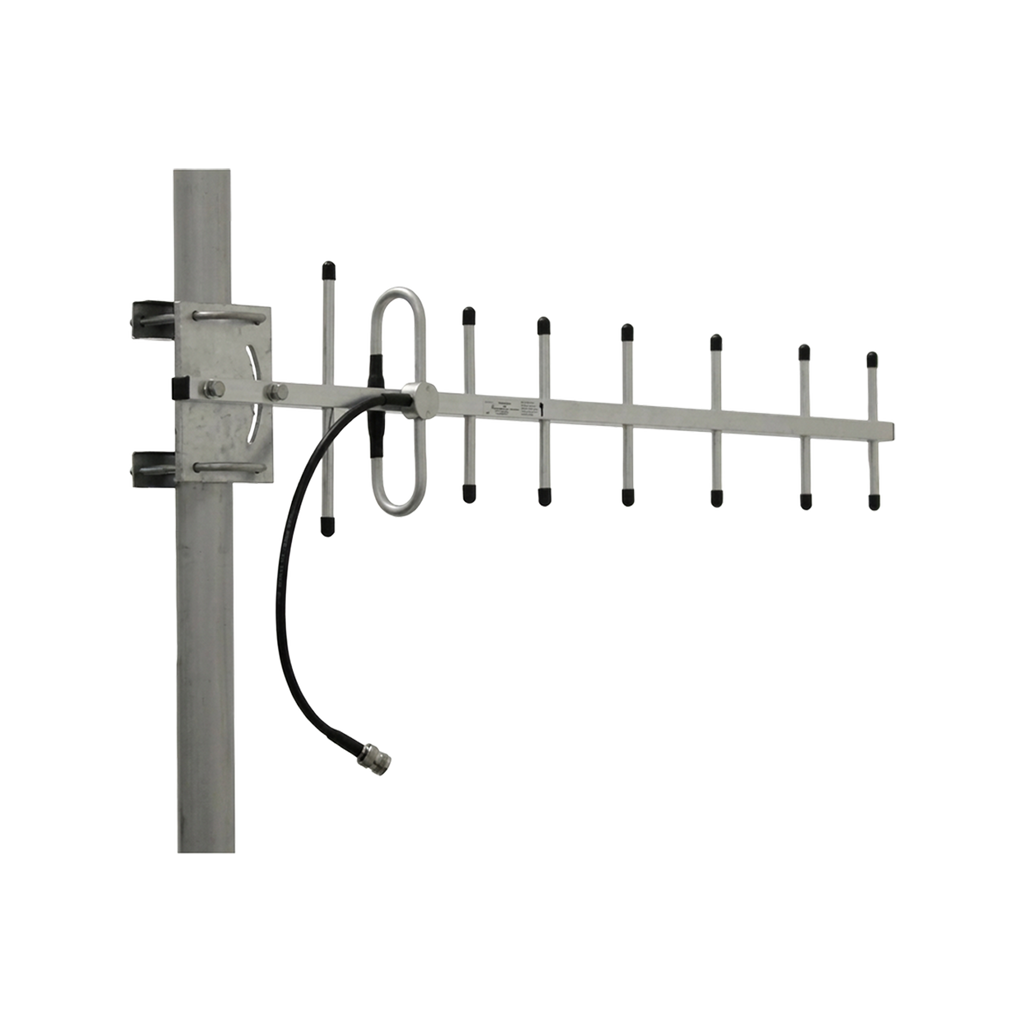

The Comba OY-MN-V11P is an 8-element outdoor directional Yagi antenna covering the 746-896 MHz public-safety band with 11.2 dBi gain. It ships pre-assembled for vertical polarization, has an N-female connector and is intended as a donor antenna for BDA/DAS systems. The bracket fits 1.2-2.6 in (30-65 mm) poles and allows up to 30 degrees of tilt adjustment.
Key Features
- Covers the 746-896 MHz public safety band
- Narrow-beam design with 8 elements, 11.2 dBi gain
- Intended for donor antenna applications; aluminum finish
- Tilt adjustment up to +/- 30 deg
- Rated for wind speeds up to 186 mph
- Direct-grounding lightning protection
- N-female connector
Specifications
| Frequency range |
746-896 MHz |
| Gain |
11.2 dBi |
| Polarization |
Linear; pre-installed for vertical polarization |
| Horizontal beamwidth |
48 deg |
| Vertical beamwidth |
40 deg |
| VSWR |
<= 1.5 |
| Front-to-back ratio |
>= 15 dB |
| Average power, max |
100 W |
| Impedance |
50 ohm |
| Connector |
N-Female |
| Dimensions |
33.5 x 7.5 x 2.0 in (850 x 190 x 50 mm) |
| Weight |
0.9 lb (0.4 kg) |
| Mounting pole diameter |
1.2-2.6 in (30-65 mm) |
| Tilt adjustment |
+/- 30 deg max |
