Comba ODP-030V14MN Outdoor Directional Antenna, V Pol, 28, 758-869MHz, 15dBi, PIM:151dBc@2A - 43dBm, N-female

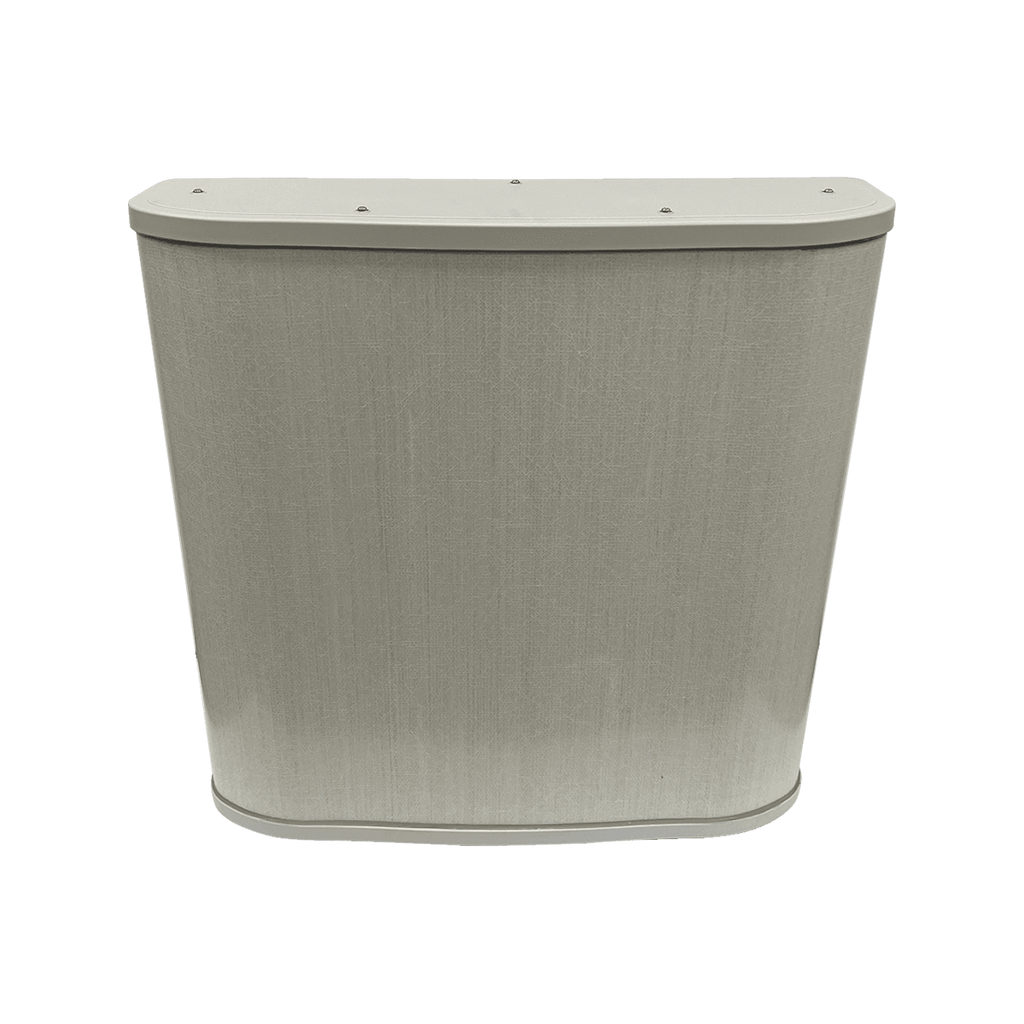

The Comba ODP-030V14MN is an outdoor high-isolation, narrow-beam directional panel antenna for 758-869 MHz, within the 700/800 MHz public-safety band. It is intended as a donor antenna where high isolation and focused coverage are needed, with a 28 degree beamwidth in both planes and 0-14 degrees of mechanical downtilt. It is vertically polarized by default (horizontal optional), has an N-female connector and mounts on a pole with the included galvanized-steel bracket.
Key Features
- High-isolation narrow-beam directional antenna for 758-869 MHz (700/800 public safety band)
- Intended for donor antenna applications needing high isolation and focused coverage
- 28 deg horizontal and vertical beamwidth
- Vertical polarization by default; horizontal polarization optional
- Mechanical downtilt adjustable 0-14 deg
- PIM < -151 dBc @ 2 x 43 dBm
- Fiberglass radome; galvanized-steel, salt-water-resistant bracket
- N-female connector
Specifications
| Frequency range |
758-869 MHz |
| Gain |
15.5 +/- 0.5 dBi (datasheet DS 2-0-2); product page lists 15.0 +/- 0.5 dBi |
| Polarization |
Vertical (optionally horizontal) |
| Horizontal beamwidth |
28.0 +/- 2.0 deg |
| Vertical beamwidth |
28.0 +/- 2.0 deg |
| Front-to-back ratio |
>= 31 dB (datasheet DS 2-0-2); product page lists >= 27 dB |
| 1st upper sidelobe suppression |
>= 18 dB |
| Mechanical downtilt |
0-14 deg |
| PIM |
< -151 dBc @ 2 x 43 dBm |
| VSWR |
<= 1.5 |
| Average power, max |
250 W |
| Impedance |
50 ohm |
| Connector |
N-Female |
| Dimensions |
26.8 x 26.8 x 7.5 in (680 x 680 x 190 mm) |
