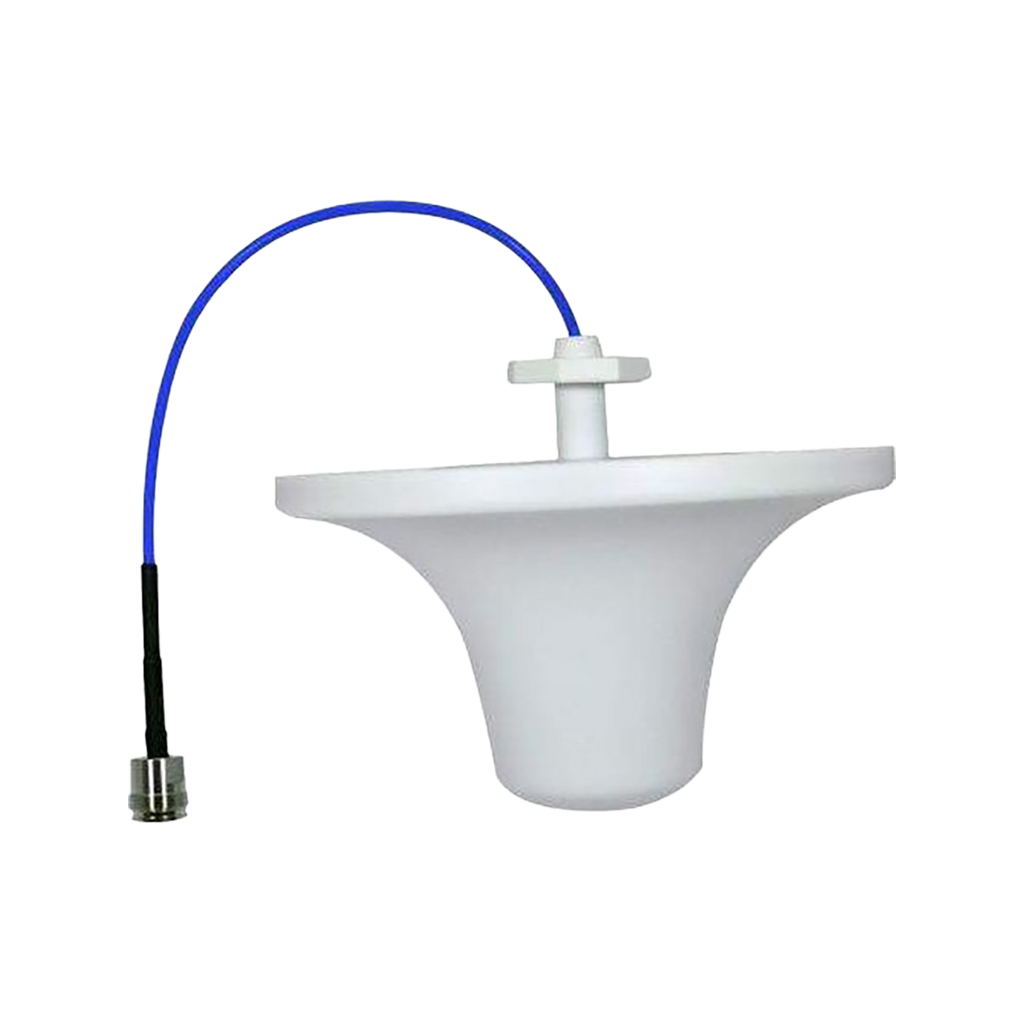

Comba IX-MJN-V3U Indoor Omni Antenna, Ceil Mount, 698-2700MHz, 4dBi, UL-94-V0
The Comba IX-MJN-V3U is an indoor ceiling-mount omnidirectional antenna covering 698-2700 MHz with an N-female connector (the IX-MJA-V3U is the 4.3-10 female version). It is vertically polarized, low-PIM rated at better than -153 dBc, and handles up to 50 W average power. The white ABS radome carries a UL-94-V0 flammability rating.
Key Features
- Wideband design covering 698-2700 MHz
- Low PIM: < -153 dBc @ 2 x 43 dBm
- N-female connector (IX-MJN-V3U)
- Ceiling mount; optional MT-DA-01 hard-ceiling bracket or MT-ND-HC high-ceiling/joist bracket
- UL-94-V0 flammability rating
- Indoor application
Specifications
| Frequency range |
698-2700 MHz |
| Gain |
1.8 +/- 0.5 dBi (698-806 MHz); 2.0 +/- 0.5 dBi (806-960 MHz); 3.0 +/- 1.0 dBi (1695-2700 MHz) |
| Polarization |
Vertical |
| Horizontal beamwidth |
360 deg |
| Vertical beamwidth |
90 deg (698-806 MHz); 70 deg (806-960 MHz); 35 deg (1695-2700 MHz) |
| VSWR |
<= 1.8, typical <= 1.5 (698-806 MHz); <= 1.5 (806-2700 MHz) |
| PIM |
< -153 dBc @ 2 x 43 dBm |
| Average power, max |
50 W |
| Impedance |
50 ohm |
| Connector |
N-Female |
| Dimensions (diameter x height) |
8.0 x 4.5 in (204.0 x 115.0 mm) |
| Weight |
1.10 lb (0.40 kg) |
| Radome material and color |
ABS, White, RAL9003 |
| Flammability |
UL-94-V0 |
Compatible With
- Comba MT-DA-01 hard ceiling mount bracket
- Comba MT-ND-HC high ceiling / joist mount bracket
