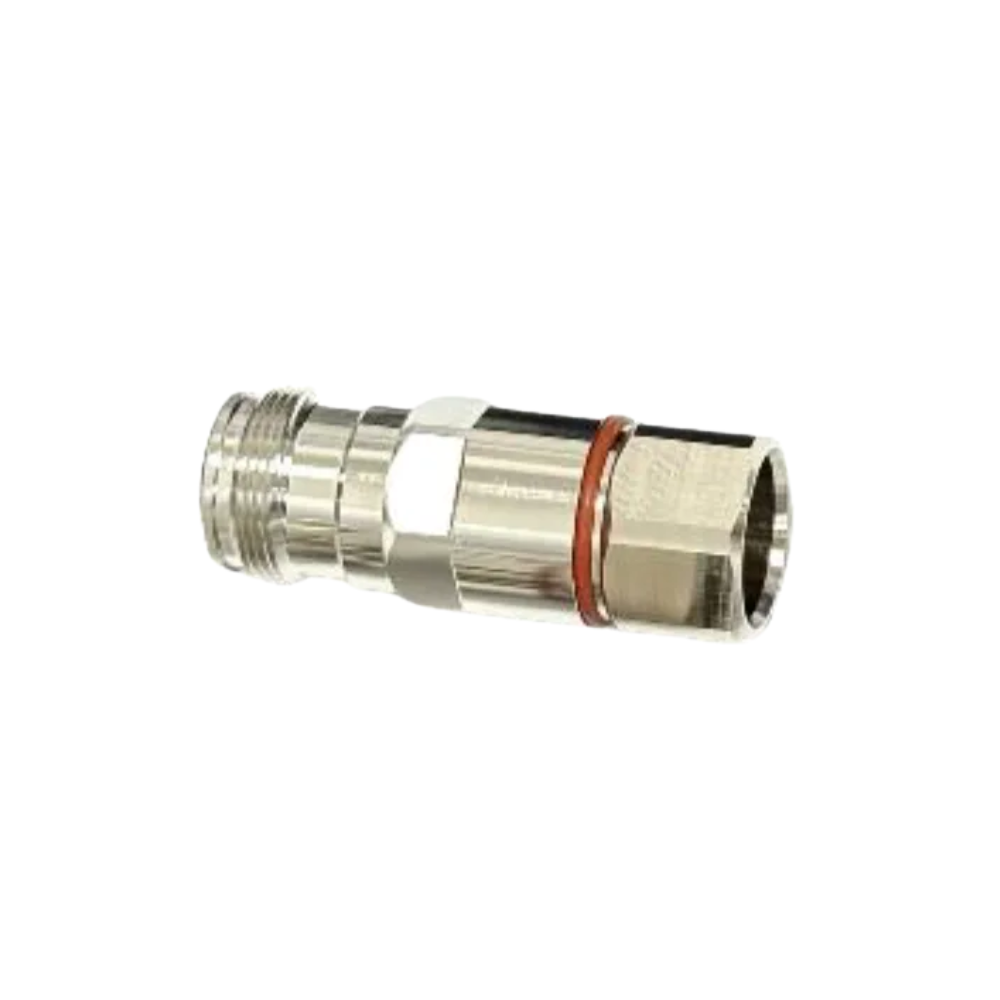

Comba CN-NM-F12 N-Male Connector for 1/2" for 1/2" Air Dielectric Aluminum Coaxial Cable
The Comba CN-NM-F12 is a field-installable N-Male connector for Comba 1/2" plenum-rated air-dielectric coaxial cable (CS-F12PAR / CS-F12PAW series). It covers DC to 6 GHz at 50 ohms with a PIM rating of -161 dBc or better and is sealed to IP67 for indoor or outdoor use. The cable end is prepared with the TL-F12 preparation tool kit and FL-F12 flaring tool before the connector is assembled.
Key Features
- N-Male connector for 1/2" coaxial cable
- For CS-F12PAR/CS-F12PAW, CS-AF12PAR plenum-rated cable and CS-F12UAK series cable
- DC-6000 MHz, 50 ohm
- PIM <= -161 dBc @ 2 x 43 dBm (900 MHz)
- IP67, indoor/outdoor application
- Related tools: TL-F12 auto preparation tool kit, FL-F12 flaring tool
Specifications
| Connector type |
N-Male |
| Frequency range |
DC-6000 MHz |
| Impedance |
50 ohm |
| Insertion loss |
<= 0.05 x sqrt(f[GHz]) dB |
| VSWR |
<= 1.15 (DC-3.0 GHz); <= 1.20 (3.0-4.2 GHz); <= 1.25 (4.2-6.0 GHz) |
| PIM |
<= -161 dBc @ 2 x 43 dBm (@ 900 MHz) |
| Inner conductor contact resistance |
<= 1 mOhm |
| Outer conductor contact resistance |
<= 1 mOhm |
| Insulation resistance |
>= 5000 MOhm |
| Insulation withstanding voltage |
>= 1500 V |
| Dimensions |
2.13 x 0.87 x 0.87 in (54.0 x 22.0 x 22.0 mm) |
| Weight |
0.18 lb (0.08 kg) |
| Interface durability |
100 mating cycles |
| Outer conductor material |
Brass, tri-alloy plated |
Compatible With
- Comba CS-F12PAR / CS-F12PAR500 cable
- Comba CS-F12PAW / CS-F12PAW500 cable
- Comba CS-AF12PAR500 / CS-AF12PAR750 cable
- Comba CS-F12UAKxxx series cable
- Comba TL-F12 preparation tool kit
- Comba FL-F12 flaring tool
