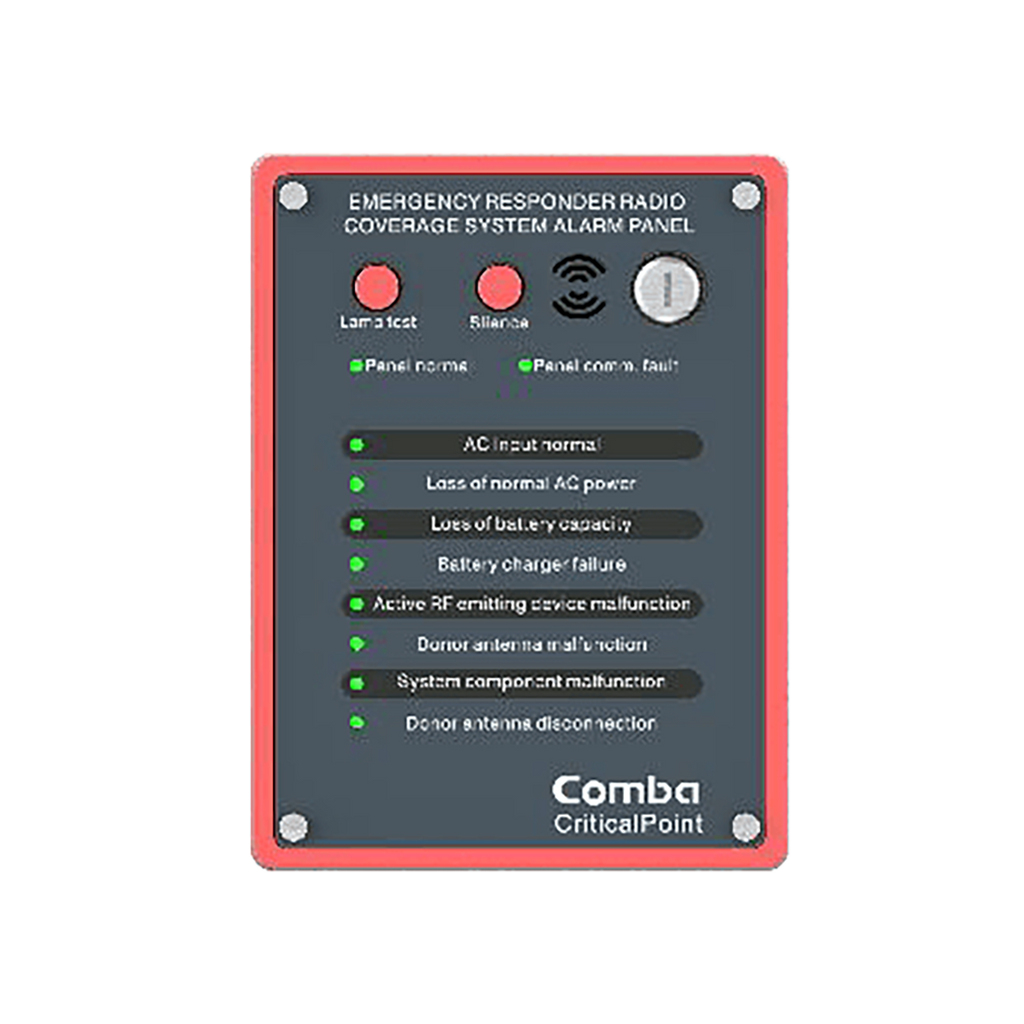

Comba APV3-BDA — CriticalPoint V3 external annunciator panel repeating the alarm status of a Comba public safety BDA V3, or of an individual DAS Remote Unit V3, where the fire service can reach it.
The panel takes both power and alarm data from the V3 unit over one run, so no separate alarm wiring is needed, and its front alarm plate is swappable to match whichever standard the head end is plated for. It annunciates visually and audibly only, with no dry contacts in either direction.
- Eight alarm indicators synchronised with the V3 BDA or DAS, plus Panel Normal and Comm Alarm
- +12 to +42.4 Vdc from the V3 BDA, MU or RU, or from a local AC to DC adaptor; 0.6 W
- DC and RS485 on one Cat 5 cable, provided, into an RJ45 connector already fitted
- Up to four panels cascaded from one V3 unit, 2,000 ft to the furthest on 24 AWG
- 5.75 x 4.33 x 1.81 in. (146 x 110 x 46 mm), 0.9 lb, IP30
- Minus 27.4 to plus 131 °F; mounts to a 4 in. x 4 in. junction box or to a wall
- UL 2524 2nd Edition certified through SGS, certificate SGSNA/24/GZ/00199
APV3-DAS is the fibre DAS version: larger, 2 W, and it annunciates each MU, FOU and RU individually, which this panel does not. Flush mounting needs the separate APV3-BDA-3804MX kit.
