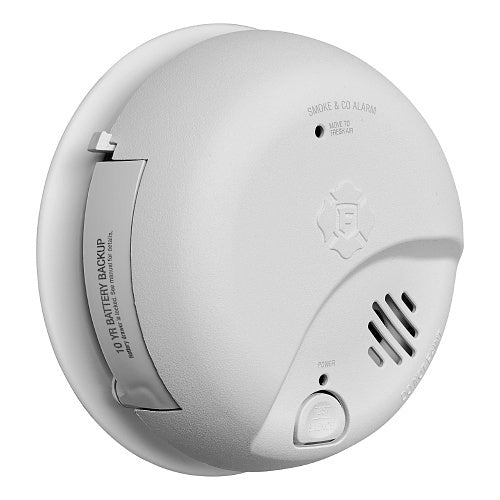

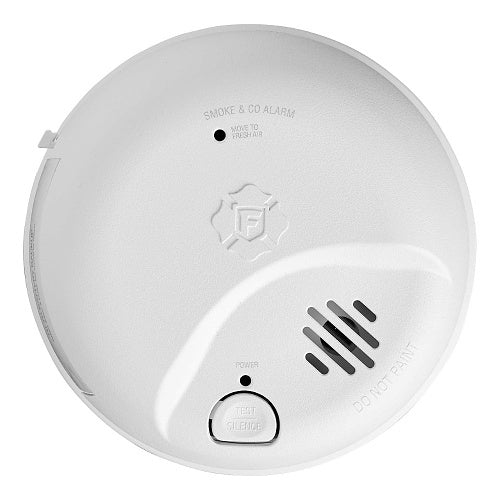

BRK SMICO105-AC — hardwired ionization smoke and carbon monoxide alarm with a sealed 10-year lithium backup battery.
One ceiling unit covering two hazards: an ionization smoke chamber and an electrochemical CO cell, each with its own LED so the technician can tell which condition tripped. It is a 120 V AC alarm for a qualified electrician to install on an interconnected circuit, and the sealed cell means no battery change.

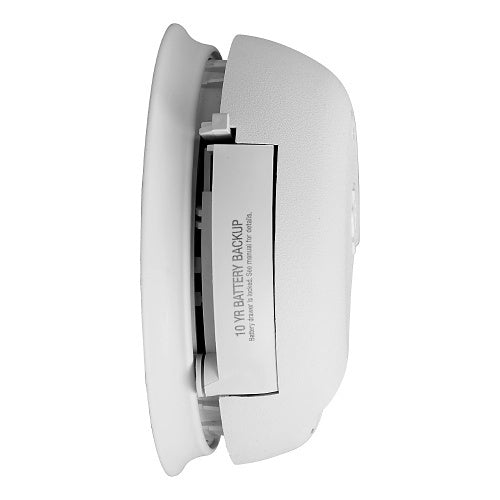

- 120 V AC 60 Hz, with a monitored 9 V lithium battery sealed for 10 years
- Interconnects up to 18 compatible First Alert or BRK smoke, CO and heat alarms, at most 12 smoke
- Interconnect wire up to 1000 ft, rated at least 300 V
- CO alarm points 400 PPM within 4 to 15 minutes, 150 PPM within 10 to 50 minutes and 70 PPM within 60 to 240 minutes
- 85 dB at 10 feet; three beeps for smoke, four for CO; latching alarm indicator
- 5.12" diameter × 1.97" high; certified to UL 217 and UL 2034
SMICO100-AC is the same alarm with a replaceable 9 V alkaline backup in place of the sealed lithium cell. SMI105-AC shares the 10-year lithium backup but is smoke only.
Documents
FAQ
What replaces the SMICO105-AC?
This model is discontinued on our site, and the First Alert SC6W10 is the replacement product named for it.
How many alarms can be interconnected?
A maximum of 18 compatible units, of which no more than 12 can be smoke alarms, per NFPA 72. All interconnected units must be on the same fuse or circuit breaker, and the total interconnect wire should be under 1000 feet.
Which alarms is it compatible with?
The manual lists First Alert and BRK hardwired models including the SMI100-AC and SMI105-AC smoke alarms, along with other First Alert smoke and smoke/CO models. Connect it only to the compatible units named in the manual.
Does the battery need changing?
No. The alarm has a 10-year sealed battery backup that keeps it working during power outages.
