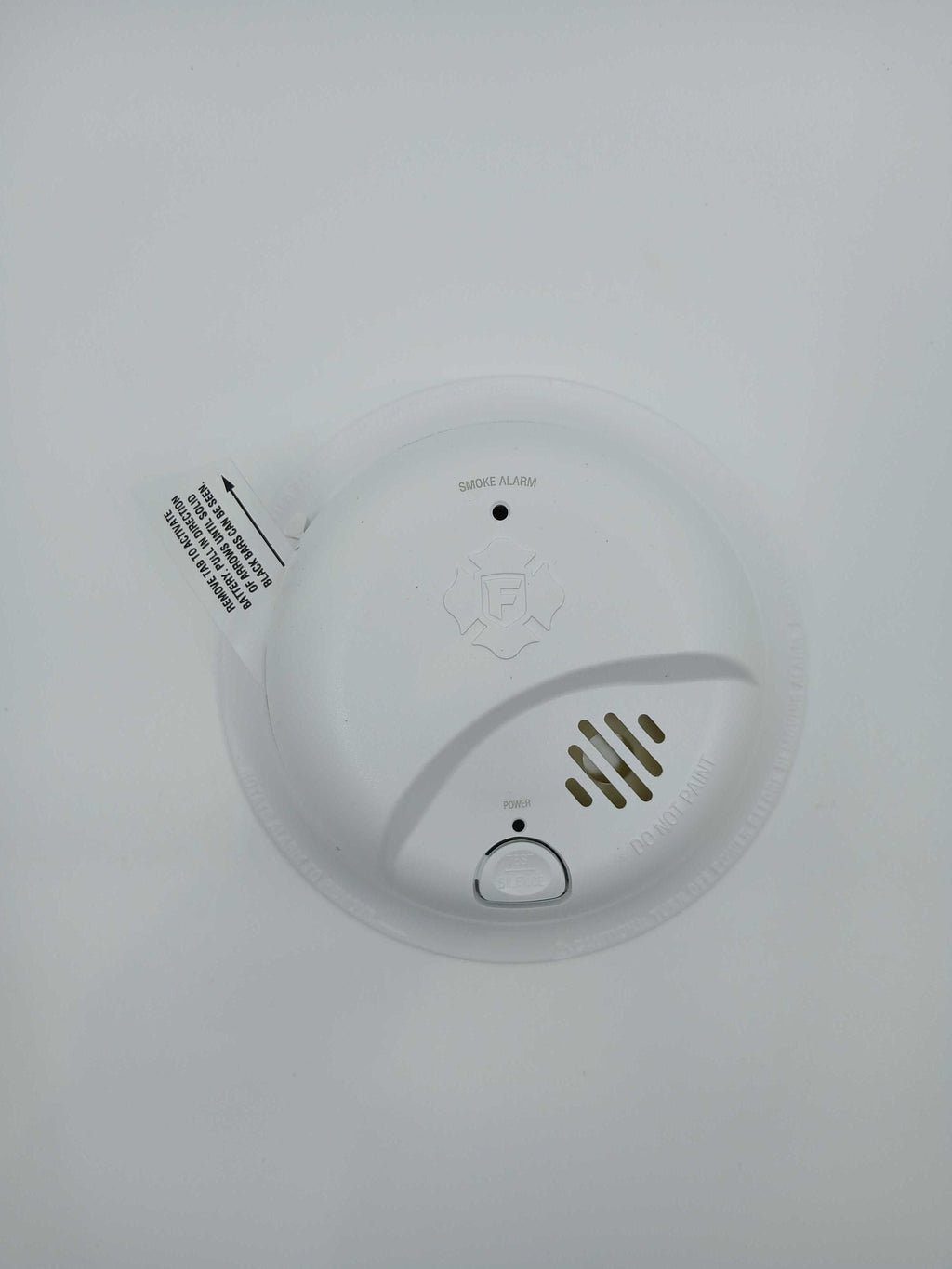

The BRK SMI100-AC (cat. 1046836) is a 120 VAC hardwired smoke alarm with 9 V battery backup, approved for single-family residences. It interconnects with compatible First Alert and BRK hardwired alarms so that when one unit senses smoke, all units sound.

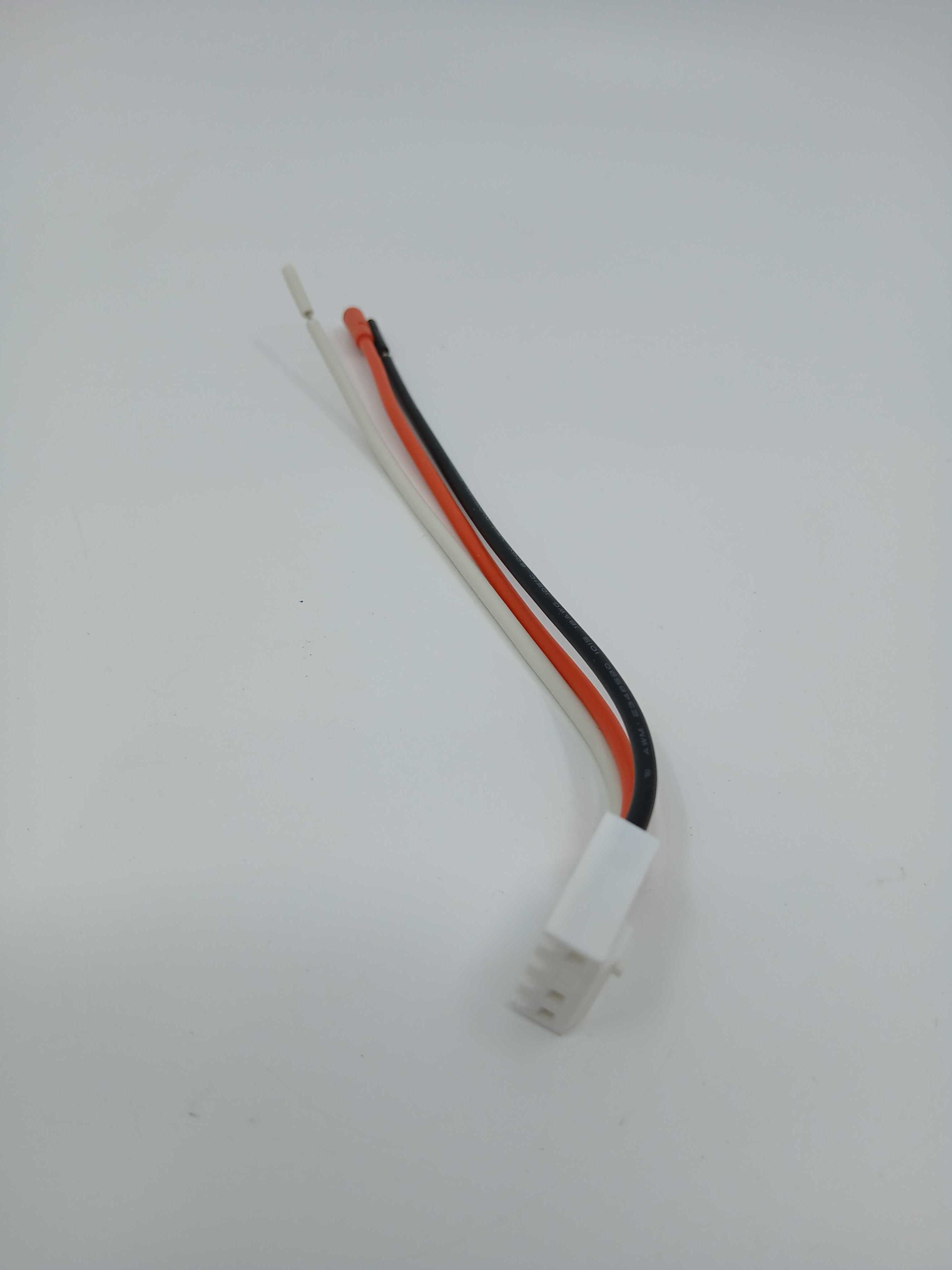

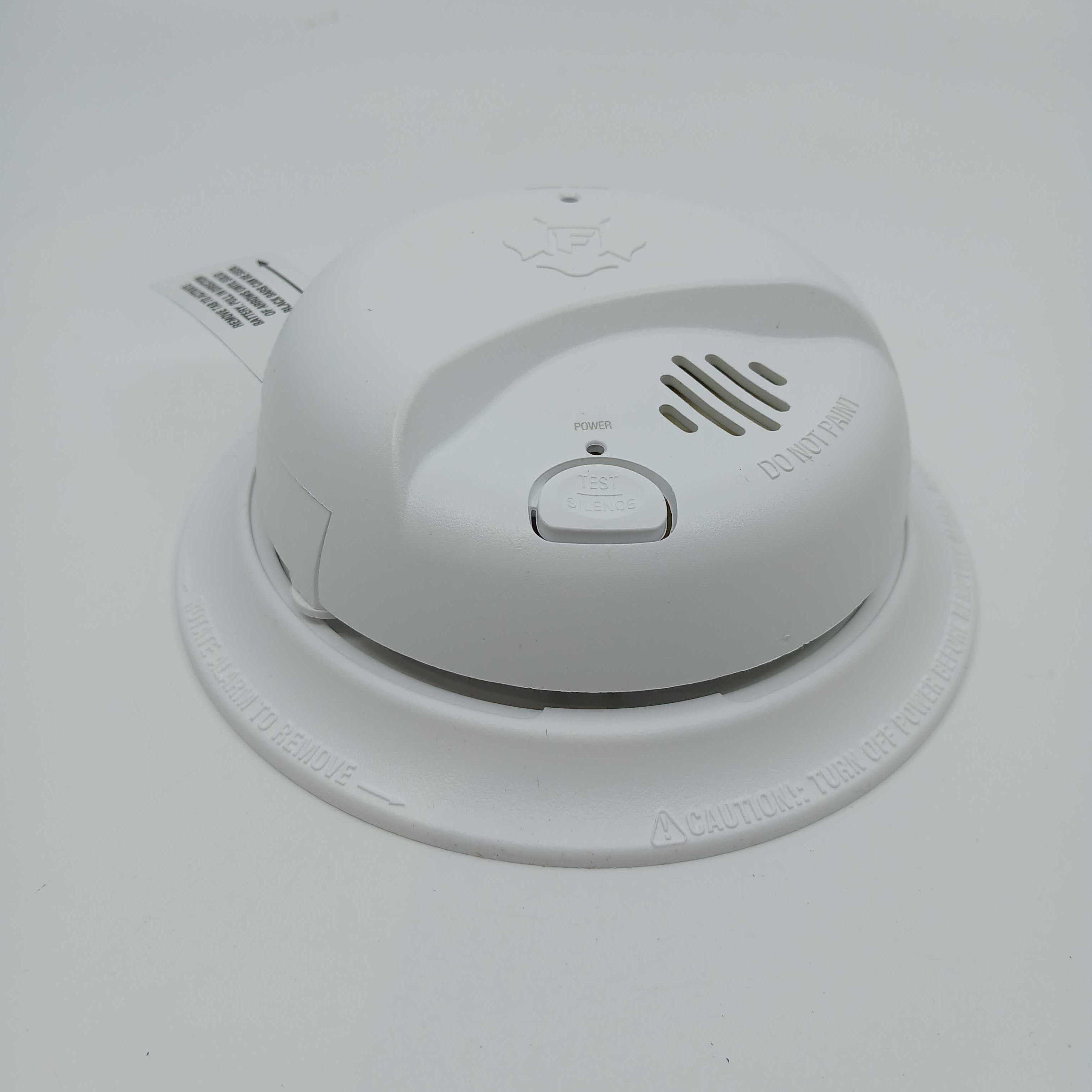

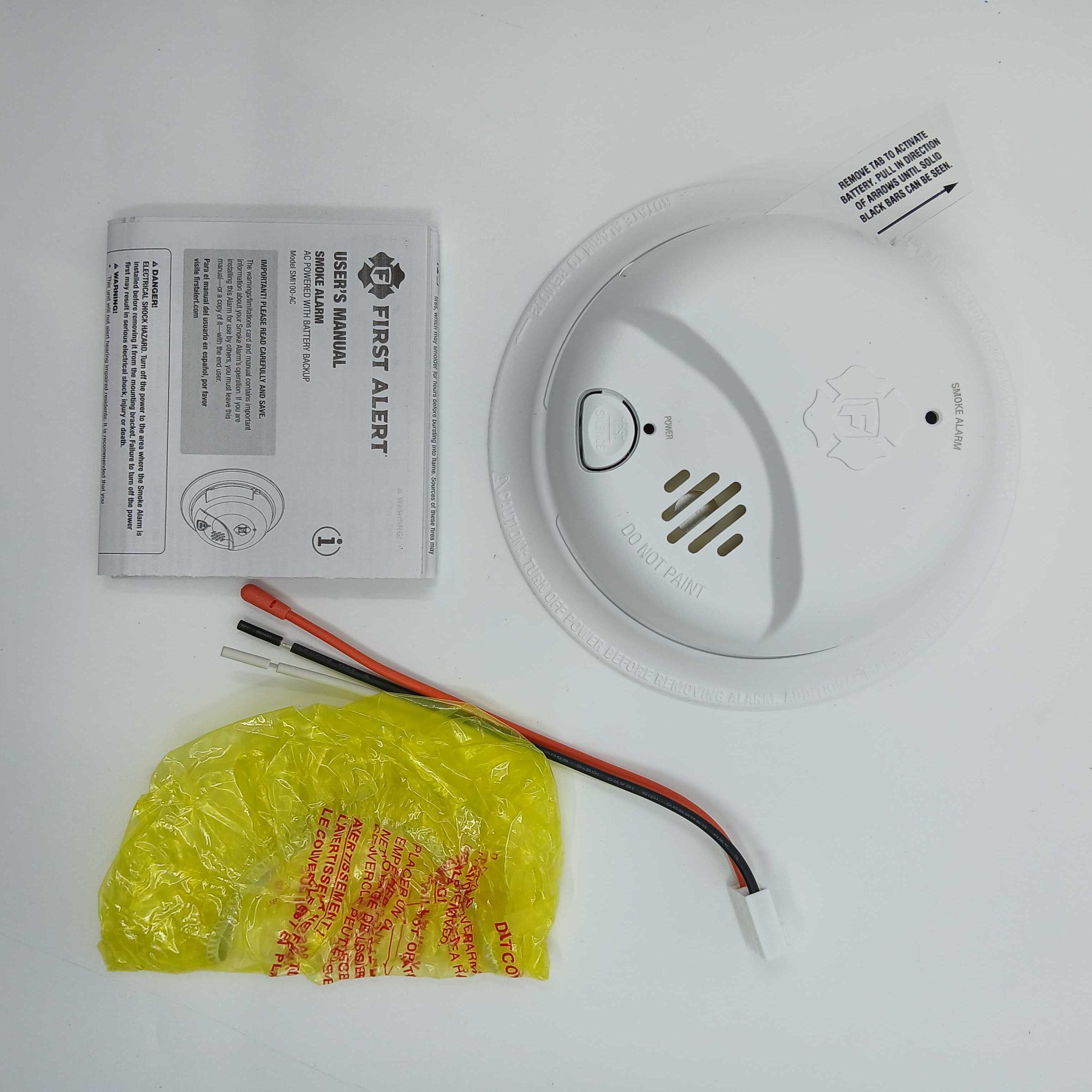

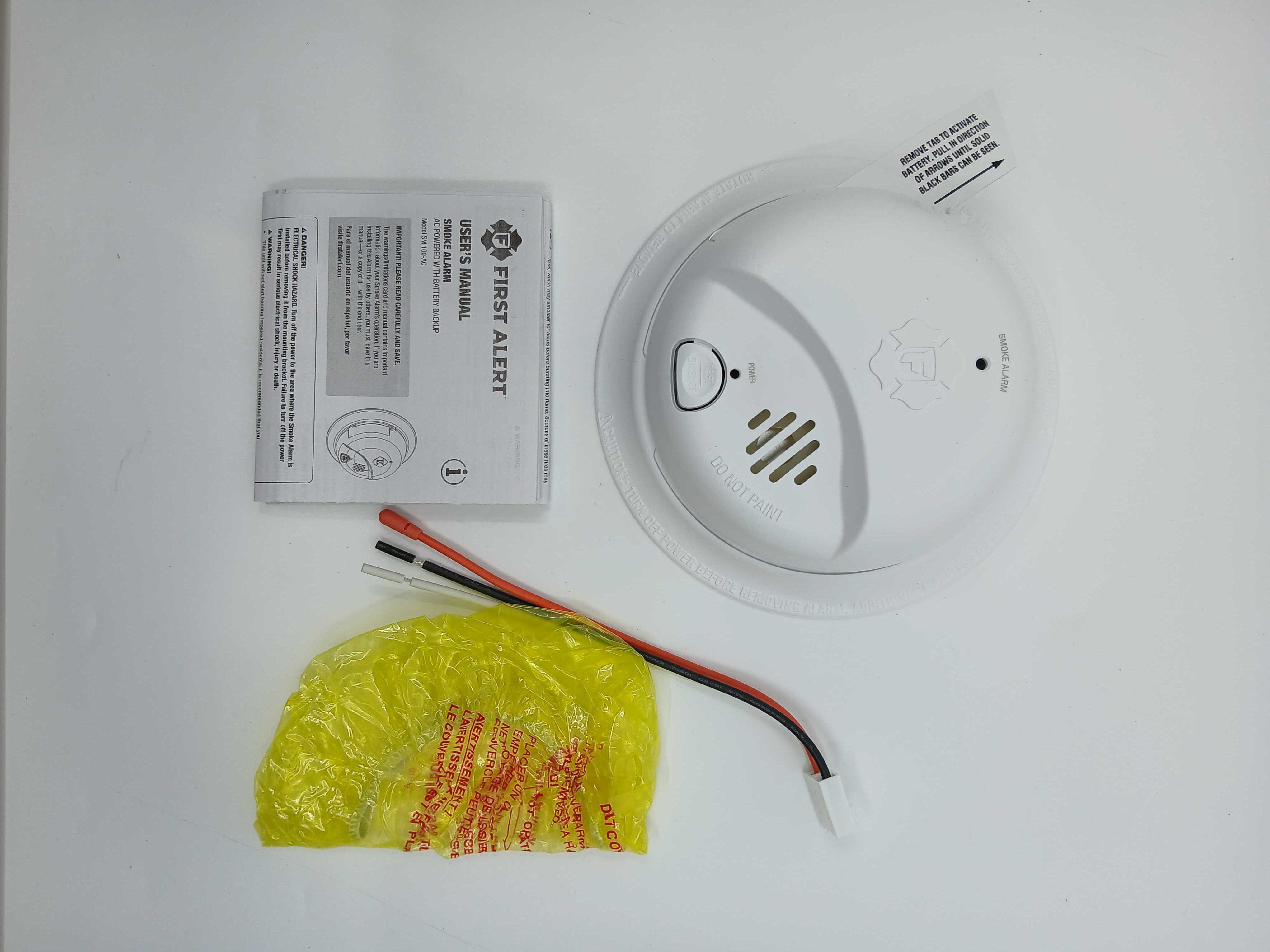

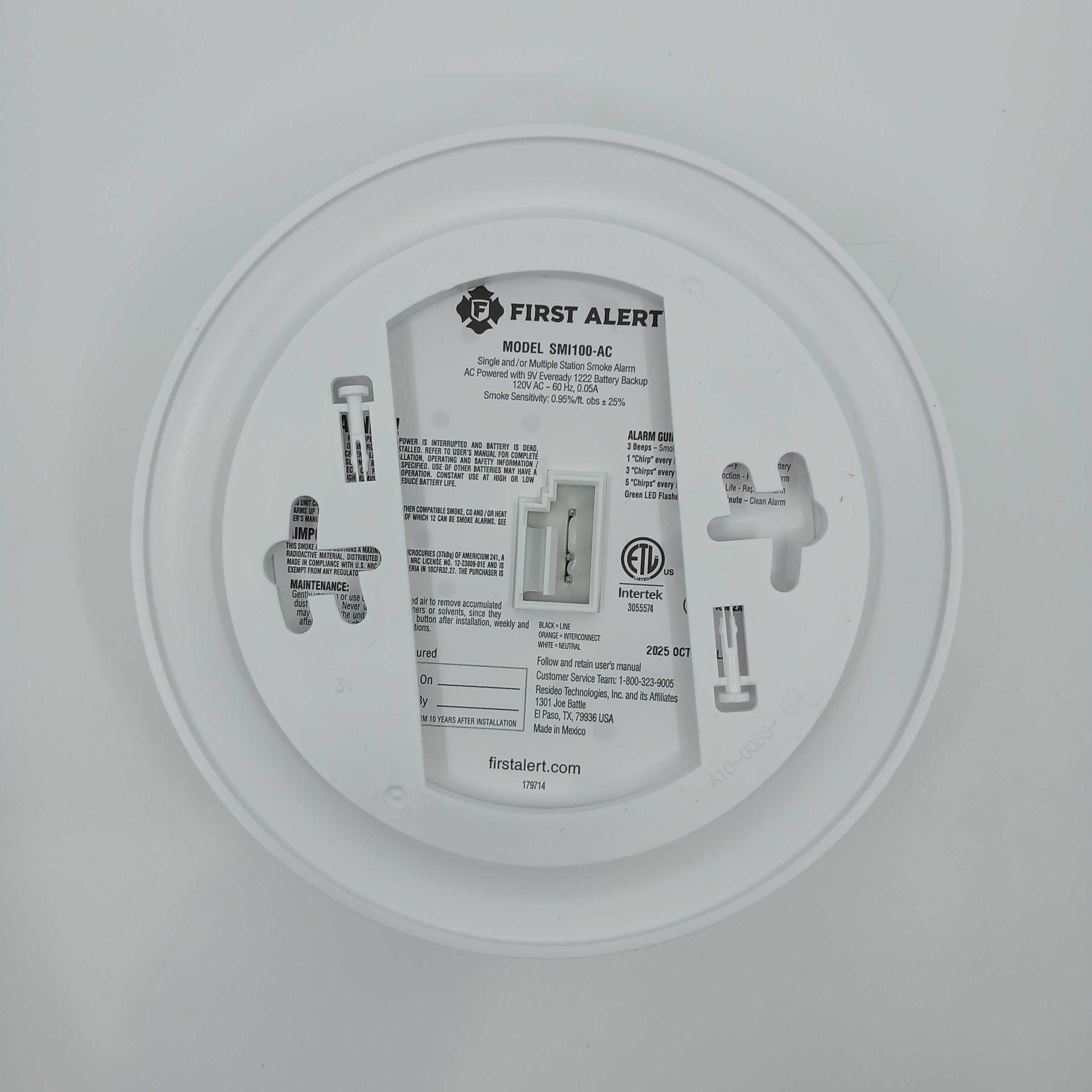

The alarm wires to the household circuit with a plug-in power connector: black for hot, white for neutral and orange for interconnect. Latching indicators show which alarm in a series initiated an alarm or has a low battery, and a single Test/Silence button handles testing and silencing.
Specifications
| Power |
120 VAC, 60 Hz, 24-hour circuit (pure sine wave) |
| Battery backup |
One 9 V battery (e.g. Duracell MN1604) |
| Interconnect |
Up to 18 compatible units, max. 12 smoke alarms |
| Interconnect wiring |
Less than 1,000 ft total; same fuse or breaker |
| Wiring |
Black hot, white neutral, orange interconnect |
| Service life |
Replace 10 years after installation; end-of-life signal |
| Standard |
UL 217 |
| Application |
Single-family residences; not for marine or RV use |
Features

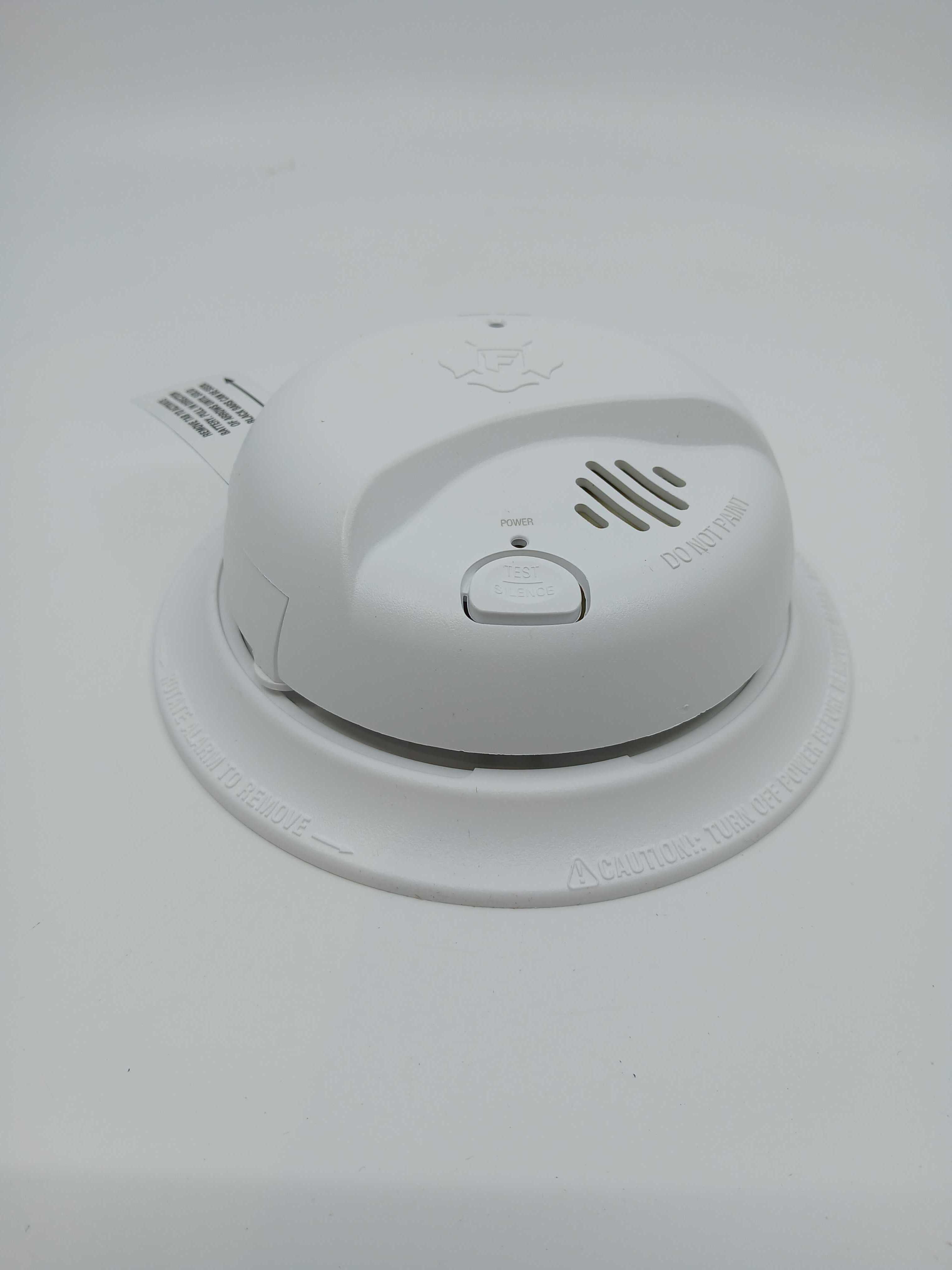

- Mounting bracket installs on the junction box, then the alarm twists on
- Battery backup keeps the alarm working during power outages
- Latching alarm and low battery indicators
- Test/Silence button; low battery chirp can be silenced for up to 8 hours
- Optional battery drawer lock and alarm lock
- Can be connected to an arc fault circuit interrupter, but not a GFCI, switch or dimmer
Related models
-
SMI105-AC — hardwired smoke alarm in the same family, compatible for interconnect.
-
SMICO100-AC — hardwired combination smoke and CO alarm, compatible for interconnect.
-
RM4 — BRK relay module, compatible for interconnect.
Documents
FAQ
Which alarms can the SMI100-AC interconnect with?
It is compatible with First Alert models including SMI105-AC, SMICO100-AC, SMICO105-AC, SM100V-AC and SA520, BRK smoke alarms such as 9120B and 7010B, the HD6135FB heat alarm and the RM4 relay module.
How many alarms can be interconnected?
A maximum of 18 compatible units, no more than 12 of them smoke alarms, on the same fuse or breaker with less than 1,000 ft of interconnect wire.
What battery does it use?
One standard 9 V battery; acceptable replacements include Duracell MN1604 and Energizer 522.
Is the SMI100-AC still available?
It is discontinued; the replacement on this store is the First Alert SM6W01.
