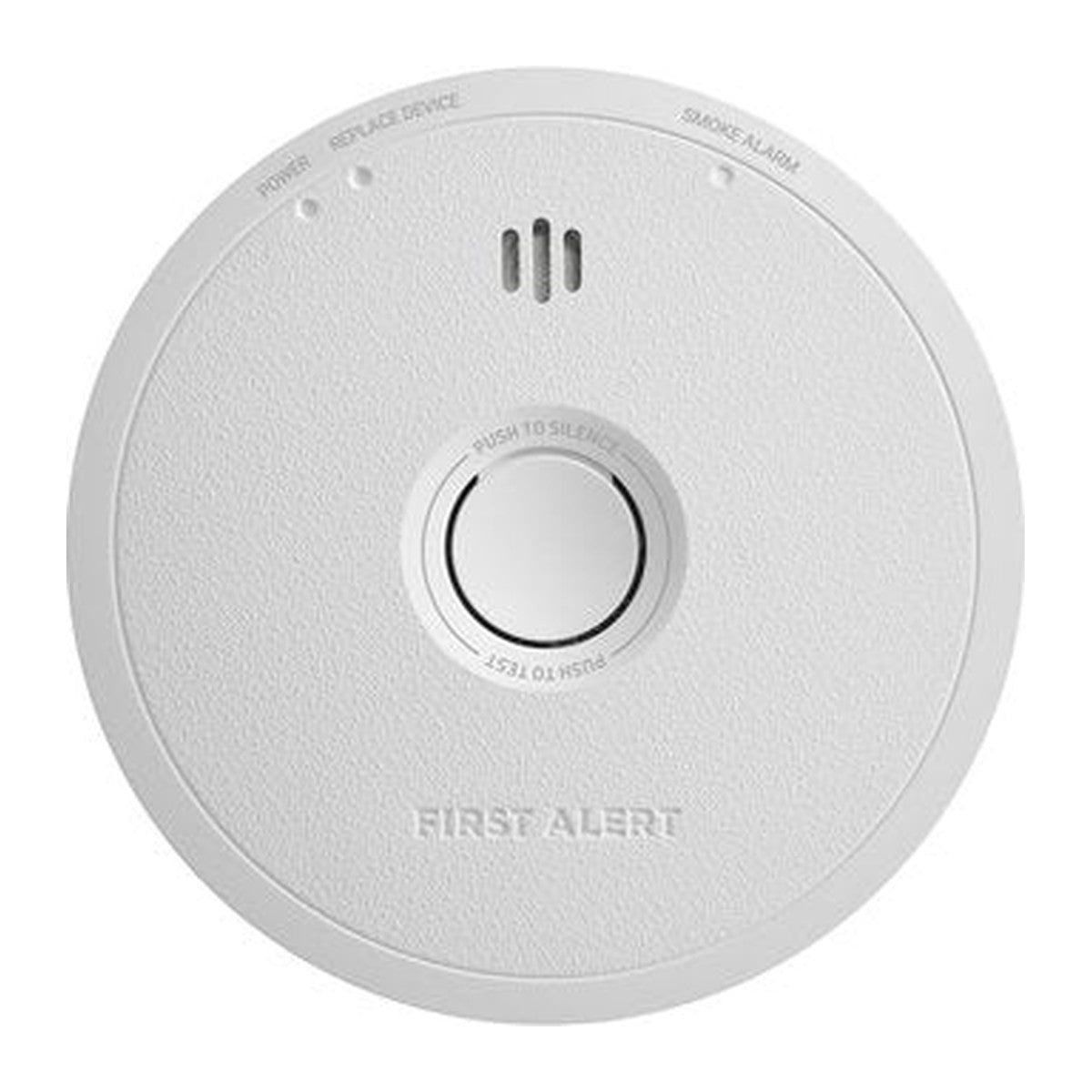

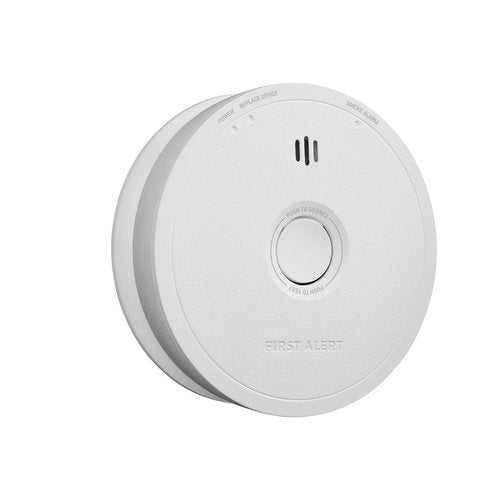

The BRK SM6W10 is a hardwired photoelectric smoke alarm with a sealed 10-year battery backup. It conforms to UL 217 and works with BRK connected safety systems, including the SC5 Smart Smoke & CO Alarm. Contractors and property managers can use it for residential installs and as a direct replacement for older hardwired alarms.
Replaces: BRK SMI105-AC (discontinued). The SM6W10 is the current BRK / First Alert model for these alarms.
Key Features
- Hardwired smoke alarm with photoelectric sensing
- Sealed 10-year battery backup
- No battery replacements for the life of the alarm
- Conforms to UL 217
- 85 dB horn at 10 feet

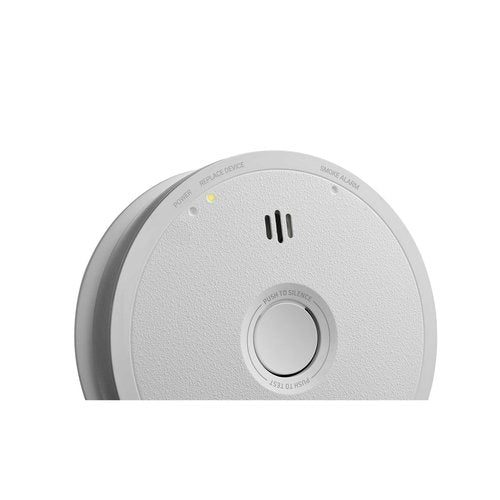

- SoftCue reminders and LED status indicators

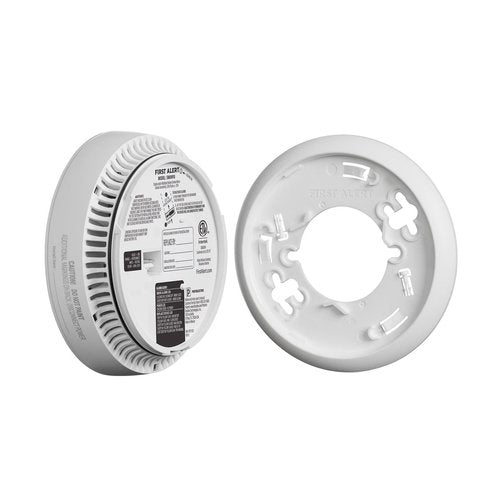

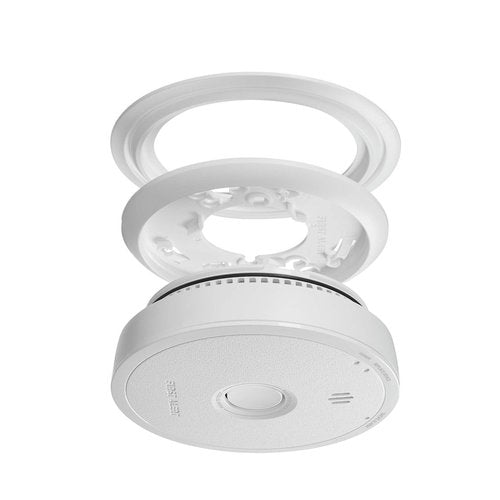

- Standardized mounting bracket and optional trim ring

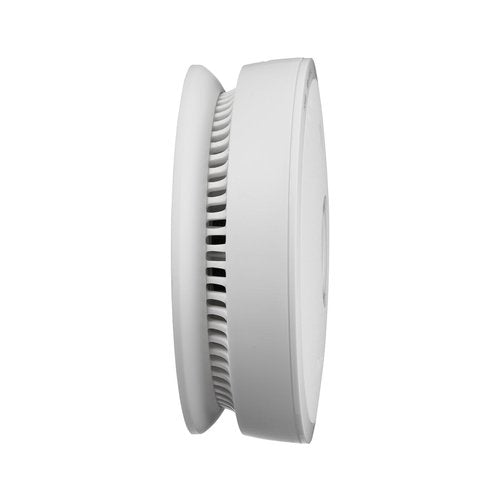

- 5.2 in diameter, 1.76 in high, white
Specifications
| Type |
Smoke Alarm |
| Sensor Type |
Photoelectric |
| Power Source |
Hardwired |
| Sound Level |
Meets or exceeds current UL standards of 85 dB at 10 feet (3 meters) |
| Height |
1.76 in |
| Length |
5.2 in |
| Width |
5.2 in |
| Weight |
0.43 lb; 195.04 g |
| Color |
White |
| Standards |
Conforms to UL 217 |
| Replaces |
SMI110-AC; SMI105-AC; SM110V-AC |
Documents
FAQ
What does the BRK SM6W10 replace?
BRK gives the SM6W10 as the replacement for the SMI110-AC, SMI105-AC and SM110V-AC hardwired smoke alarms.
Does the SM6W10 need battery changes?
No. Its backup is a sealed 10-year battery, so no battery replacements are needed for the life of the alarm.
Does the SM6W10 work with connected alarms?
It is compatible with BRK connected safety systems, including the SC5 Smart Smoke & CO Alarm.
