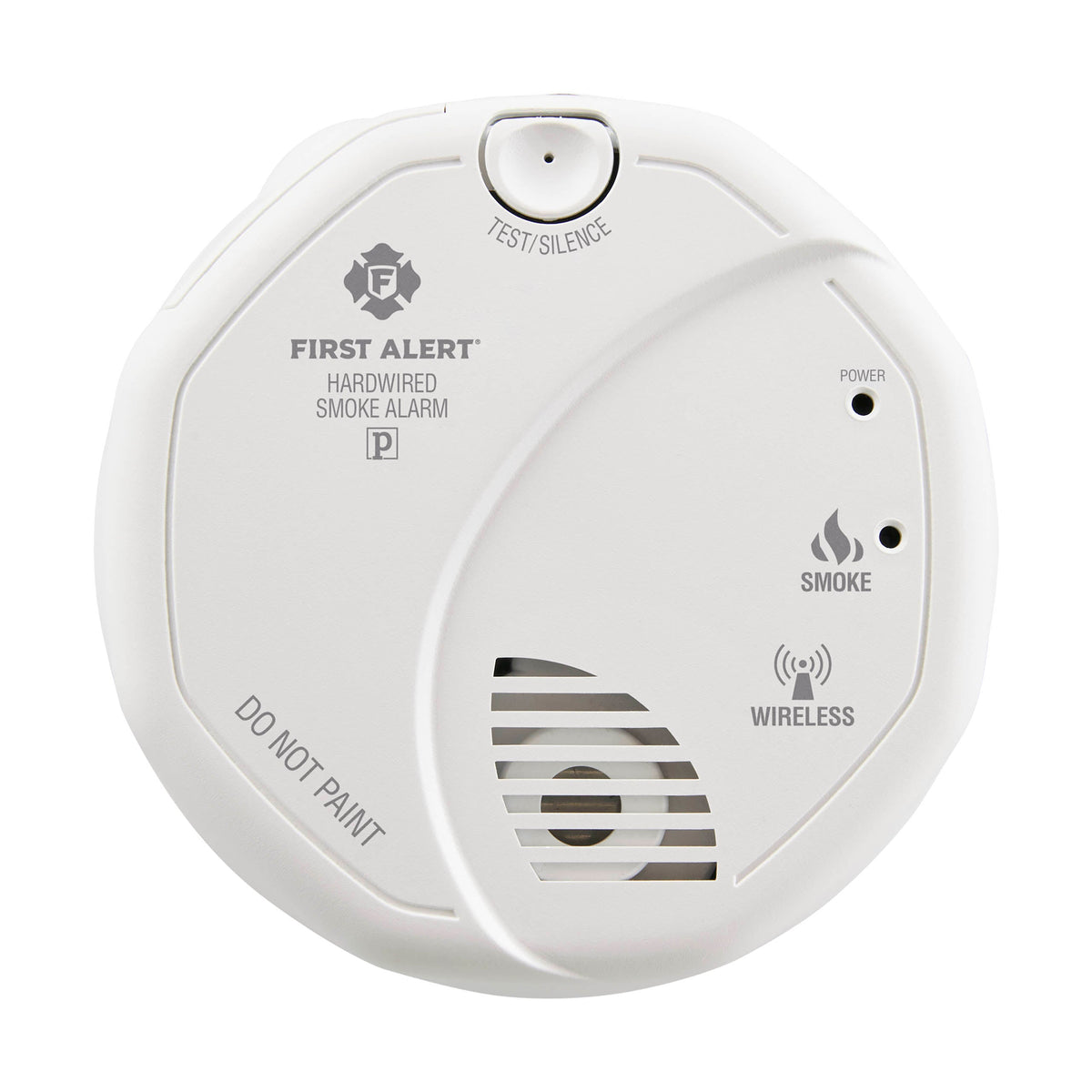

The BRK SA520 is a hardwired photoelectric smoke alarm that also serves as a wireless interconnect bridge unit. It runs on 120V AC with two AA alkaline backup batteries and includes a hardwire adaptor plug. Contractors and property managers use it to link a hardwired alarm system by hardwire or wireless interconnection.
Key Features
- Photoelectric smoke sensor
- Hardwired 120V AC with battery backup
- Two AA alkaline batteries for backup
- Wireless interconnect bridge unit
- Hardwire interconnectivity supported
- Hardwire adaptor plug included
- UL 217 certified
- End-of-life warning and silence feature
Specifications
| Type |
Smoke Alarm |
| Sensor Type |
Photoelectric |
| Power Source |
Hardwired |
| Operating Voltage |
120V AC wbattery backup (Two 1.5V AA Batteries) |
| Battery Type |
Alkaline |
| Number of Batteries |
2 |
| Battery Backup |
Yes |
| Backup Battery Size |
AA |
| Wireless Interconnectivity |
Yes |
| Sound Level |
85dB at 10 feet |
| Ambient Operating Temperature (Min) |
40 °F; 4 °C |
| Ambient Operating Temperature (Max) |
100 °F; 38 °C |
| Operating Relative Humidity (Min) |
10% (RH) |
| Operating Relative Humidity (Max) |
95% (RH) |
| Height |
5.21 in |
| Length |
2.33 in |
| Width |
5.25 in |
| Weight |
0.7 lb |
| Color |
White |
| Includes |
Hardwire Adaptor Plug |
| Standards |
certified to UL217 Standard |
| Warranty |
10 Years Limited |
Documents
FAQ
What backup battery does the SA520 use?
It uses two 1.5V AA alkaline batteries for backup. The page text notes two AA alkaline batteries are included.
How does the SA520 interconnect?
It supports both hardwire interconnection and wireless interconnection, and it acts as a bridge unit.
What is included with the SA520?
A hardwire adaptor plug is included, and the manufacturer page also lists two AA alkaline batteries.
