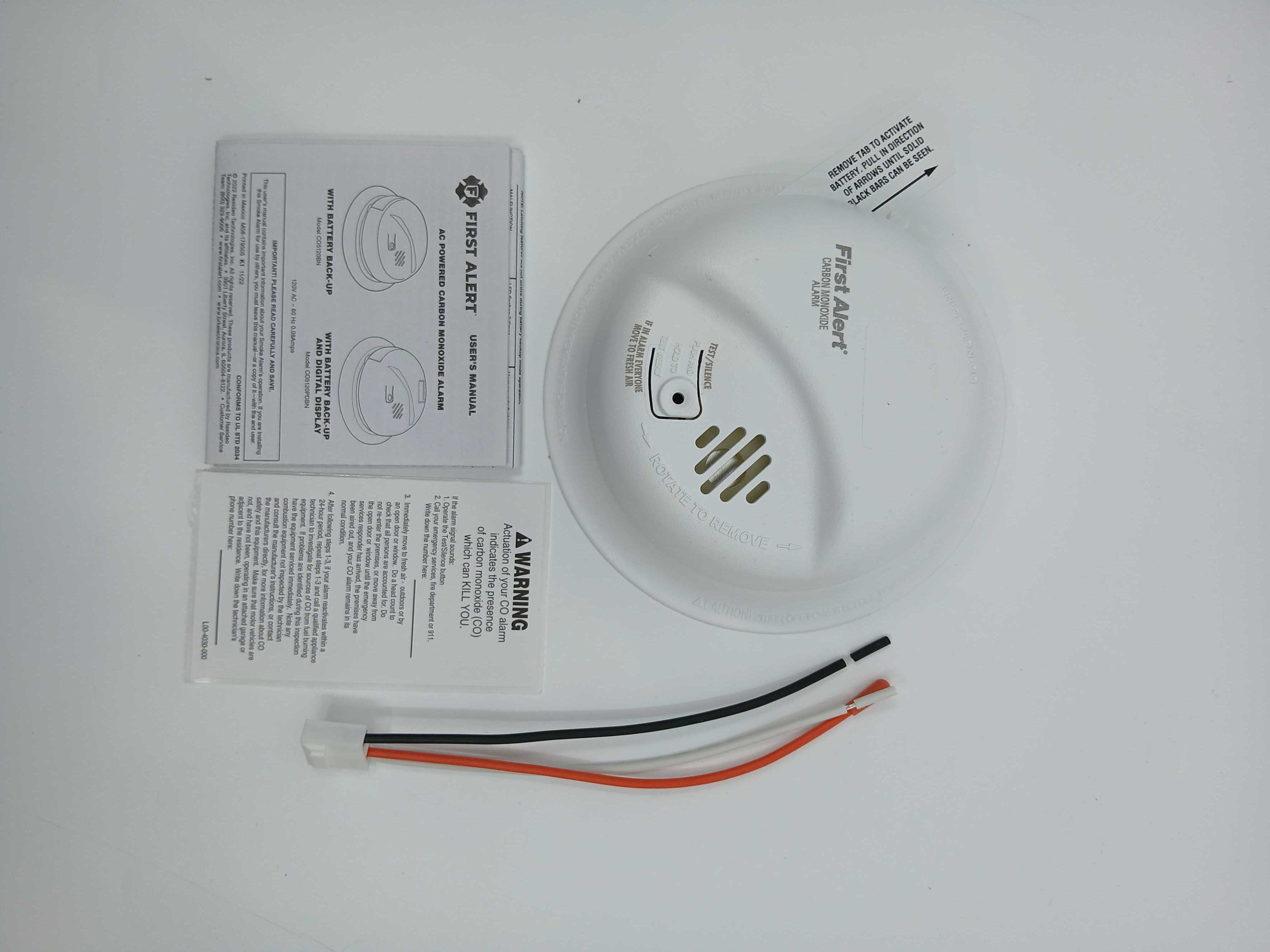

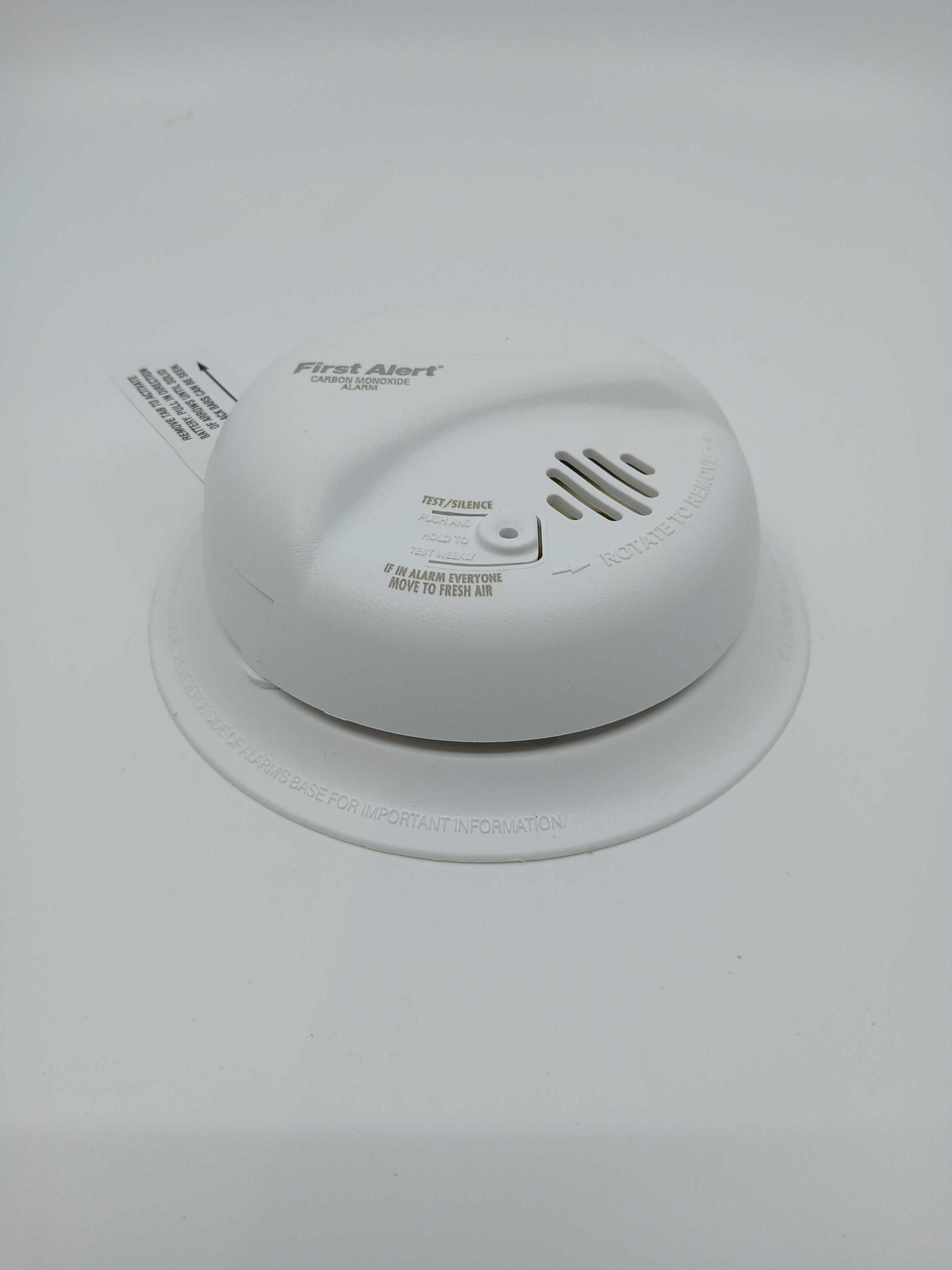

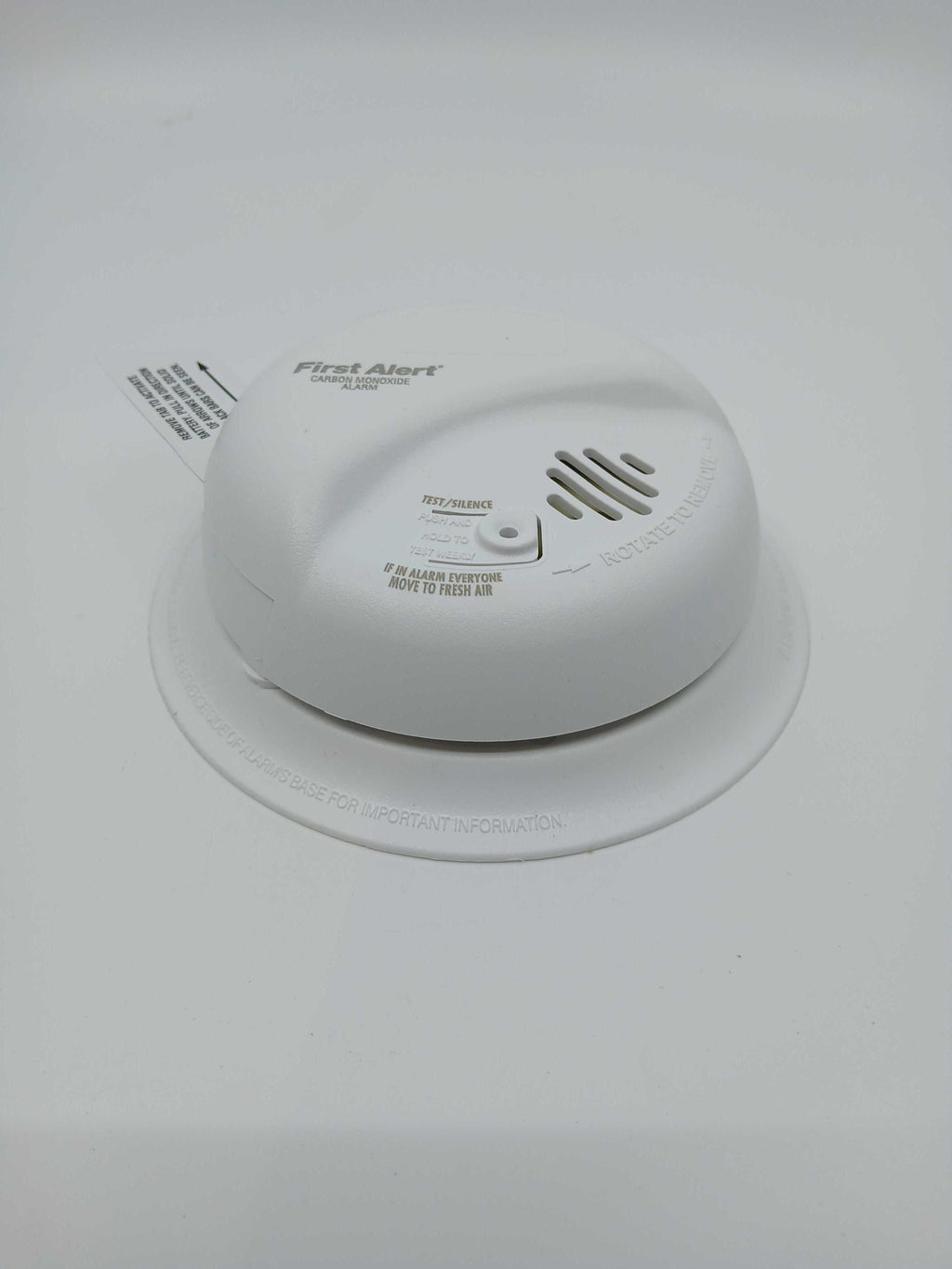

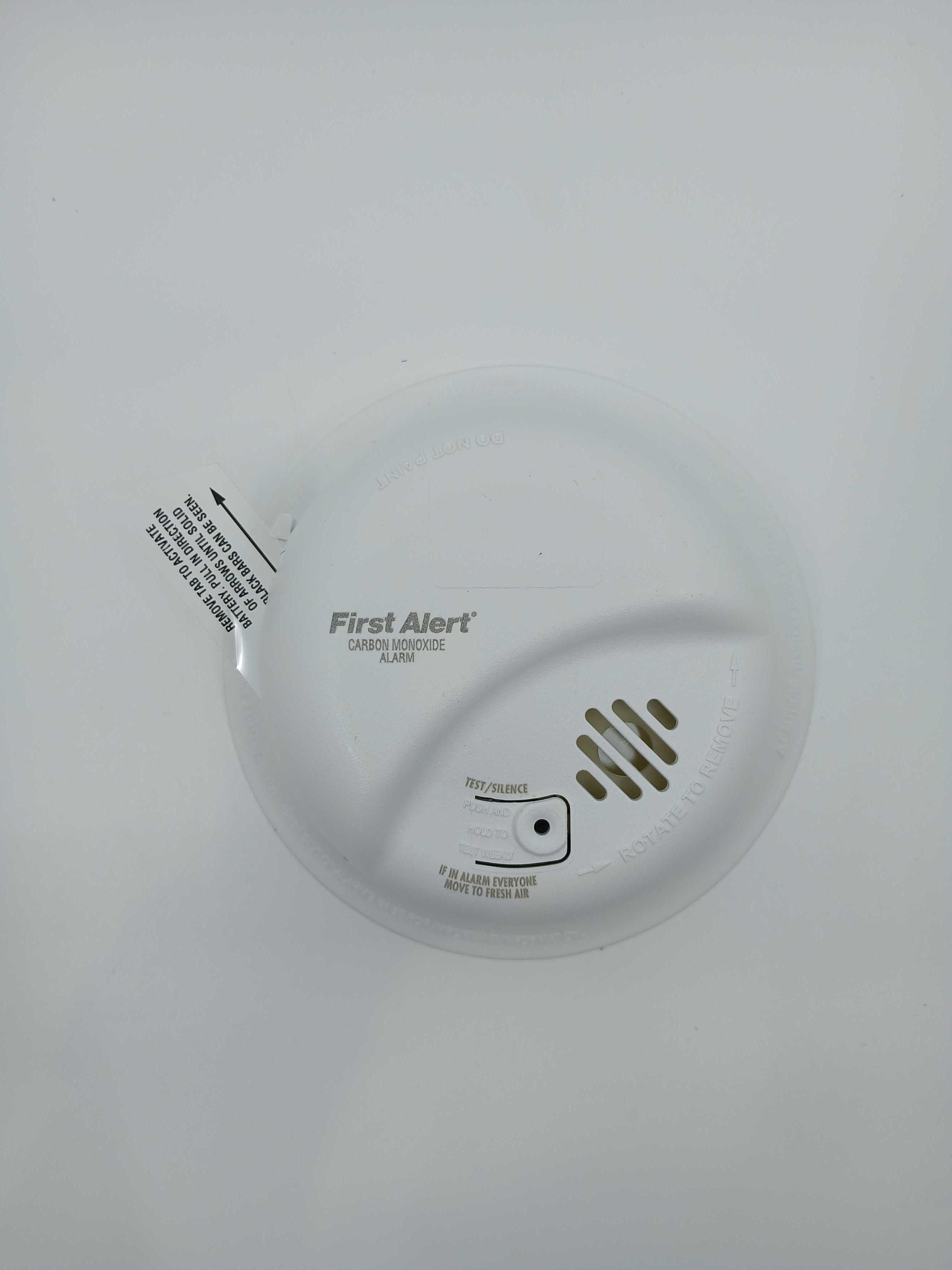

BRK CO5120BN Hardwired interconnectable CO Alarm w/replaceable battery backup 120V AC, 60Hz Wire-in with 9V Battery Backup
SKU: CO5120BN
Hardwired CO Alarm with replaceable battery backup. AC 120V Interconnectable with Silence and Latching features. Includes 9V alkaline battery.
- Electrochemical Carbon Monoxide Sensor - the most accurate sensor available as compared to other sensing technologies
- 9V Alkaline Battery Backup
- Latching alarm indicator - remembers which unit initiated an alarm
- Two silence features - can silence the low-battery chirp for up to eight hours or temporarily silence an unwanted nuisance alarm
- Intelligent Sensing TechnologyTM - helps reduce the number of nuisance alarms
- End of Life Signal provides audible notification alarms needs to be replaced
The BRK Brands, Inc. model CO5120BN is a wire-in, 120 VAC 60Hz single and / or multiple station carbon monoxide alarm specifically designed for residential and institutional applications including sleeping rooms of hospitals, hotels, motels, dormitories and other multi-family dwellings as defined in standard NFPA 101.
Model CO5120BN complies with UL2034, NFPA 720, HUD, FHA and other agencies that model their codes after the above agencies. They meet building codes where AC/ DC carbon monoxide alarms are required either separately or in combination. The alarms are interconnectable up to 18 devices, of which 12 can be smoke alarms.
The BRK CO5120BN features an electrochemical carbon monoxide sensor, an 85dB horn, 9V battery back-up, an End of Life and a silence feature. “Intelligent Sensing Technology” is designed to reduce nuisance alarms. “Latching Alarm Indicator” remembers which unit initiated an alarm.
When interconnected in a series, the unit that triggered the alarm will store in memory or “latch” the information and begin to flash the LED indicator 2 seconds on, 2 seconds off. A single button test/silence button eliminates confusion. Battery installation and removal can occur while the unit is mounted to the ceiling or wall via the side load battery compartment.

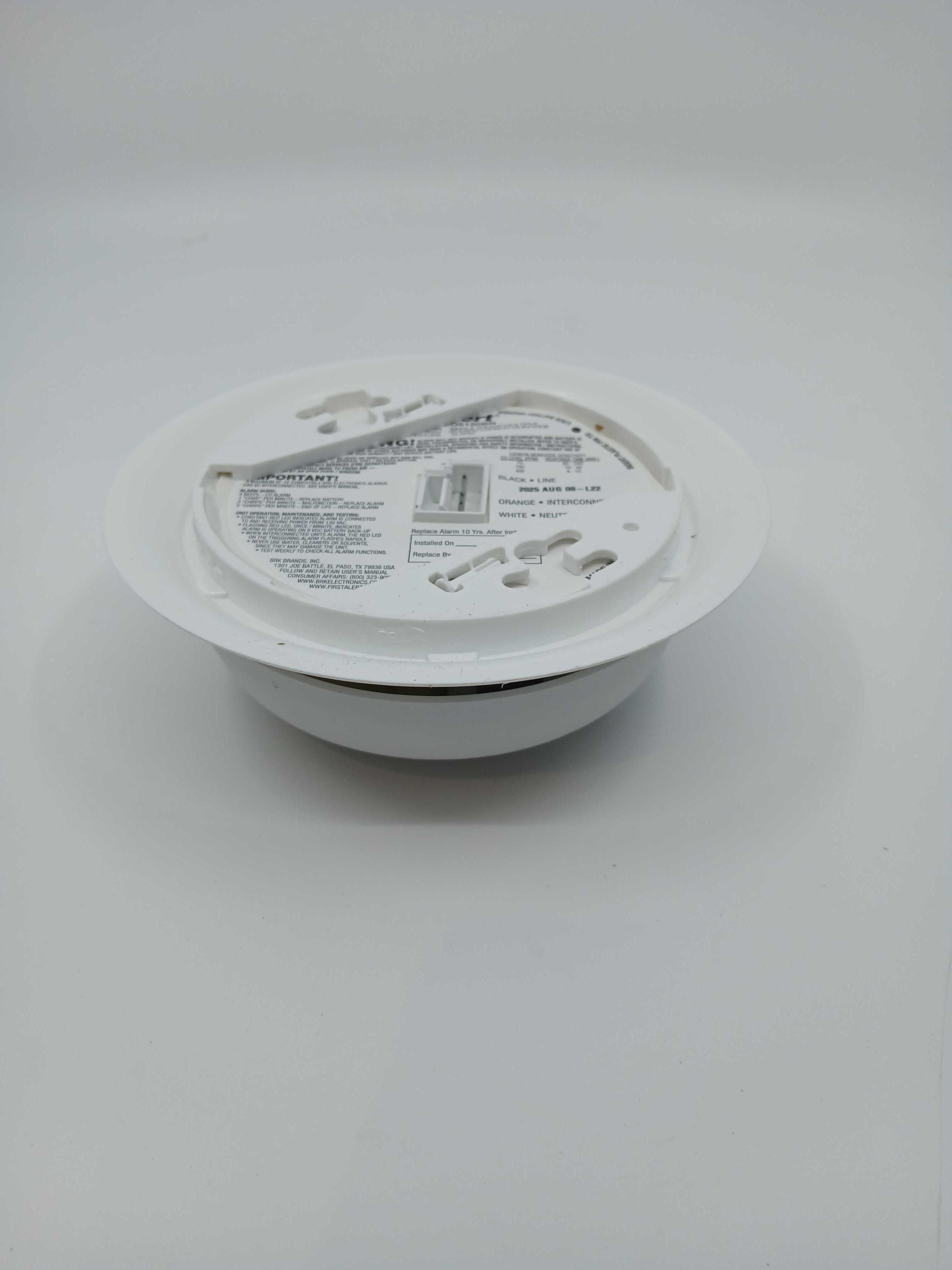

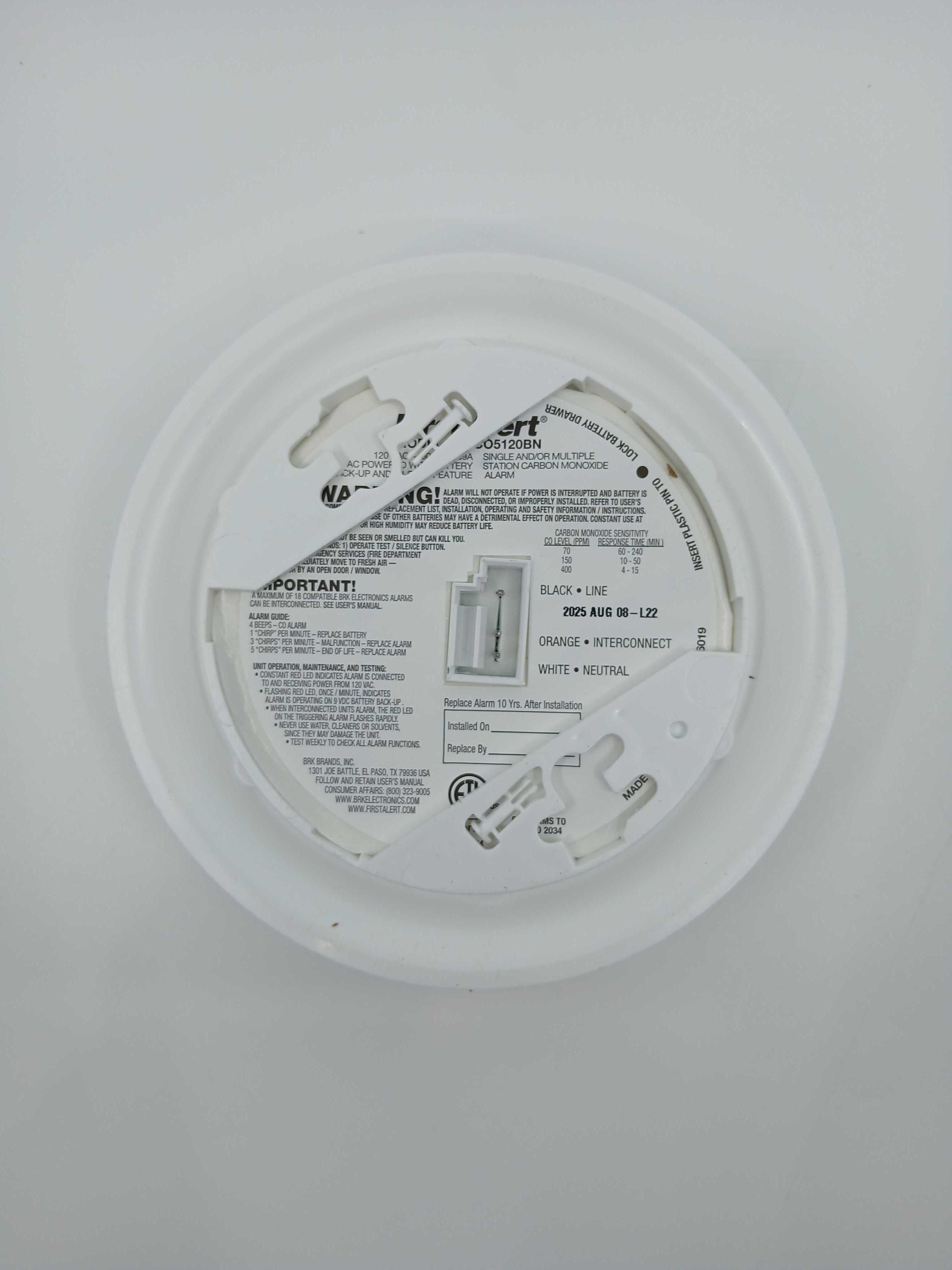

Other Contractor Preferred features include a dust cover to keep alarm clean during construction, keyhole slots in the mounting bracket eliminate the need to remove the electrical box screws for installation.

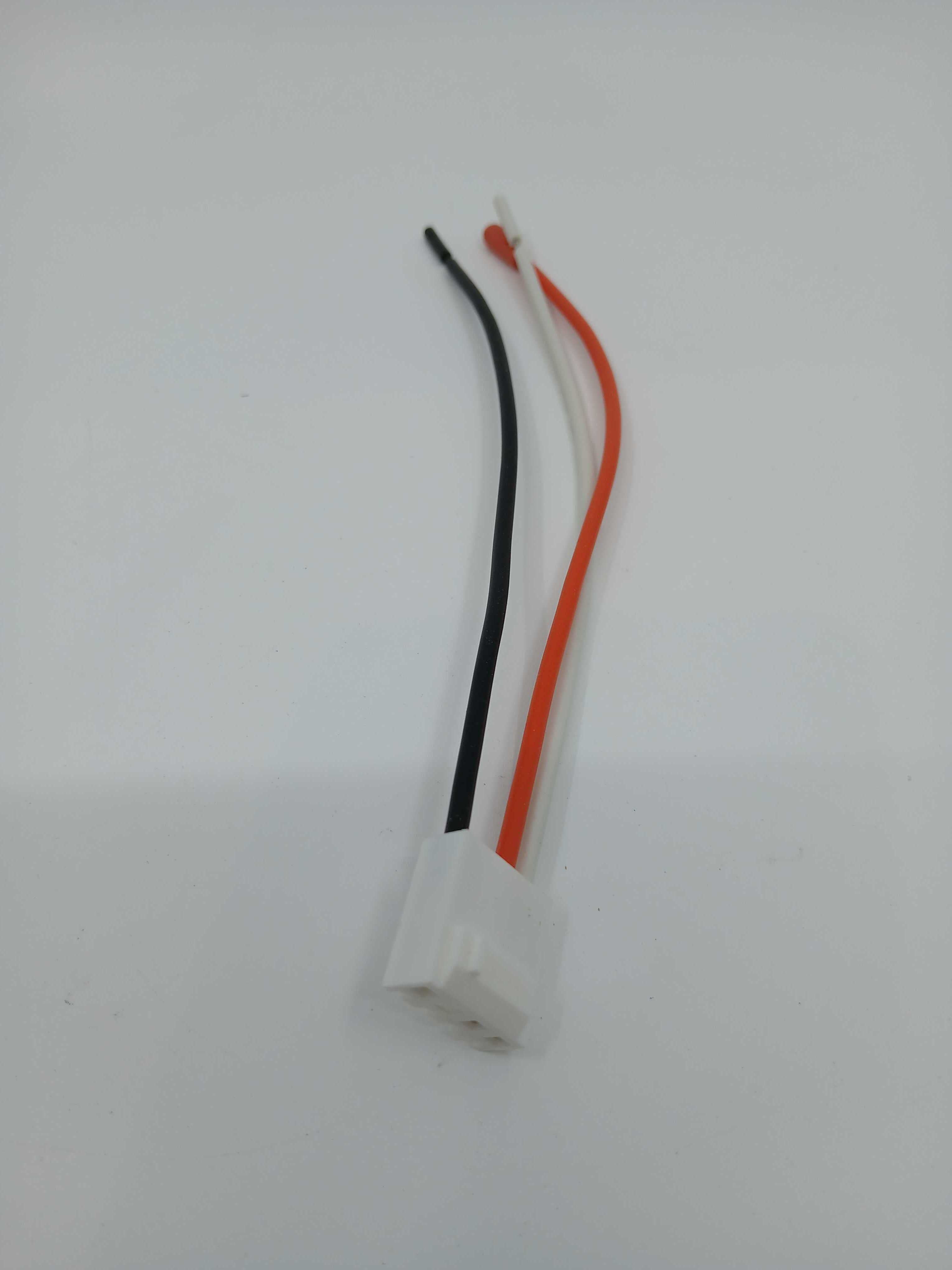

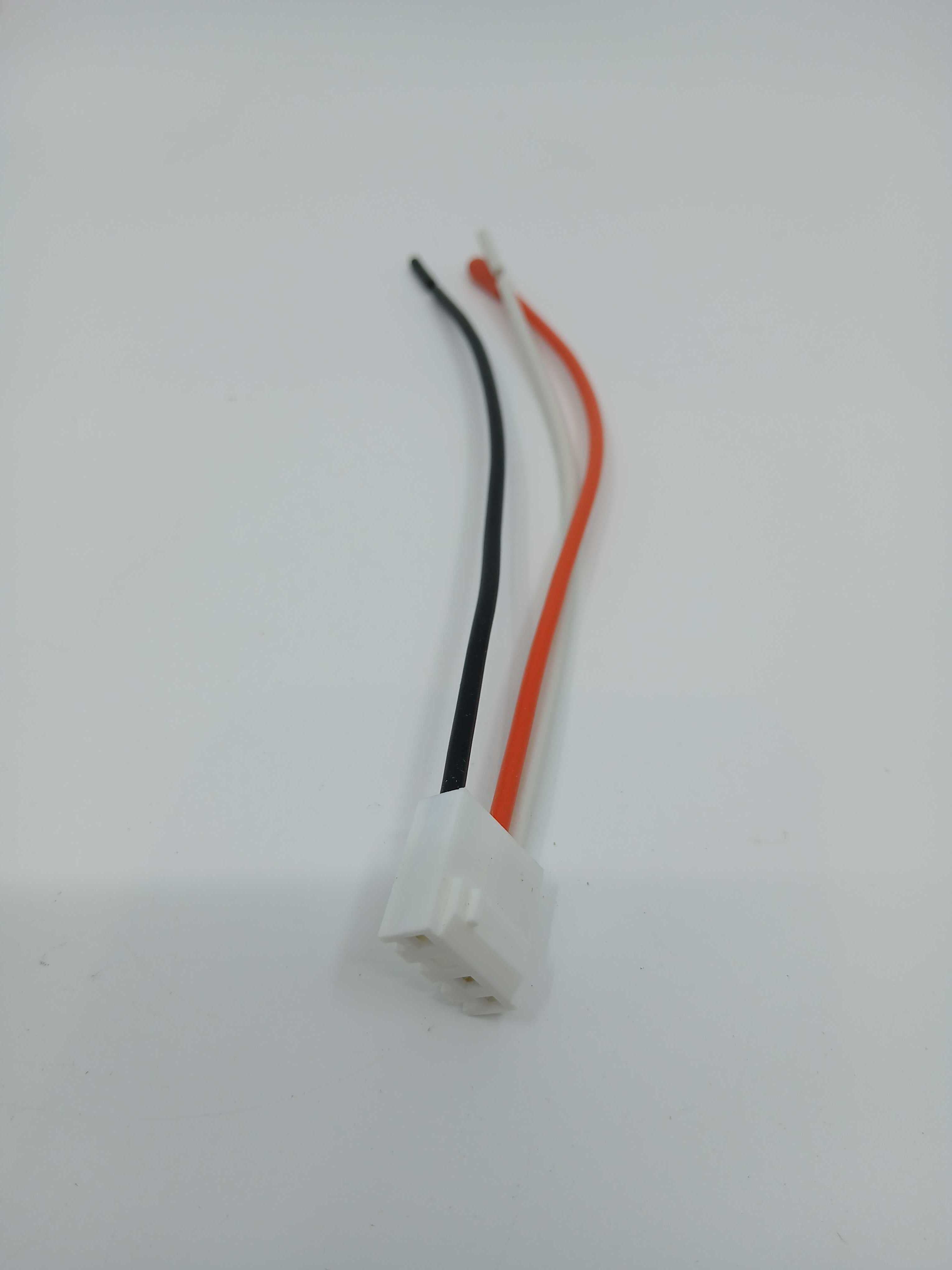

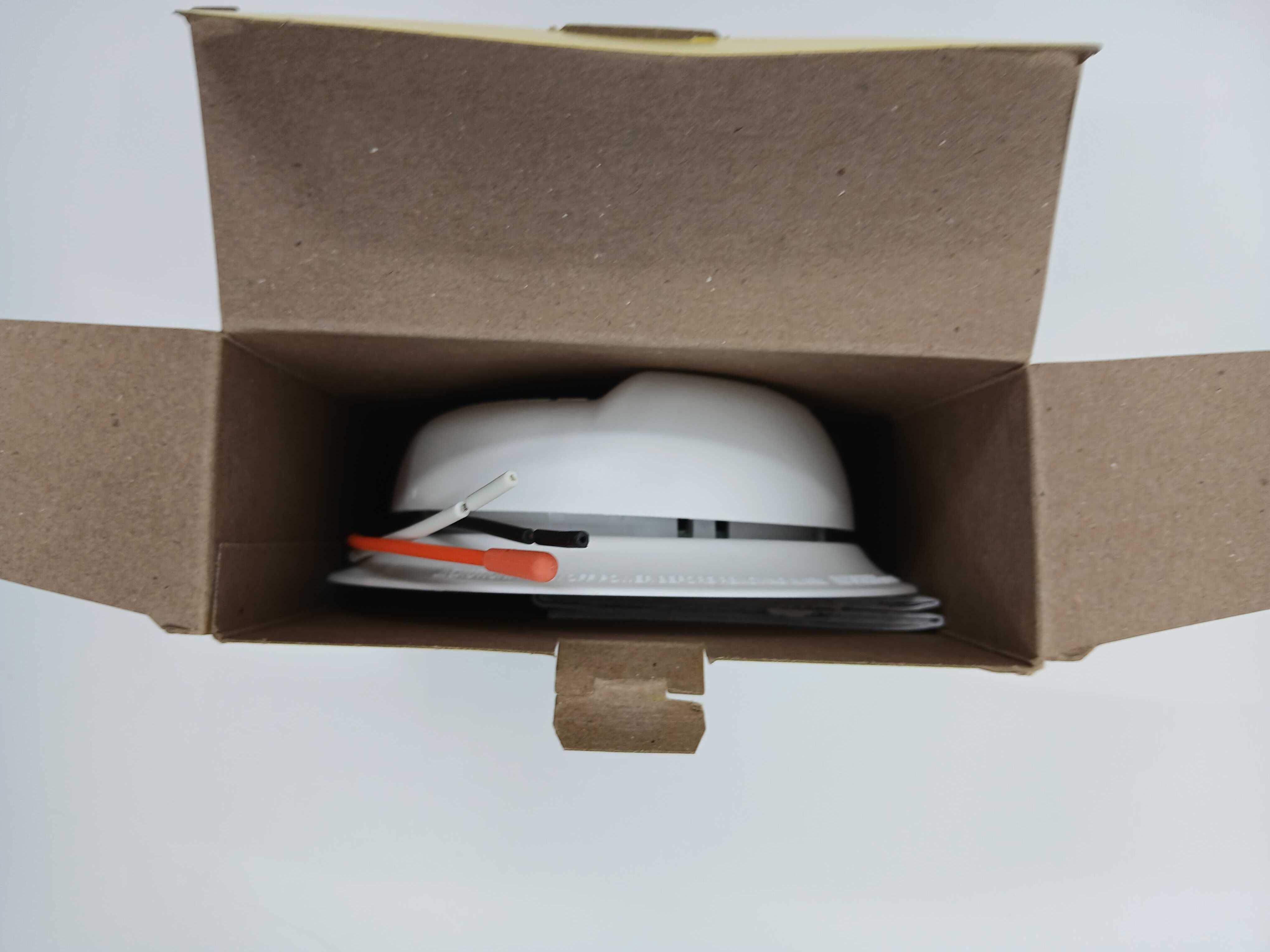

Two locking features are provided to prevent battery theft and/or theft of the unit. Connection to AC power is made with a“Quick-Connect” wiring harness. Installation is quick, easy and cost effective.
Documents
FAQ
How many alarms can be interconnected?
Up to 18 BRK devices can be interconnected, of which no more than 12 can be smoke alarms.
What battery does it use?
One standard 9V alkaline battery as backup. The side-load compartment lets the battery be changed with the alarm mounted.
What does the latching indicator do?
When alarms are interconnected, the unit that started the alarm stores it and flashes its LED 2 seconds on, 2 seconds off, so the source can be found.
What replaces the discontinued CO5120BN?
Our catalog lists the CO6W01 as its replacement.
